4 Description
Your machine is the mower F302 or R302. Both models can be provided with ROPS or a cabin.

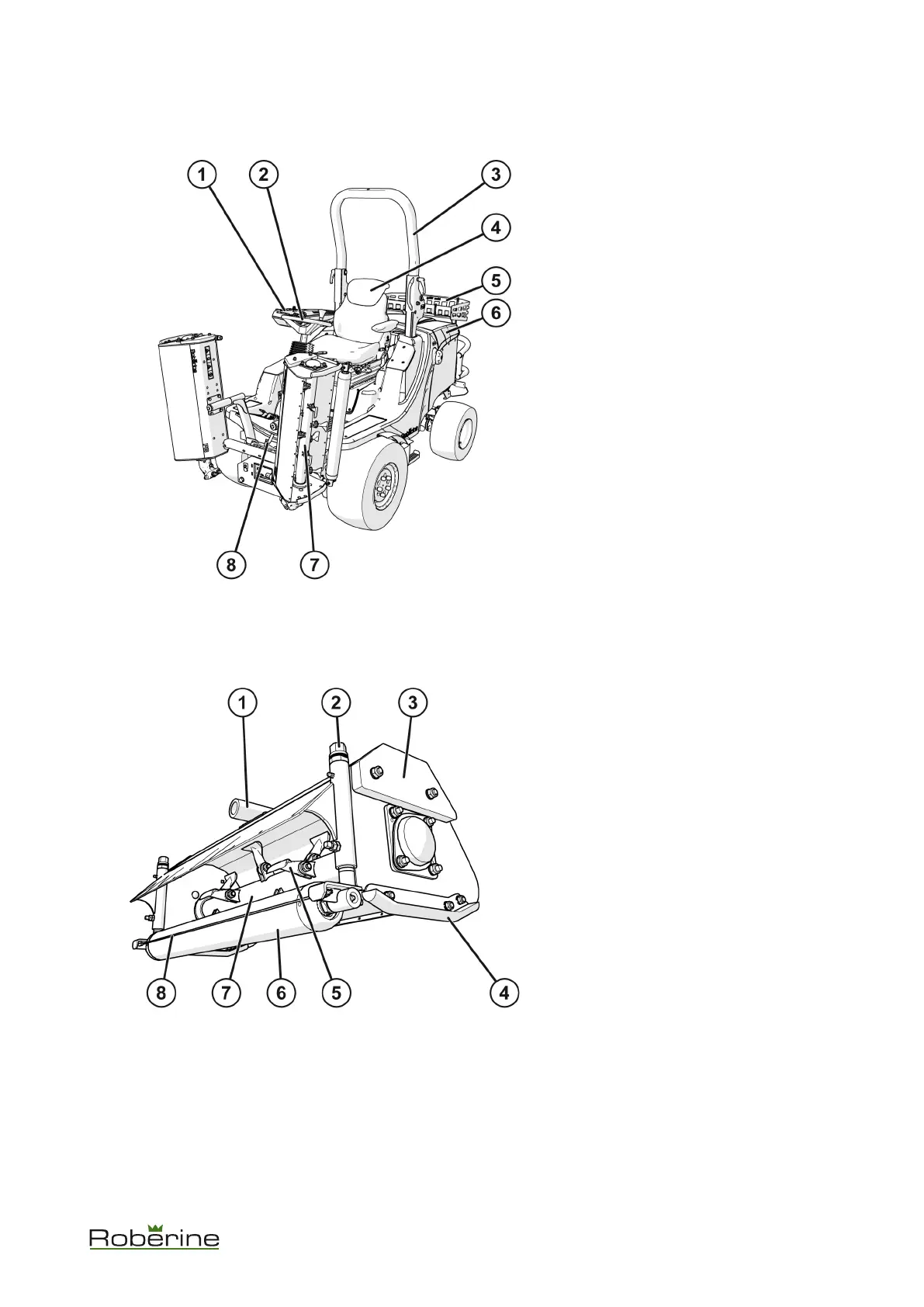

1. Command arm: This is where all the
operating buttons and the display are
located.
2. Steering wheel.
3. ROPS. The Roll Over Protection
Structure prevents entrapment should
the machine roll over.
4. Seat.
5. Cargo carrier (optional / capacity 15 kg).
6. Engine. The engine powers the mower.
7. Mowing units. These are either flail units
(F302) or reel units (R302).
8. Locking lever.
4.1 Equipment
4.1.1 Description flail mower F302
1. Pivot
2. Cutting height adjuster
3. Counter weight
4. Slide shoe
5. Flail
6. Roller
7. Rotor shaft
8. Scraper
Description 16
