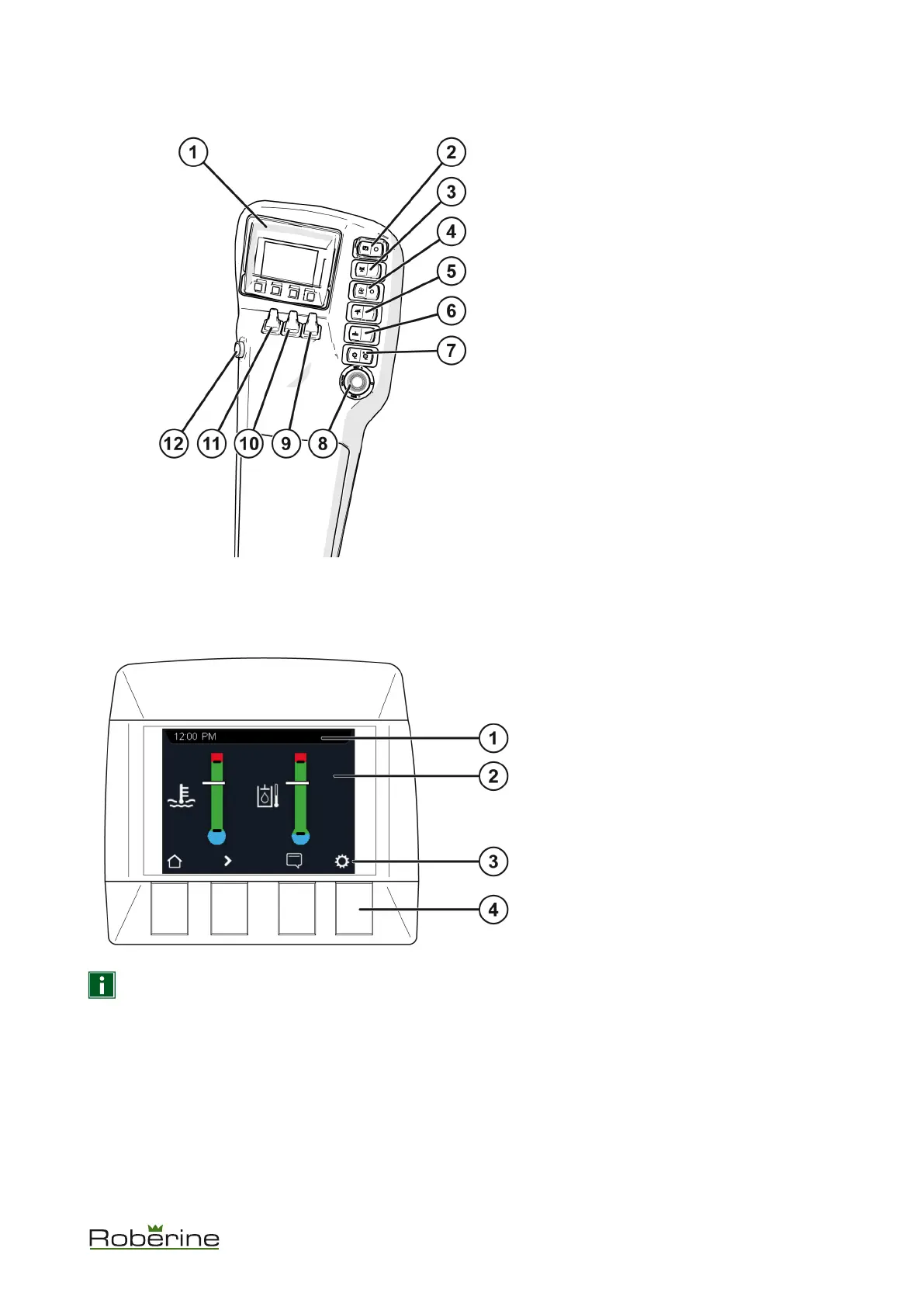

4.5.1 Command arm
1. Display with buttons
2. Parking brake / emergency switch
3. Beacon light (ROPS)
4. Cooler fan reverser
5. Weight transfer
6. Raising/lowering activation switch.
7. Mowing/back lapping switch
8. Cruise control.
9. Raising/lowering right-hand mowing unit.
10. Raising/lowering middle mowing unit.
11. Raising/lowering left-hand mowing unit.
12. Cross-cut button: activates the raising/
lowering function of all mowing units at
the same time.
4.6 Display
Overview of the display functions.
1. Status bar
2. Screen
3. Button functions:
• Home
• Next screen
• Alarms
• Settings
4. Buttons
NOTICE Enter a new screen or press a button to activate the button functions (3) bar. It disappears
automatically after a few seconds.
