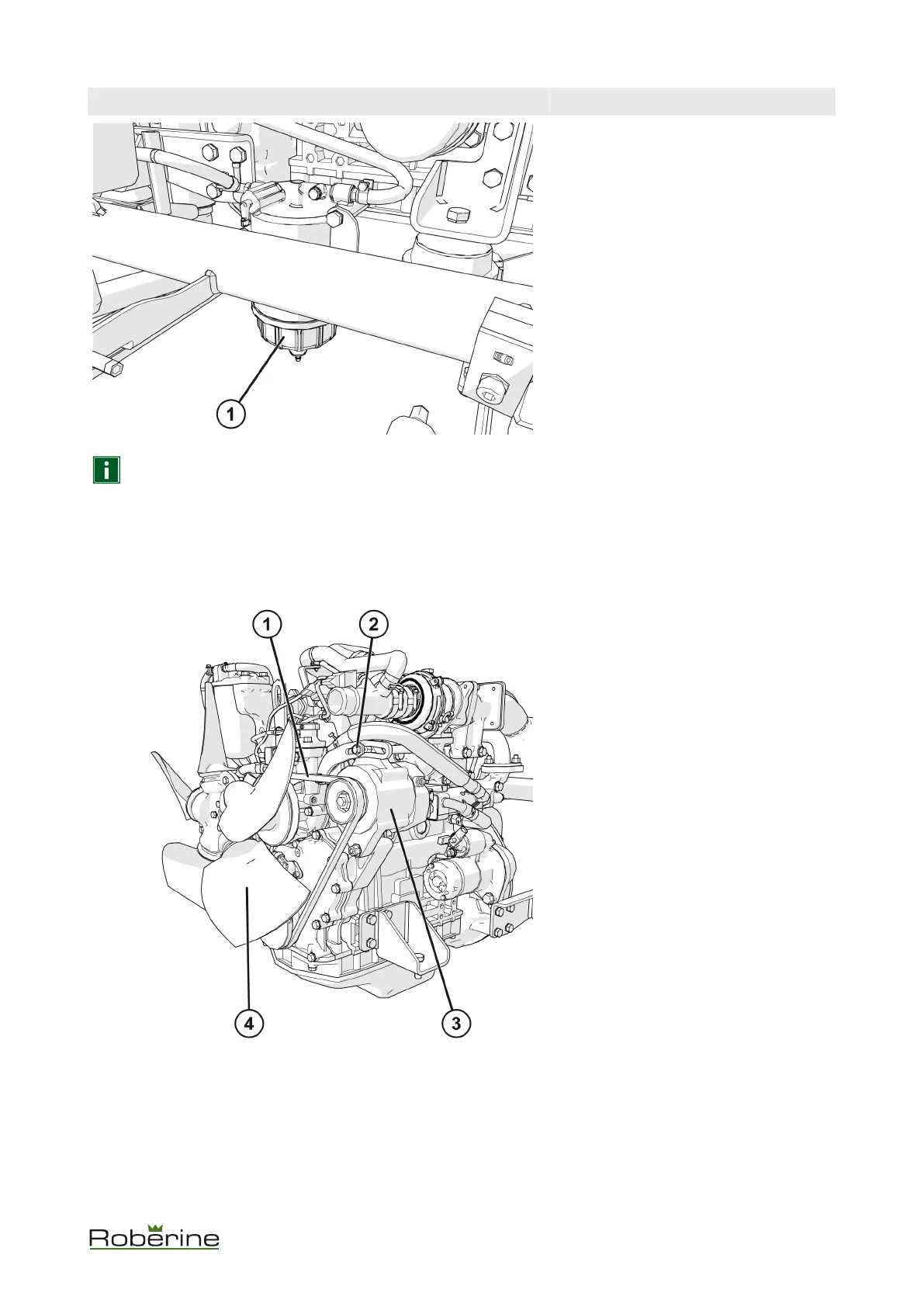

Checking the fuel/water separator
1. Check if there is any water in the fuel/
water separator (1).
The red ring inside will float on water.
2. If necessary, drain the water via the tap
or clean the fuel/water separator and
replace the filter:
a. unscrew the container from its top.
b. replace the filter.
c. screw the top back onto the
container.
3. Close the bonnet.
NOTICE Tightening torque of the fuel/water separator attachment strap: 15-20 Nm.
8.10 V-belt
Inspect the V-belt every 250 hours for wear. For more specified information, see your Yanmar Engine Manual
Before you begin: Park the machine safely and let the engine cool down.
1. V-belt tension
2. V-belt adjuster screw
3. Alternator
4. Fan with Flexxaire unit
1. Open the bonnet.
Maintenance 57
