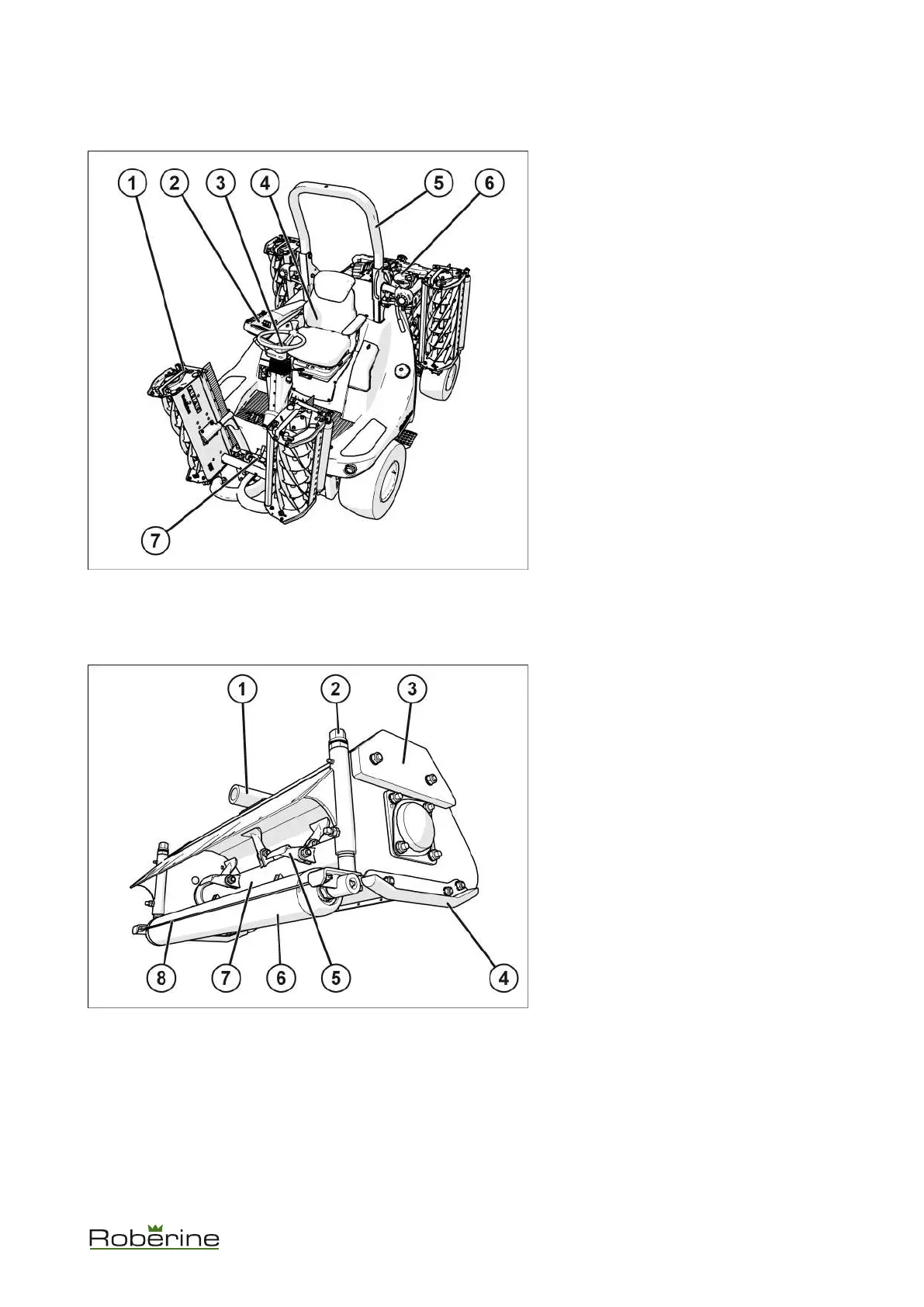

4 Description
Your machine is the mower F5 or R5. Both models can be provided with either an ROPS or a cabin.
1. Mowing units. These are either flail units
(F5) or reel units (R5)
2. Command arm: This is where all the
operating buttons and the display are
located.
3. Steering wheel.
4. Seat.
5. ROPS. The Roll Over Safety Structure
prevents entrapment should the machine
roll over.
6. Engine. The engine powers the mower
7. Locking lever
4.1 Equipment
4.1.1 Description mower F5
1. Pivot
2. Cutting height adjuster
3. Counter weight
4. Slide shoe
5. Flail
6. Roller
7. Rotor shaft
8. Scraper
Description 15
