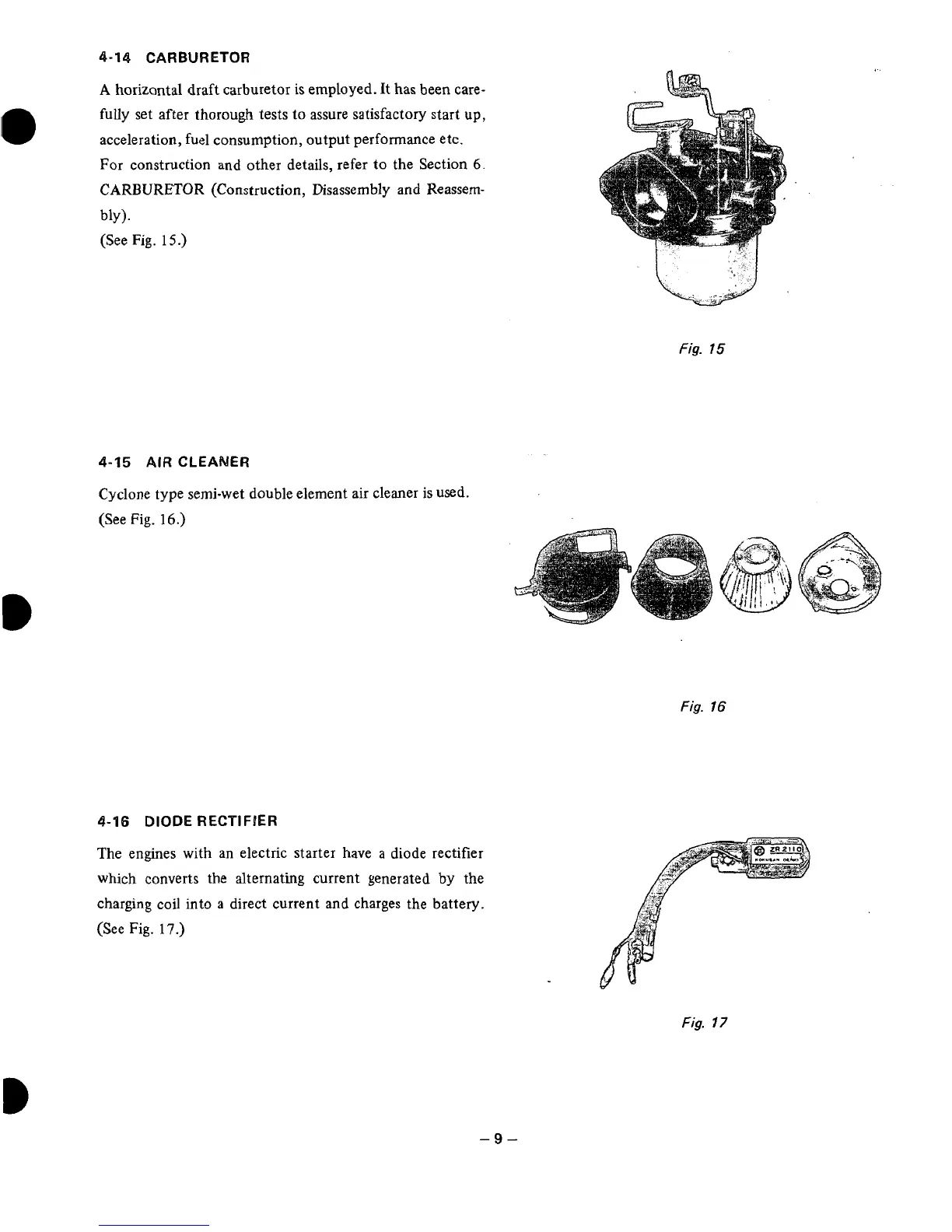

4-14
CARBURETOR
A
horizontal draft carburetor is employed.
It
has been care-
fully set after
thorough
tests to assure satisfactory start up,
acceleration, fuel consumption, output performance etc.
For construction and other details, refer
to
the Section
6.
CARBURETOR (Construction, Disassembly
and
Reassem-
blY
1.
(See Fig.
15.)
4-15
AIR
CLEANER
Cyclone type semi-wet double element air cleaner is used.
(See Fig.
16.)
4-16
DIODE
RECTIFIER
The engines with an electric starter have
a
diode rectifier
which converts the alternating current generated
by
the
charging coil into
a
direct current and charges the battery.
(See
Fig.
17.)
L,
Fig.
15
Fig.
16
Fig.
17
-9-
