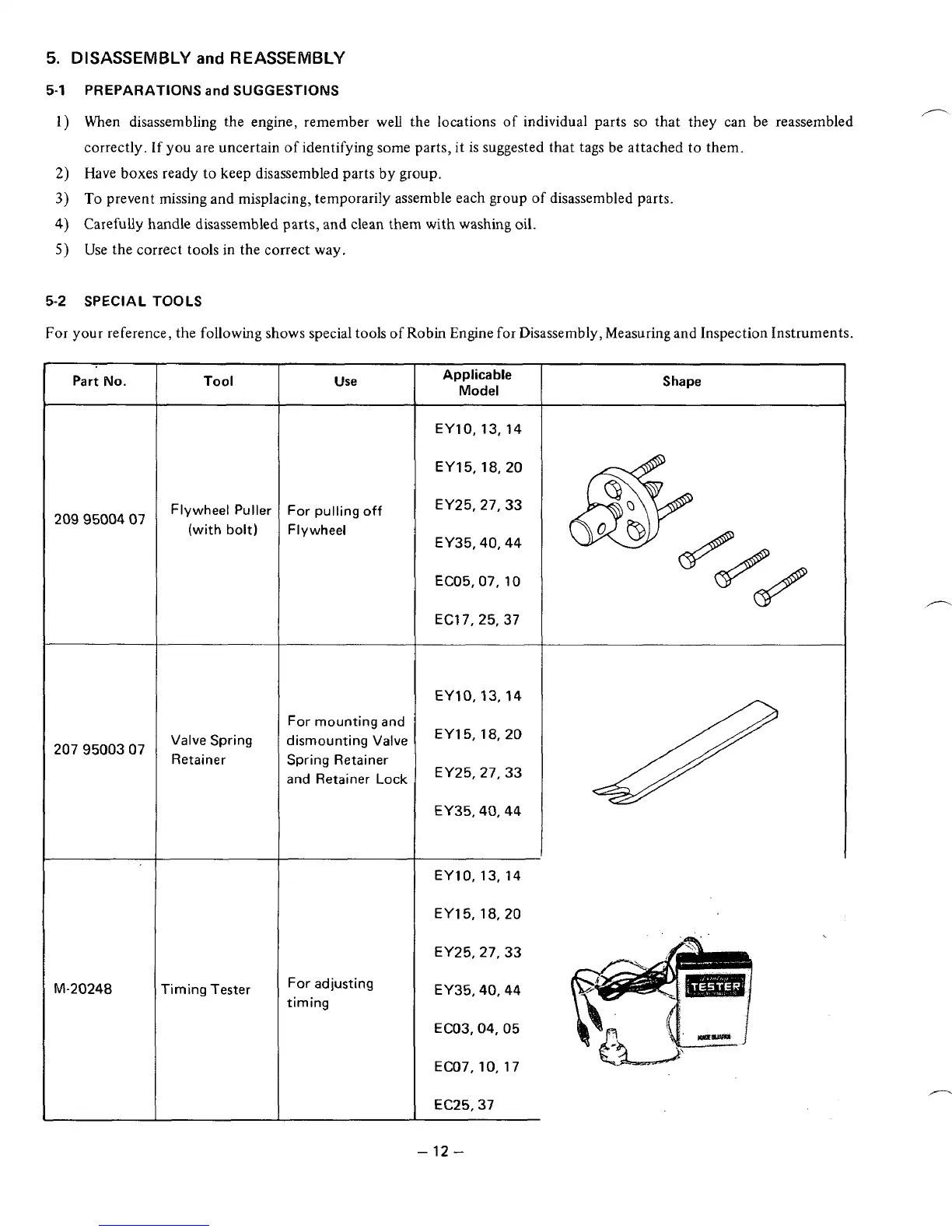

5.
DISASSEMBLY
and
REASSEMBLY
5-1
PREPARATIONS
and
SUGGESTIONS
1)
When disassembling the engine, remember well the locations
of
individual parts
so
that they can be reassembled
correctly.
If
you are uncertain
of
identifying some parts, it
is
suggested that tags be attached to them.
2)
Have boxes ready to keep disassembled parts by group.
3)
To
prevent missing and misplacing, temporarily assemble each group
of
disassembled parts.
4)
Carefully handle disassembled parts, and clean them with washing oil.
5)
Use the correct
tools
in
the correct way,
5-2
SPECIAL
TOOLS
For
your
reference, the following shows special tools
of
Robin Engine
for
Disassembly, Measuring and Inspection Instruments.
Part
No.
2099500407
2079500307
"20248
Tool
Flywheel Puller
(with
bolt)
Valve
Spring
Retainer
riming Tester
~
Wse
For pulling
off
Flywheel
For mounting and
dismounting Valve
Spring Retainer
and Retainer
Lock
For adjusting
timing
Applicable
Model
EY10,13,14
EY15,18,20
EY25,27,33
EY35,40,44
EC05,07,
10
ECf
7,25,37
EYIQ, 13.14
EY15,18,20
EY25,27,33
EY35,40,44
EYlO, 13,14
EY15,18,20
EY25,27,33
EY35,40,44
EC03,04,05
EC07,10,17
EC25,37
-
12
-
Shape
,"-
To Next Page
