10-5-2
FLEXIBLE
COUPLING
When using a flexible coupling, runout and misalignment between the driven shaft and engine shaft must be minimized.
Runout and misalignment tolerance are specified by the coupling manufacturer.

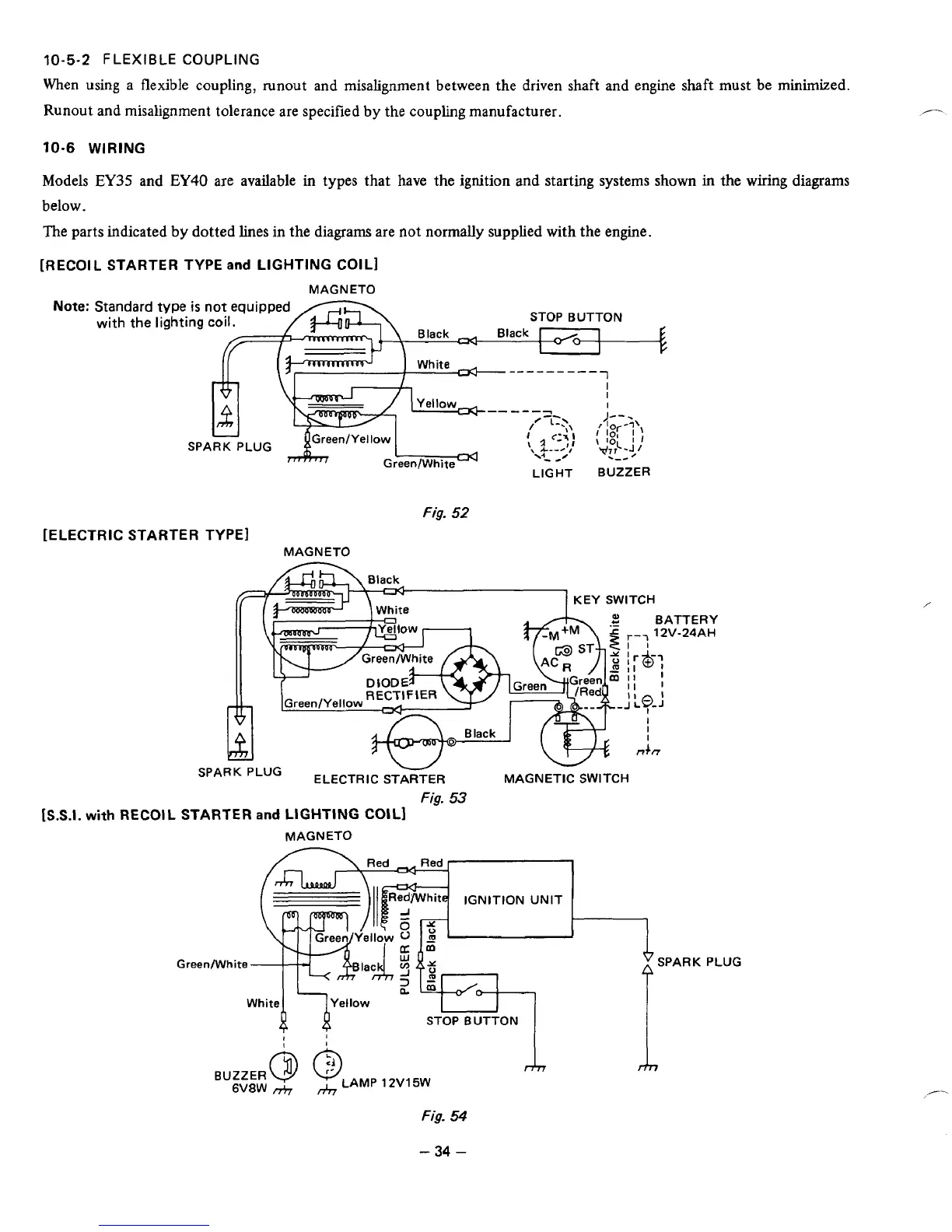

10-6
WIRING
Models
EY35
and
EY40
are available
in
types that have the ignition and starting systems shown
in
the
wiring diagrams
below.
The parts indicated by dotted lines in the diagram are
not
normally supplied with the engine.
[RECOIL
STARTER TYPE
and
LIGHTING
COIL]
MAGNETO
Note:
Standard type is not equipped
with the
lighting
coil.
STOP BUTTON
E
-
-
-
-
-
-
-
-
-
1
SPARK PLUG
Green/Yellow
Fig.
52
BUZZER
[ELECTRIC STARTER TYPE]
MAGNETO
KEY SWITCH
ELECTRIC STARTER MAGNETIC SWITCH
Fig.
53
[S.S.I.
with
RECOIL STARTER
and
LIGHTING COIL]
MAGNETO
1
STOP
BUTTON
I
SPARK PL .UG
BUZZER
6V8W
@
*
QLAMP 12V15W
J,
Fig.
54
-
34
-
