(11) IGNITION
A flywheel/magneto igntion system is employed with the ignition timing set at 23” before top dead center.
The magneto is composed of the flywheel and ignition coil with the flywheel mounted on the rotor shaft.
The ignition coil is fitted to the front housing.
(12) CARBURETOR
The horizontal draft type carburetor is installed so that the engine will provide excellent starting, good ac-
celeration, low fuel consumption, and superior output. [For details concerning carburetor construction, see
the paragraph dealing with carburetor construction and disassembly/assembly (Page 59).]
(13) AIR CLEANER
The air cleaner is a semi-wet type and contains a sponge element.

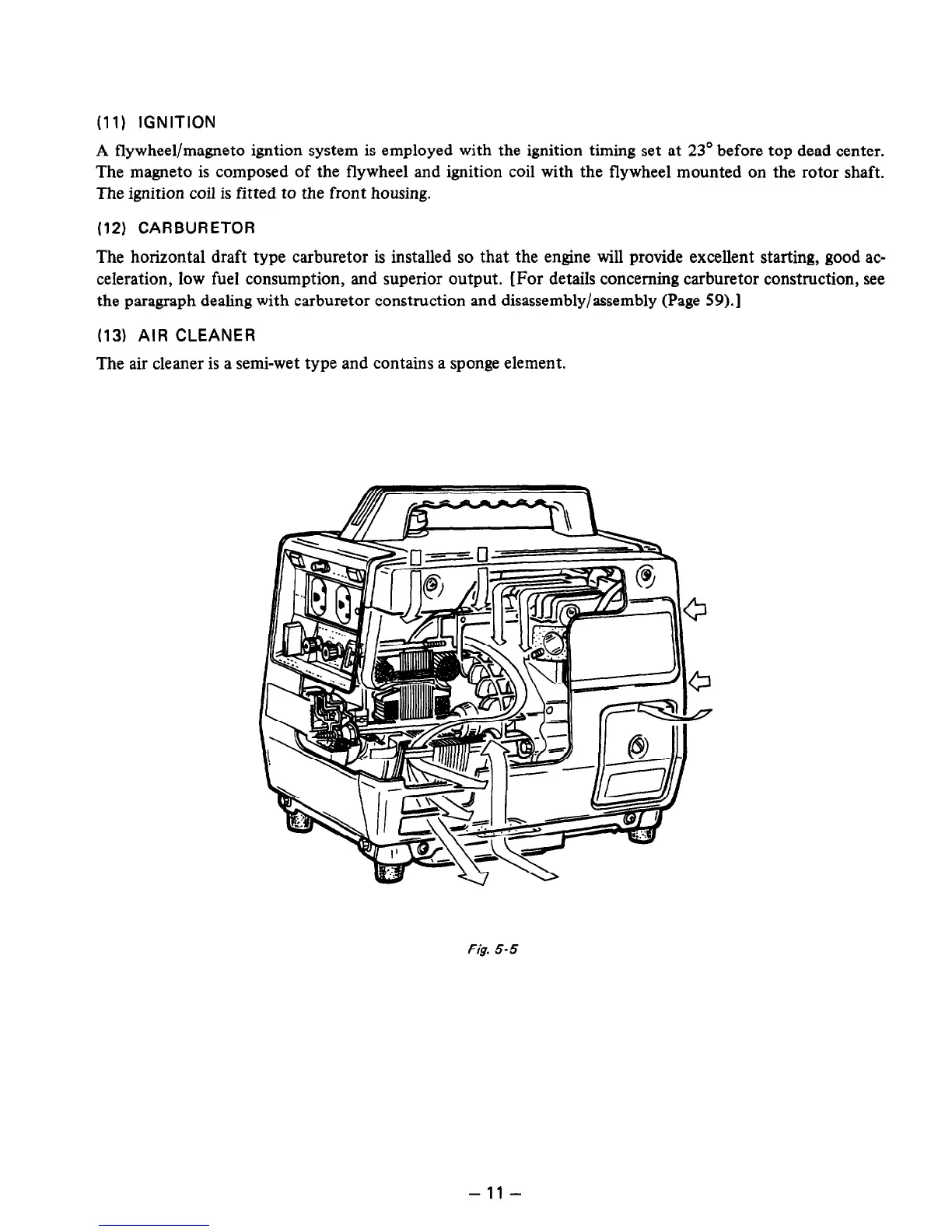

Fig. 5-5
-11-
