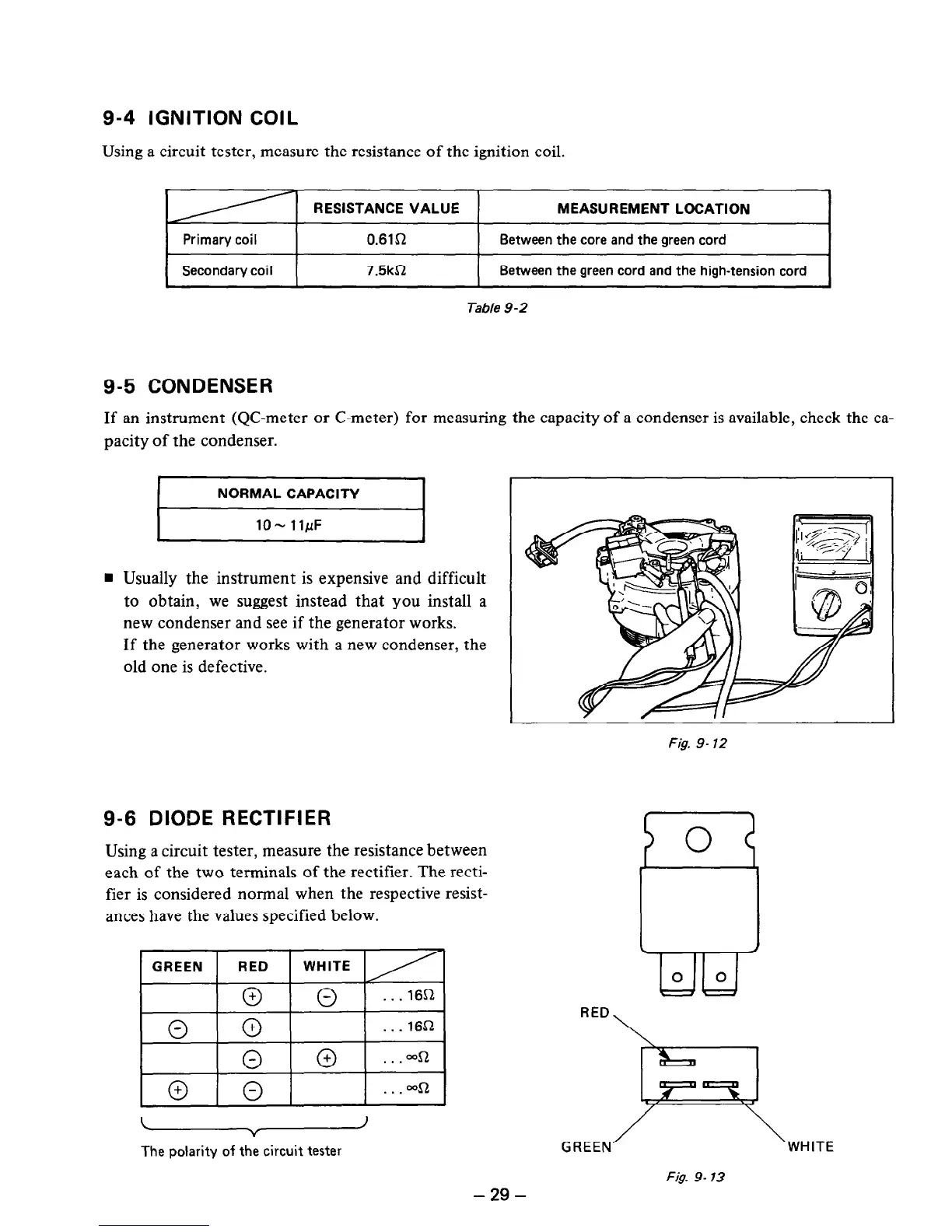

9-4 IGNITION COIL
Using a circuit tester, measure the resistance of the ignition coil.
Primary coil
Secondary coil
RESISTANCE VALUE
MEASUREMENT LOCATION
0.61S2
Between the core and the green cord
7.5kR Between the green cord and the high-tension cord
Table 9-2
9-5 CONDENSER
If an instrument (QC-meter or C-meter) for measuring the capacity of a condenser is available, check the ca-
pacity of the condenser.
n
Usually the instrument is expensive and difficult
to obtain, we suggest instead that you install a
new condenser and see if the generator works.
If the generator works with a new condenser: the
old one is defective.
9-6 DIODE RECTIFIER
Using a circuit tester, measure the resistance between
each of the two terminals of the rectifier. The recti-
fier is considered normal when the respective resist-
ances have the values specified below.
The polarity of the circuit tester
Fig. 9- 12
RED
GREEN
WHITE
Fig. 9- 13
-
29
-
