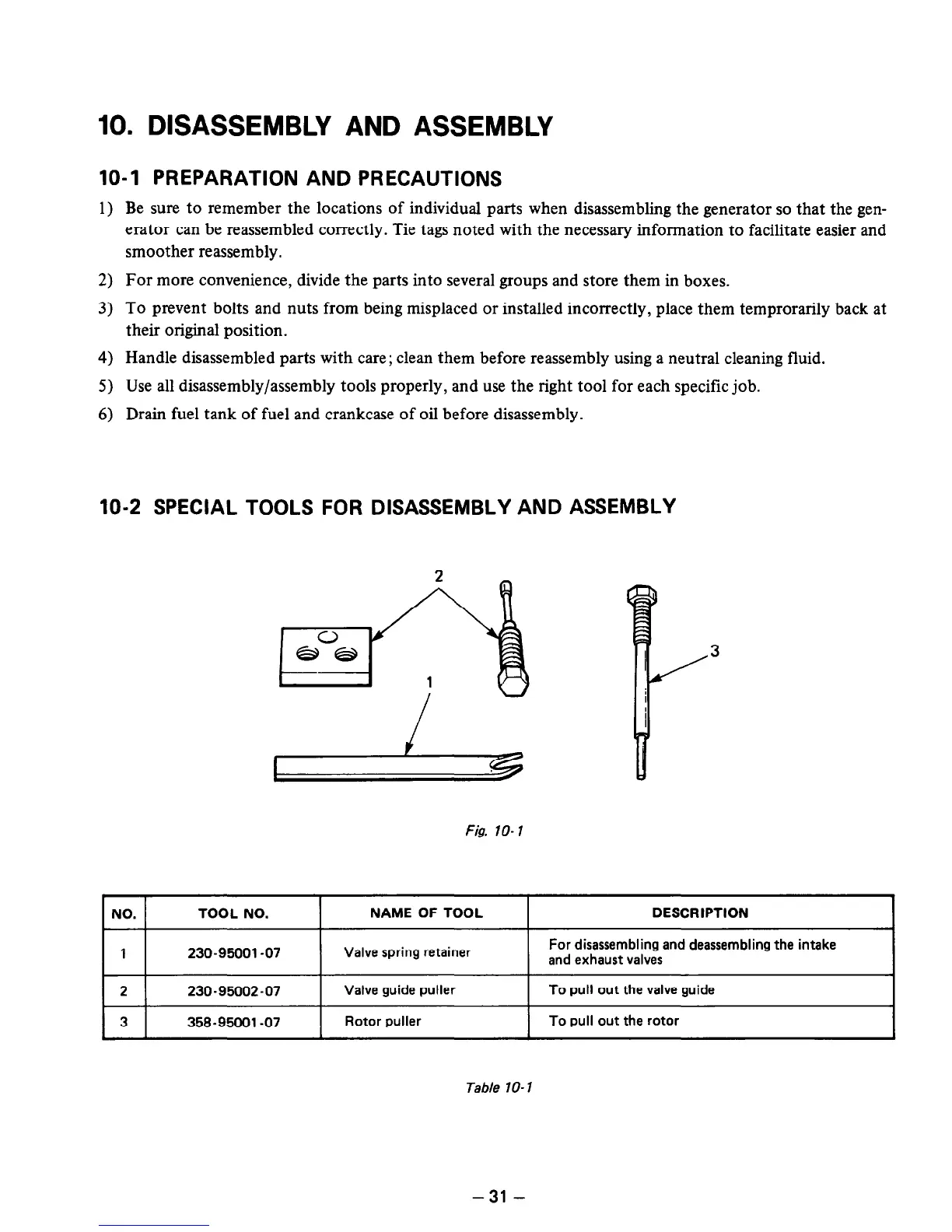

10. DISASSEMBLY AND ASSEMBLY
10-l PREPARATION AND PRECAUTIONS
1)
Be sure to remember the locations of individual parts when disassembling the generator so that the gen-
erator can be reassembled correctly. Tie tags noted with the necessary information to facilitate easier and
smoother reassembly.
2)
3)
For more convenience, divide the parts into several groups and store them in boxes.
To prevent bolts and nuts from being misplaced or installed incorrectly, place them temprorarily back at
their original position.
4)
Handle disassembled parts with care; clean them before reassembly using a neutral cleaning fluid.
5)
Use all disassembly/assembly tools properly, and use the right tool for each specific job.
6)
Dram fuel tank of fuel and crankcase of oil before disassembly.
10-2 SPECIAL TOOLS FOR DISASSEMBLY AND ASSEMBLY
2
0
1
4
4
1
Fig. lo- 1
NO.
TOOL NO.
NAME OF TOOL
DESCRIPTION
I
I I
1
230-95001-07
Valve spring retainer
For disassembling and deassembling the intake
and exhaust valves
I
I
I
I
2 230-95002-07
Valve guide puller
To pull out the valve guide
1
I I
3
358-95001-07
Rotor puller
I
To pull out the rotor
I
Table 70-l
-31-
