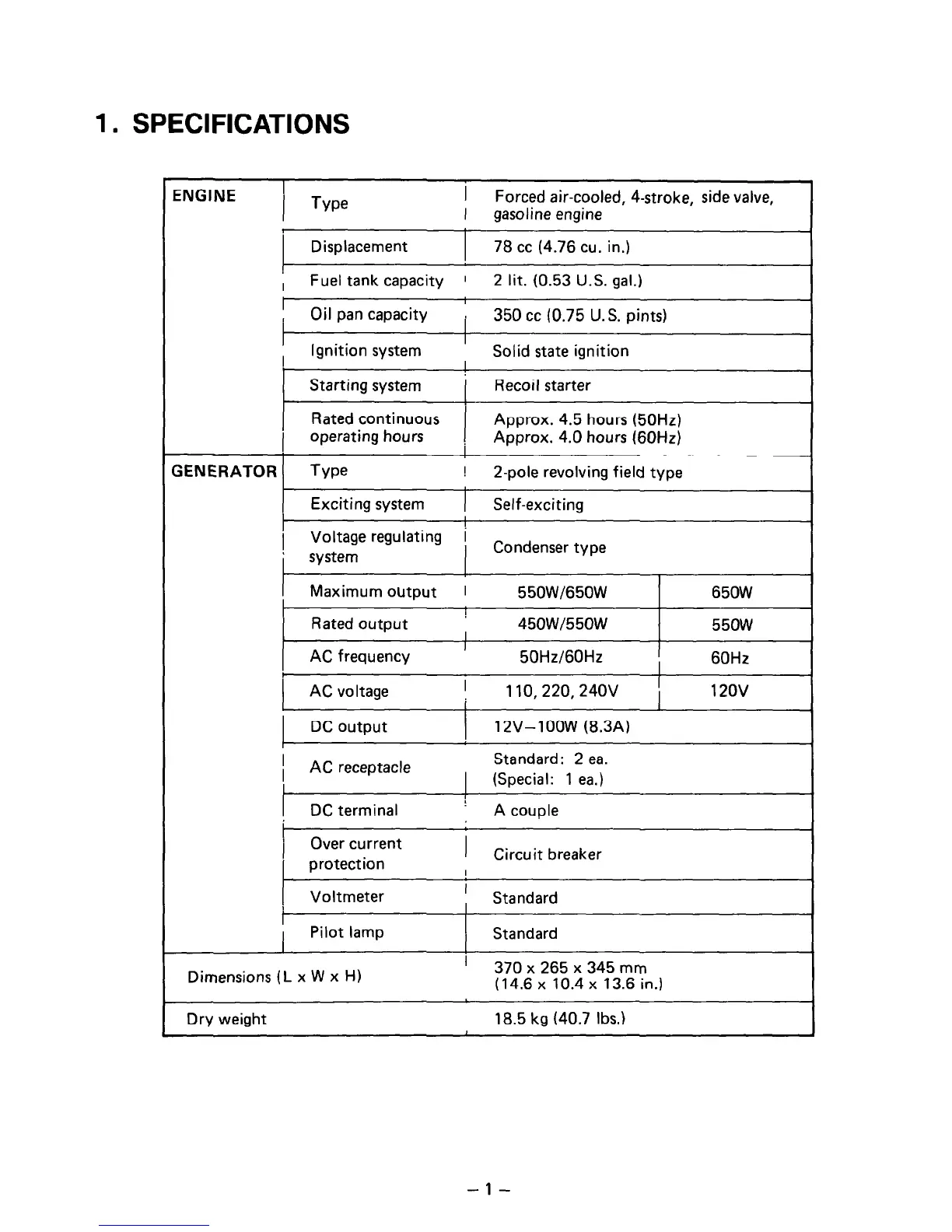

Robin R650 Service Manual

1. SPECIFICATIONS
ENGINE
I
Type
1 Forced air-cooled, &troke, side valve,
I gasoline engine
I
Displacement
78 cc (4.76 cu. in.)
, Fuel tank capacity 1
2 lit. (0.53 U.S. gal.)
I
Oil pan capacity
I
350 cc (0.75 U.S. pints)
Ignition system
I
Solid state ignition
Starting system
Recoil starter
Rated continuous
(
Approx. 4.5 hours (50Hz)
operating hours
Approx. 4.0 hours (60Hz)
GENERATOR
Type
I
2-pole revolving field type
Exciting system
Self-exciting
I
: y regulating 1
Condenser type
aximum output
I
55OW/65OW
650W
I
Rated output
45ow/55ow
550w
I
AC frequency
I
50Hz/60Hz
60Hz
AC voltage
I
110,220,24OV
12ov
DC output
12V-1OOW (8.3A)
AC receptacle
Standard: 2 ea.
1 (Special: 1 ea.)
I
DC terminal
A couple
Over current
protection
1 Circuit breaker
I
Voltmeter
Standard
Pilot lamp
Standard
Dimensions (L x W x H)
370 x 265 x 345 mm
(14.6 x 10.4 x 13.6 in.)
Dry weight
18.5 kg (40.7 Ibs.)
-1-
