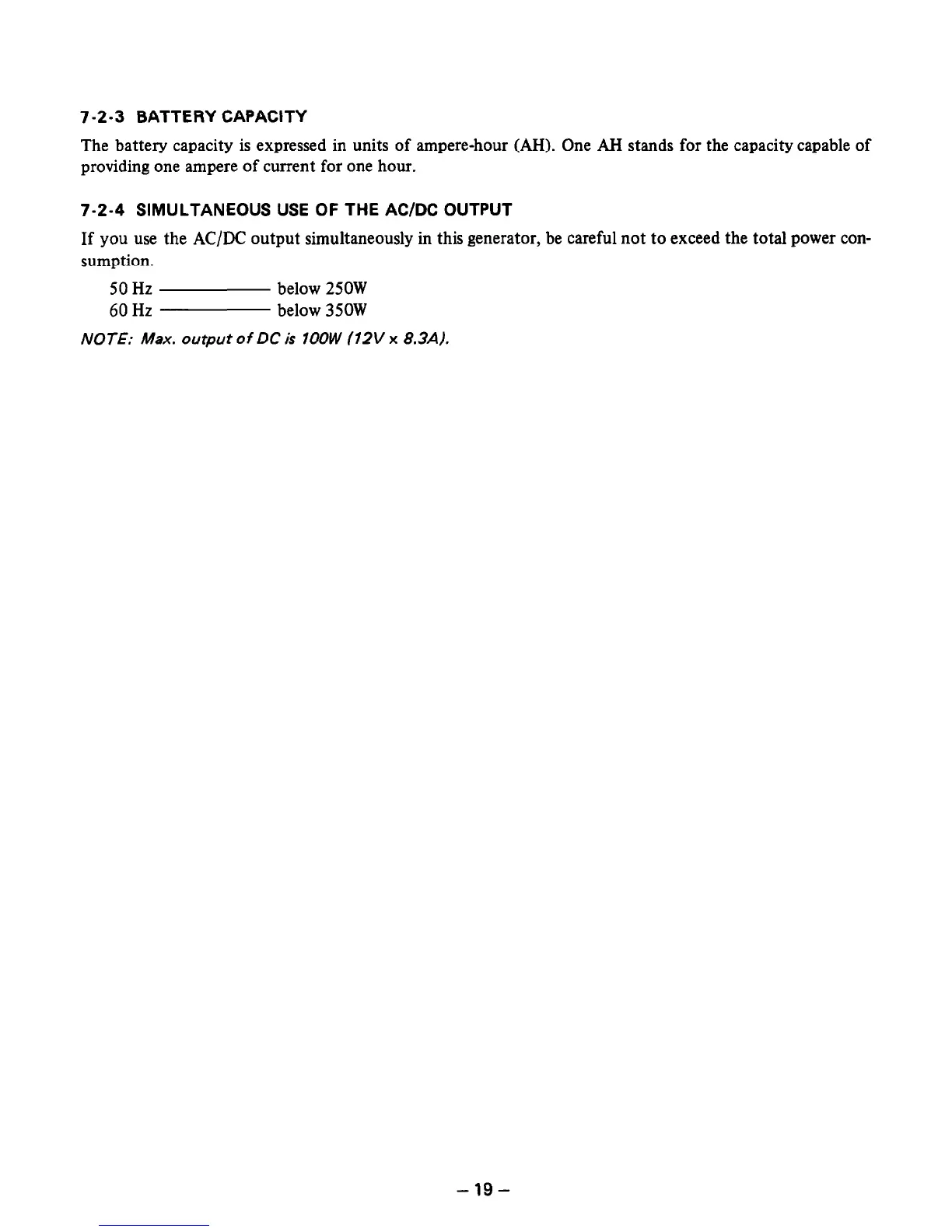

7-2-3
BATTERY
CAPACITY
The
battery
capacity
is
expressed
in
units
of
ampere-hour
(AH).
One
AH
stands
for
the
capacity
capable
of
providing
one
ampere
of
current
for
one
hour.
7-2-4
SIMULTANEOUS
USE
OF
THE
AC/DC
OUTPUT
If
you
use
the
AC/DC
output
simultaneously
in
this
generator,
be
careful
not
to
exceed
the
total
power
con-
sumption.
50Hz
below
250W
60
Hz
below
350W
NOTE:
Max.
output
of
DC
is
lOOW
(12V
x
8.3A).
-19-
21
23
