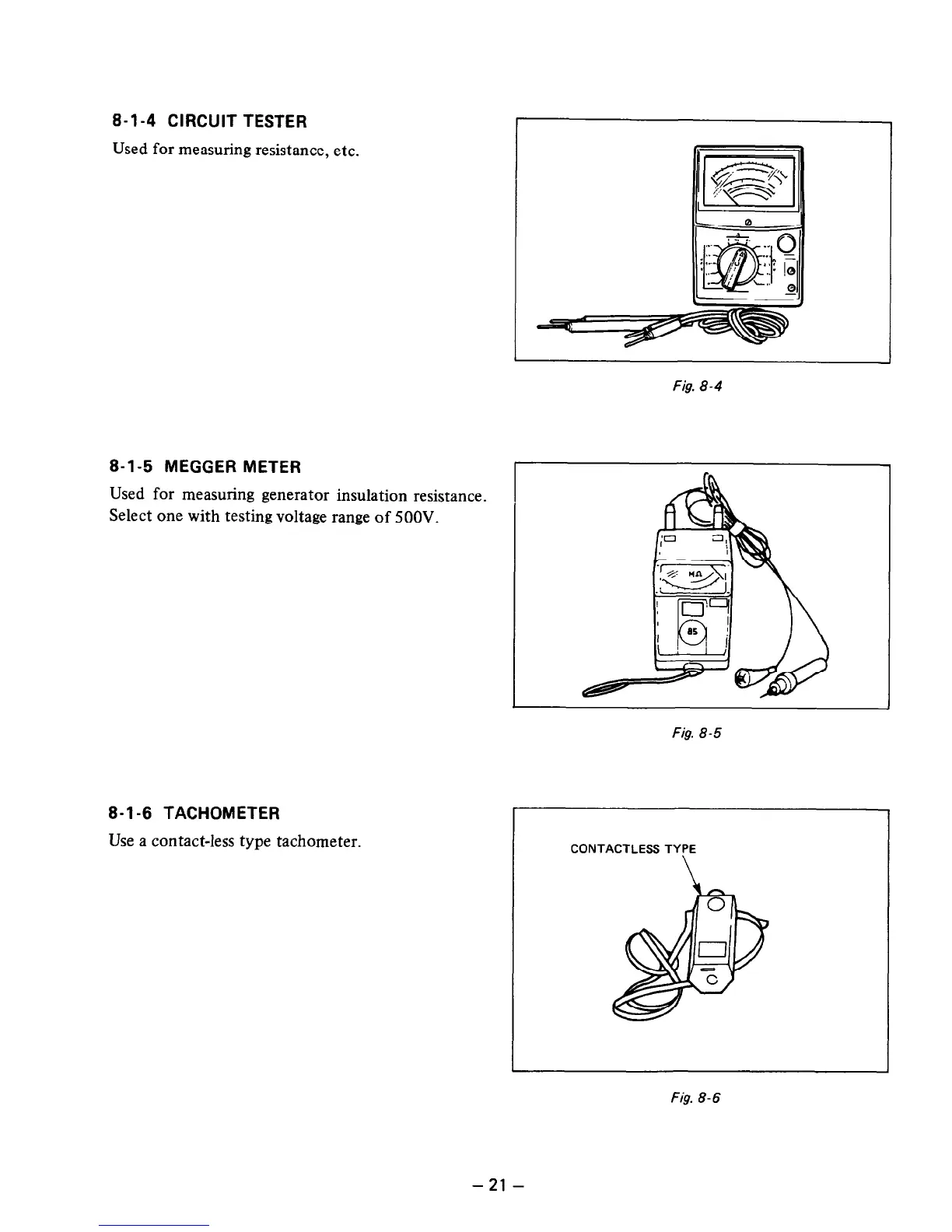

8-1-4 CIRCUIT TESTER
Used for measuring resistance, etc.
8-l-5 MEGGER METER
Used for measuring generator insulation resistance.
Select one with testing voltage range of 5OOV.
8-1-6 TACHOMETER
Use a contact-less type tachometer.
Fig. 8-4
1
J
Fig. 8-5
CONTACTLESS TYPE
Fig. 8-6
