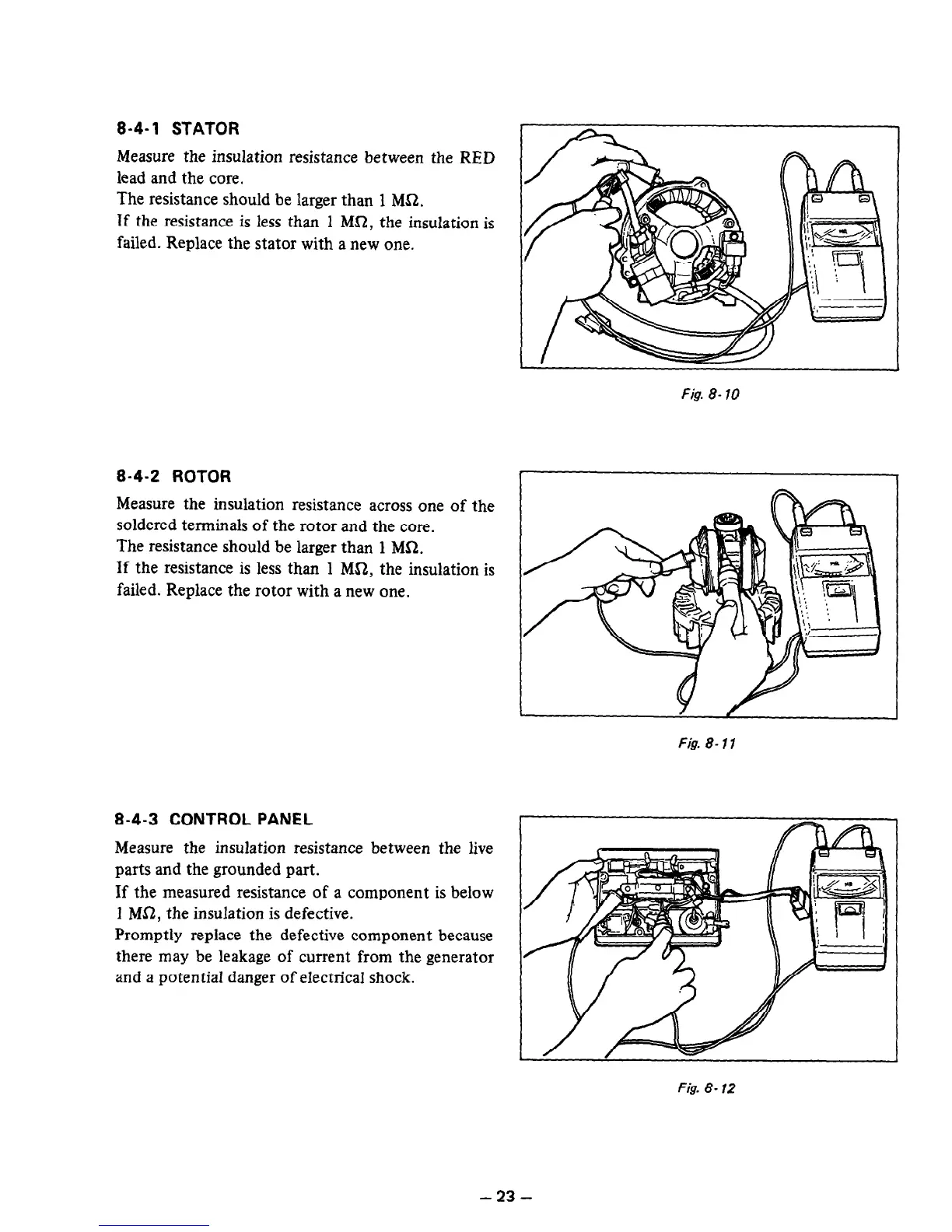

8-4- 1 STATOR
Measure the insulation resistance between the RED
lead and the core.
The resistance should be larger than 1 Ma.
If the resistance is less than 1 Ma, the insulation is
failed. Replace the stator with a new one.
8-4-Z ROTOR
Measure the insulation resistance across one of the
soldered terminals of the rotor and the core.
The resistance should be larger than 1 MS2.
If the resistance is less than 1 MSZ, the insulation is
failed. Replace the rotor with a new one.
8-4-3 CONTROL PANEL
Measure the insulation resistance between the live
parts and the grounded part.
If the measured resistance of a component is below
1 MS2, the insulation is defective.
Promptly replace the defective component because
there may be leakage of current from the generator
and a potential danger of electrical shock.
Fig. 8- 10
F& 8-17
Fig. 8- 12
- 23 -
