(5) FLOAT SYSTEM
Pull out float pm (12) and remove float (11) and needle valve (20).
l
Avoid using a drill or a wire to clean the fuel passages (they may damage the orifice of the pilot and main
jet nozzles). Use compressed air.
l
The float pin is peen-secured to the carburetor body; the needle valve and float can be removed out from
the opposite side of the peen-secured part by lightly striking the float pm with a thin bar-like object.
20
10
12
11
4
13
14

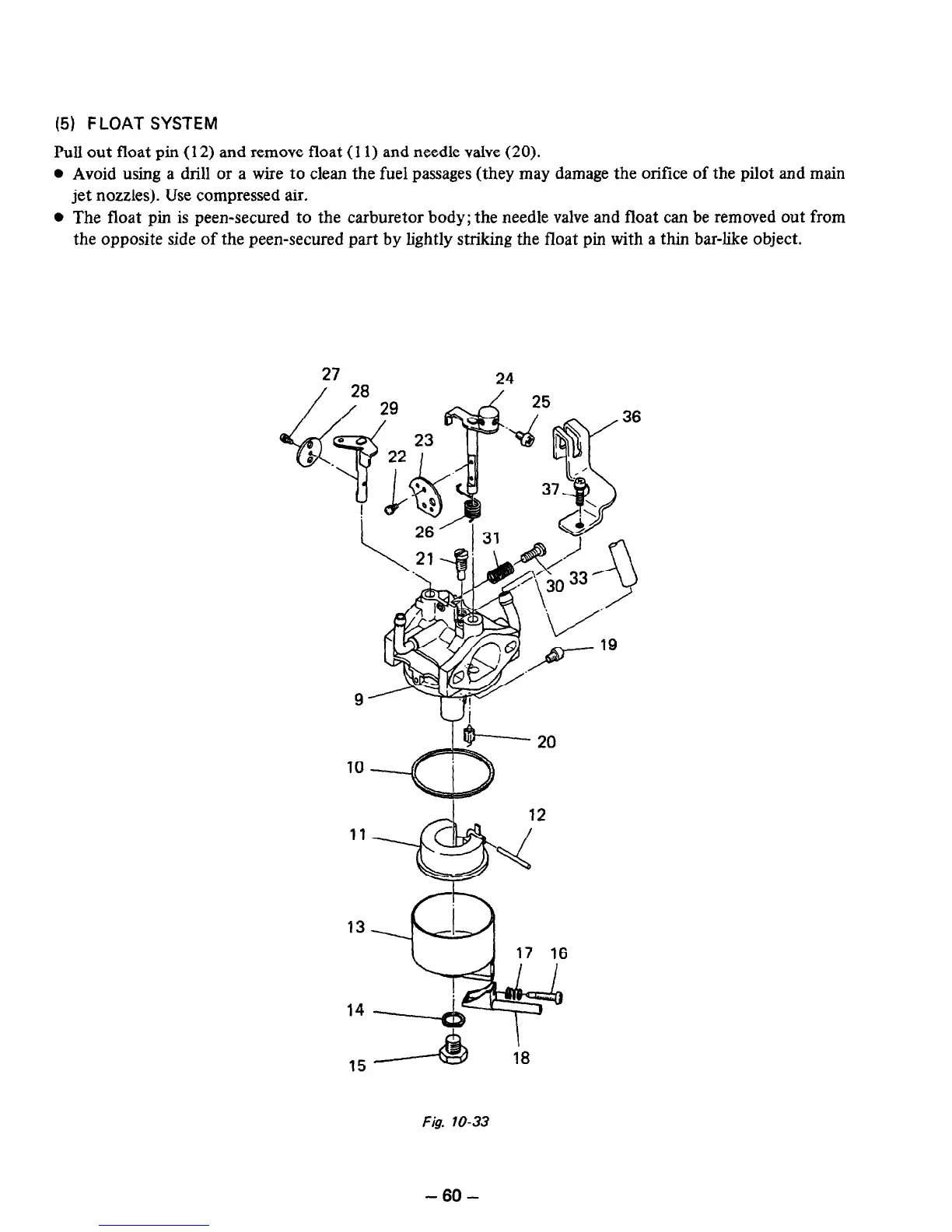

Fig. lo-33
