GOVERNOR
SPRING
(10)
LEVER
(12)
CAM
(14)
CONTROL
LEVER
(13)
ADJUSTING
SCREW
(22)
(FOR
6OHz)
ADJUSTING
SCREW
(211
[FOR
5OHz)
MICRO-SWITCH
(18)

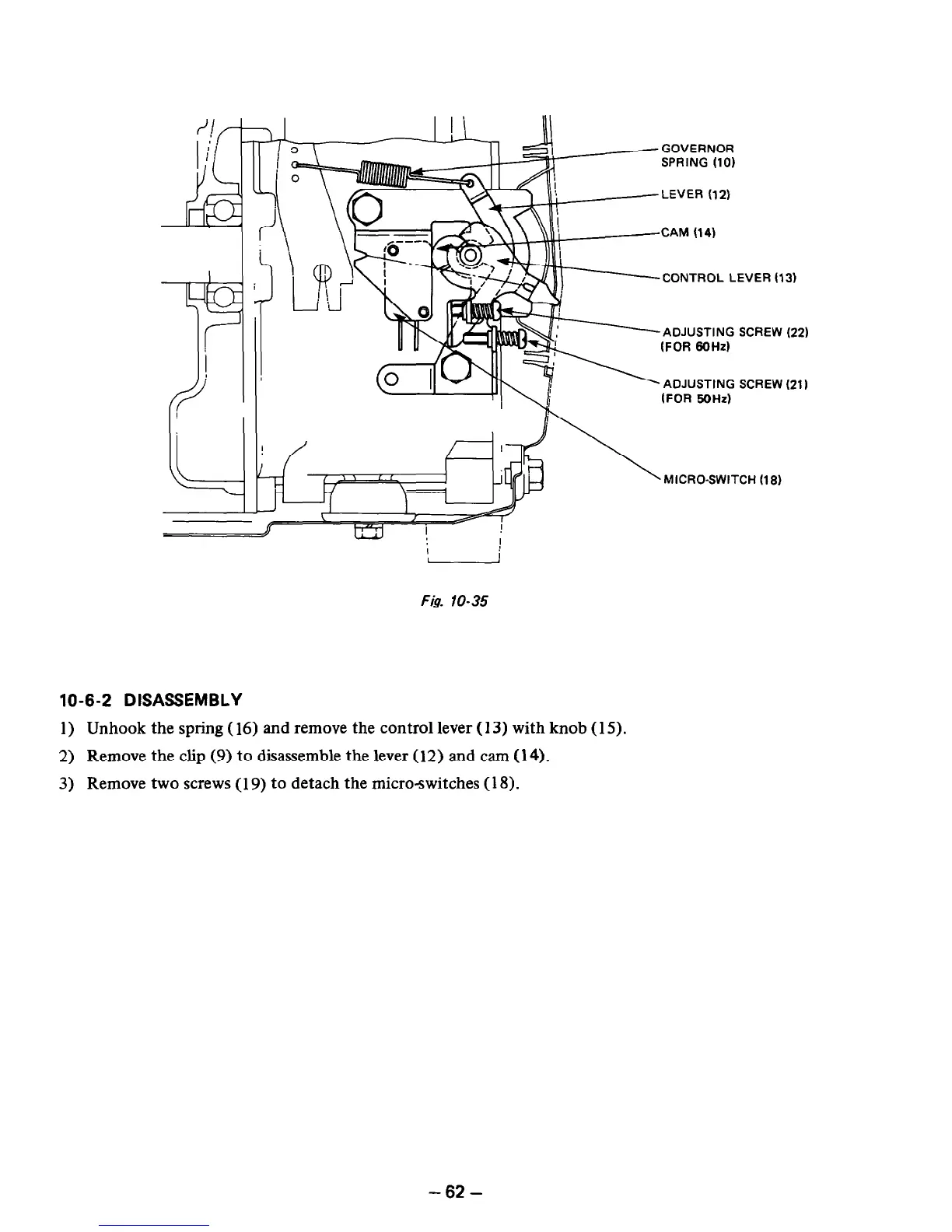

Fig.
lo-35
10-6-Z
DISASSEMBLY
1)
Unhook
the
spring
(
16)
and
remove
the
control
lever
(13)
with
knob
(15).
2)
Remove
the
clip
(9)
to
disassemble
the
lever
(12)
and
cam
(14).
3)
Remove
two
screws
(19)
to
detach
the
micro-switches
(18).
-62-
