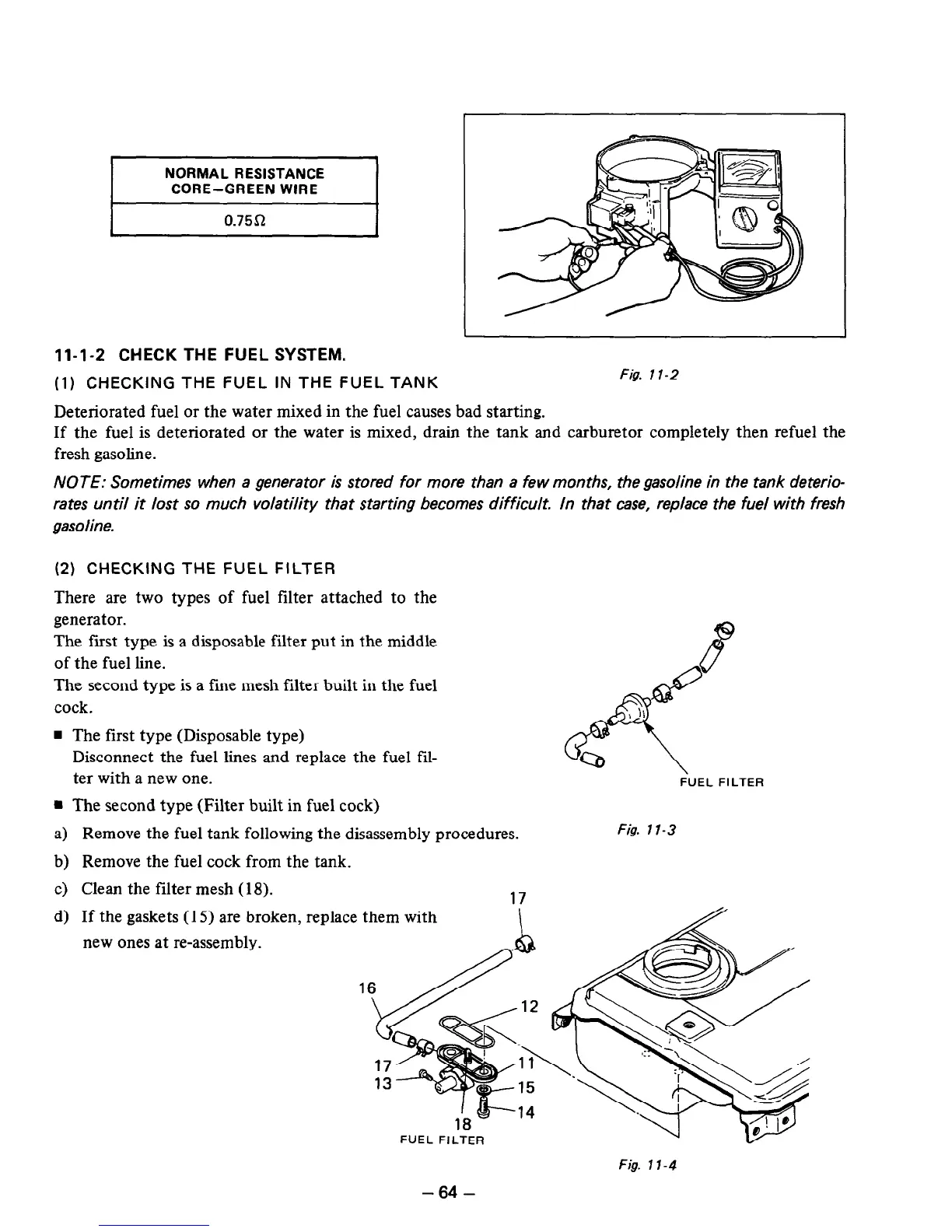

ll-l-2 CHECK THE FUEL SYSTEM.
(1) CHECKING THE FUEL IN THE FUEL TANK
Fig. 11-2
Deteriorated fuel or the water mixed in the fuel causes bad starting.
If the fuel is deteriorated or the water is mixed, drain the tank and carburetor completely then refuel the
fresh gasoline.
NOTE: Sometimes when a generator is stored for more than a few months, the gasoline in the tank deterio-
rates un tit it lost so much volatility that starting becomes difficult. In that case, replace the fuel with fresh
gasoline.
(2) CHECKING THE FUEL FILTER
There are two types of fuel filter attached to the
generator.
The first type is a disposable filter put in the middle
of the fuel line.
The second type is a fine mesh filter built in the fuel
cock.
w The first type (Disposable type)
Disconnect the fuel lines and replace the fuel fil-
ter with a new one.
l
The second type (Filter built in fuel cock)
a) Remove the fuel tank following the disassembly procedures.
b) Remove the fuel cock from the tank.
c) Clean the filter mesh (18).
17
d) If the gaskets (15) are broken, replace them with
new ones at re-assembly.
1
FUEL FILTER
FUEL FILTER
Fig. 7 1-3
fig. 1 l-4
- 64 -
