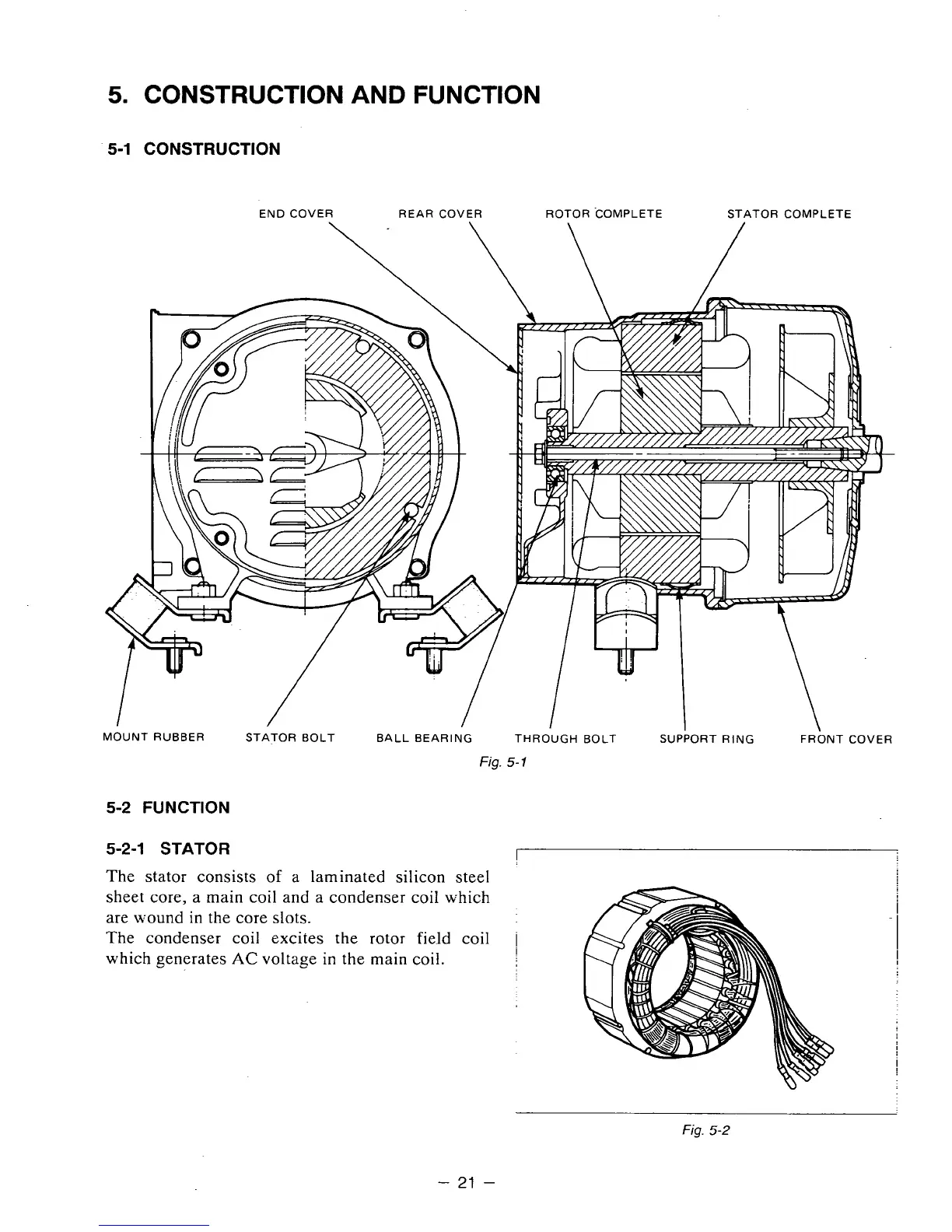

5. CONSTRUCTION AND FUNCTION
5-1 CONSTRUCTION
END COVER REAR COVER ROTOR COMPLETE STATOR COMPLETE
MOUNT RUBBER STATOR BOLT BALL BEARING THROUGH BOLT SUPPORT RING FRONT COVER
Fig. 5-7
5-2 FUNCTION
5-2-1 STATOR
I
The stator consists of a laminated silicon steel
sheet core, a main coil and a condenser coil which
are wound
in the core slots.
The condenser coil excites the rotor field coil
i -I
which generates AC voltage in the main coil.
i
1
I
I
I
Fig. 5-2
- 21 -
