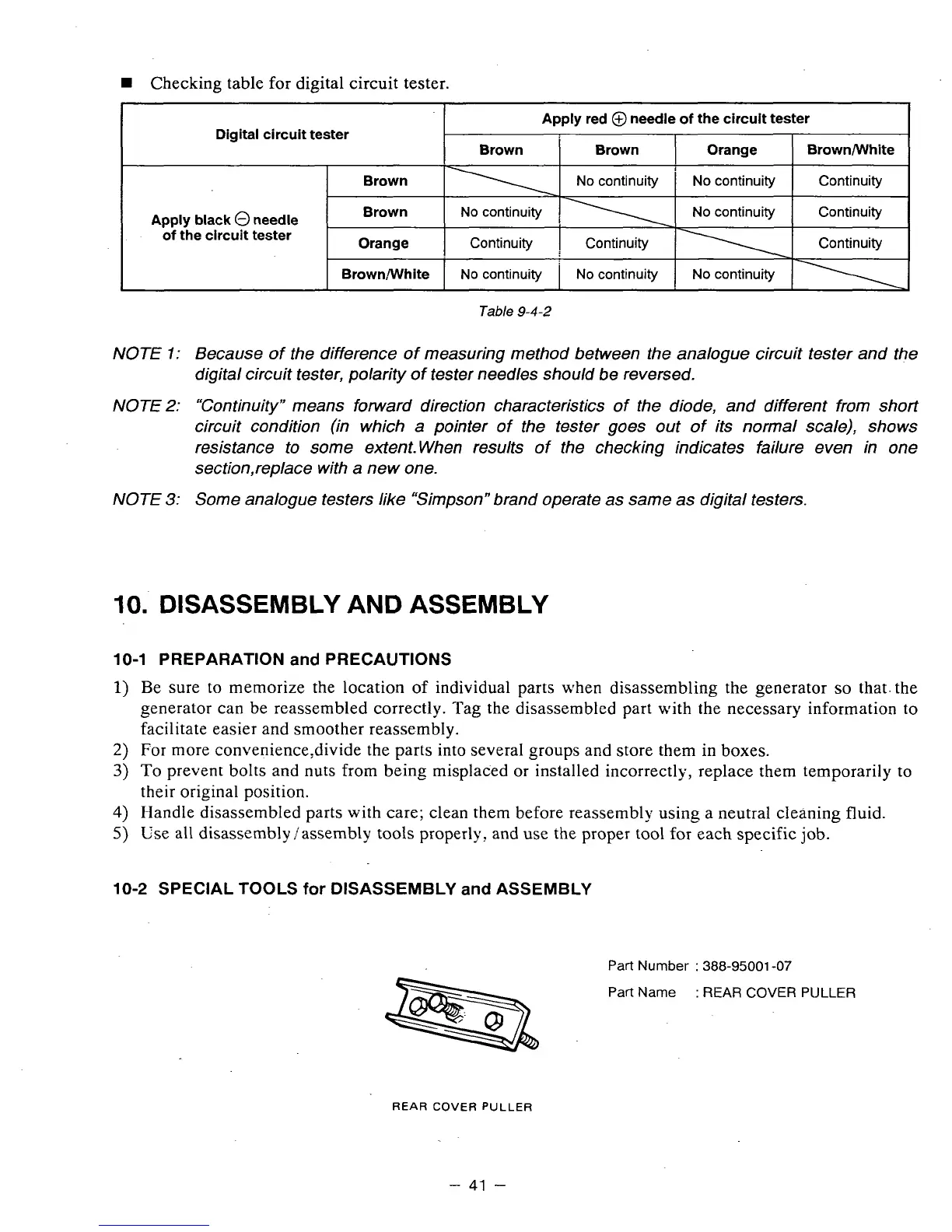

Checking table for digital circuit tester.
Apply red
@J
needle
of
the circuit tester
Digital circuit tester
Brown
1
Brown
BrownWhite
Orange
Brown
Continuity
No
continuity
No
continuity
-
Apply black
@
needle
of
the circuit tester
Brown
Continuity Continuity Continuity
Orange
No
continuity Continuity
NO
continuity
1
!
I
Brown,White
No
continuity
No
continuity
No
continuity
NOTE
1:
NOTE
2:
NOTE
3:
Table
9-4-2
Because of the difference of measuring method between the analogue circuit tester and the
digital circuit tester, polarity
of
tester needles should be reversed.
“Continuity” means forward direction characteristics of the diode, and different from short
circuit condition (in which a pointer of the tester goes out of its normal scale), shows
resistance to some extent. When results of the checking indicates failure even in one
section,replace with a new one.
Some analogue testers like “Simpson” brand operate as same as digital testers.
10.
DISASSEMBLY AND ASSEMBLY
10-1
PREPARATION
and
PRECAUTIONS
1)
Be sure to memorize the location of individual parts when disassembling the generator
so
that. the
generator can be reassembled correctly. Tag the disassembled part with the necessary information to
facilitate easier and smoother reassembly.
2)
For more convenience,divide the parts into several groups and store them in boxes.
3)
To
prevent bolts and nuts from being misplaced
or
installed incorrectly, replace them temporarily to
4)
Handle disassembled parts with care; clean them before reassembly using a neutral cleaning fluid.
5)
Use
all disassembly .‘assembly
tools
properly, and
use
the proper tool
for
each specific job.
their original position.
10-2
SPECIAL TOOLS
for
DISASSEMBLY
and
ASSEMBLY
Part Number
:
388-95001
-07
Part Name
:
REAR COVER PULLER
REAR
COVER
PULLER
-
41
-
