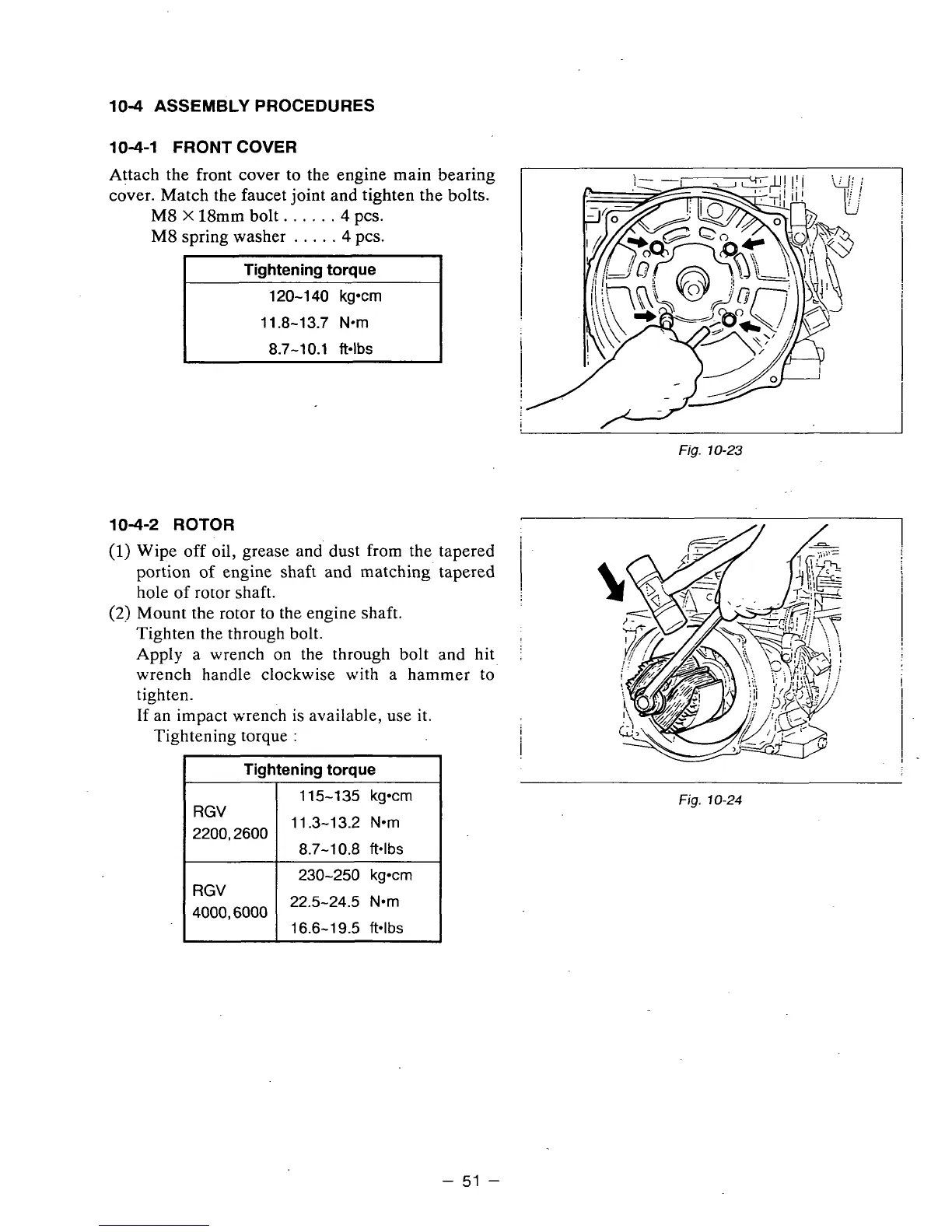

10-4 ASSEMBLY PROCEDURES
10-4-1 FRONT COVER
Attach the front cover to the engine main bearing
cover. Match the faucet joint and tighten the bolts.
M8
X 18mm bolt. . . . . . 4 pcs.
M8 spring washer
. . . . . 4 pcs.
Tightening torque
120-1 40 kg-crn
11.8-13.7 Nm
8.7-10.1 ft4bS
10-4-2 ROTOR
(1) Wipe off oil, grease and dust from the tapered
portion of engine shaft and matching tapered
hole of rotor shaft.
Tighten the through bolt.
Apply a wrench on the through bolt and hit
wrench handle clockwise with a hammer
to
tighten.
If an impact wrench is available, use it.
(2) Mount the rotor to the engine shaft.
Tightening torque
:
I
Tightening torque
IRGV I
115-135 kg-cm
2200.2600
1 1.3-1 3.2
Nom
I I 8.7-10.8 ft4bs
230-250 kgwn
RGV
4000,6000
22.5-24.5
Nom
16.6-1 9.5 ft*lbs
Fig. 10-23
Fig. 10-24
- 51 -
