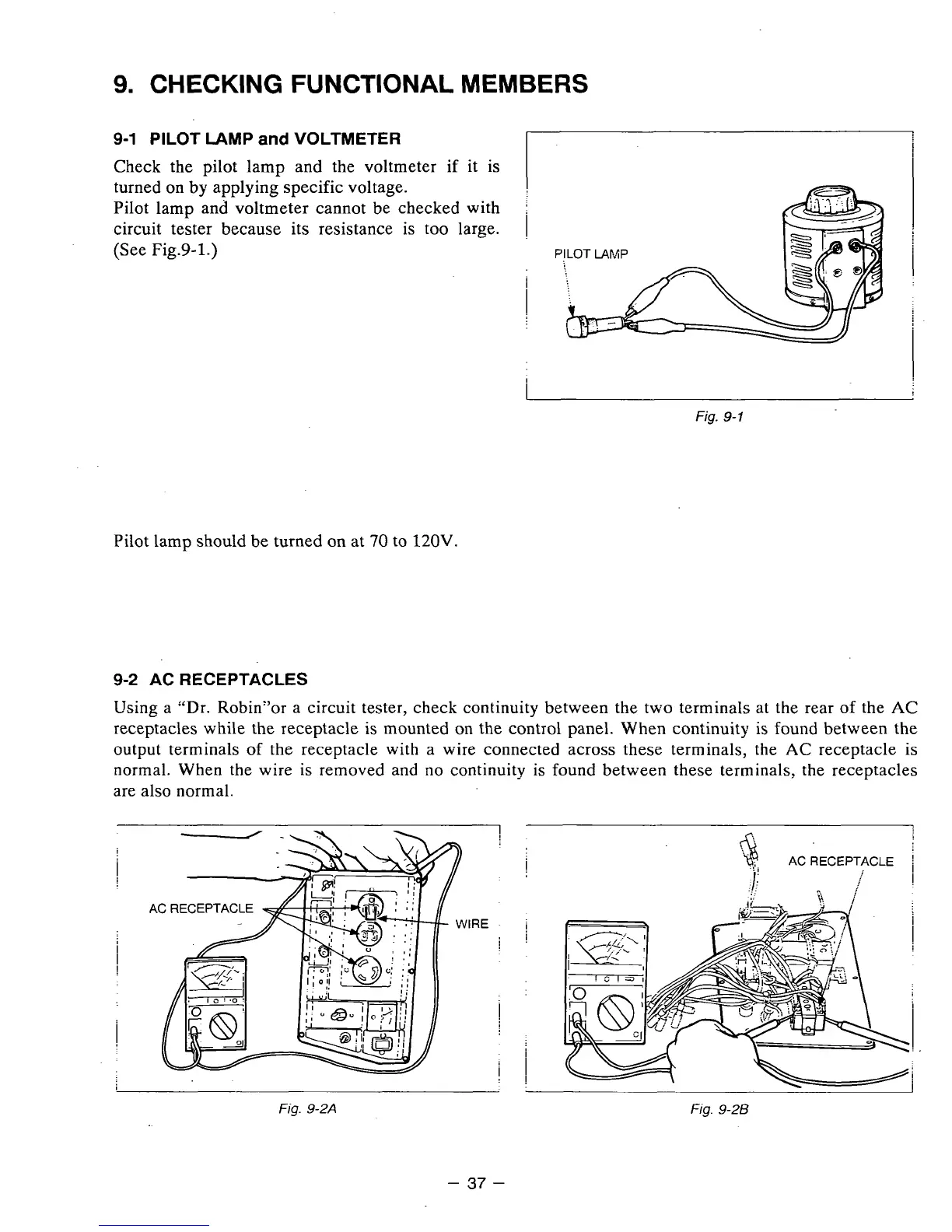

9.
CHECKING FUNCTIONAL MEMBERS
9-1
PILOT LAMP
and
VOLTMETER
Check the pilot lamp and the voltmeter if it is
turned
on
by applying specific voltage.
Pilot lamp and voltmeter cannot be checked with
'
circuit tester because its resistance is too large.
I
(See Fig.9-1.)
Fig.
9-1
Pilot lamp should be turned
on
at
70
to
12OV.
9-2
AC RECEPTACLES
Using a "Dr. Robin"or a circuit tester, check continuity between the two terminals at the rear of the
AC
receptacles while the receptacle
is
mounted on the control panel. When continuity
is
found between the
output terminals of the rece.ptacle with a wire connected across these terminals, the
AC
receptacle is
normal. When the wire
is
removed and no continuity
is
found between these terminals, the receptacles
are also normal.
&
.I:
AC RECEPTACLE
.:
I
I
Fig.
9-2A
Fig.
9-28
-
37
-
