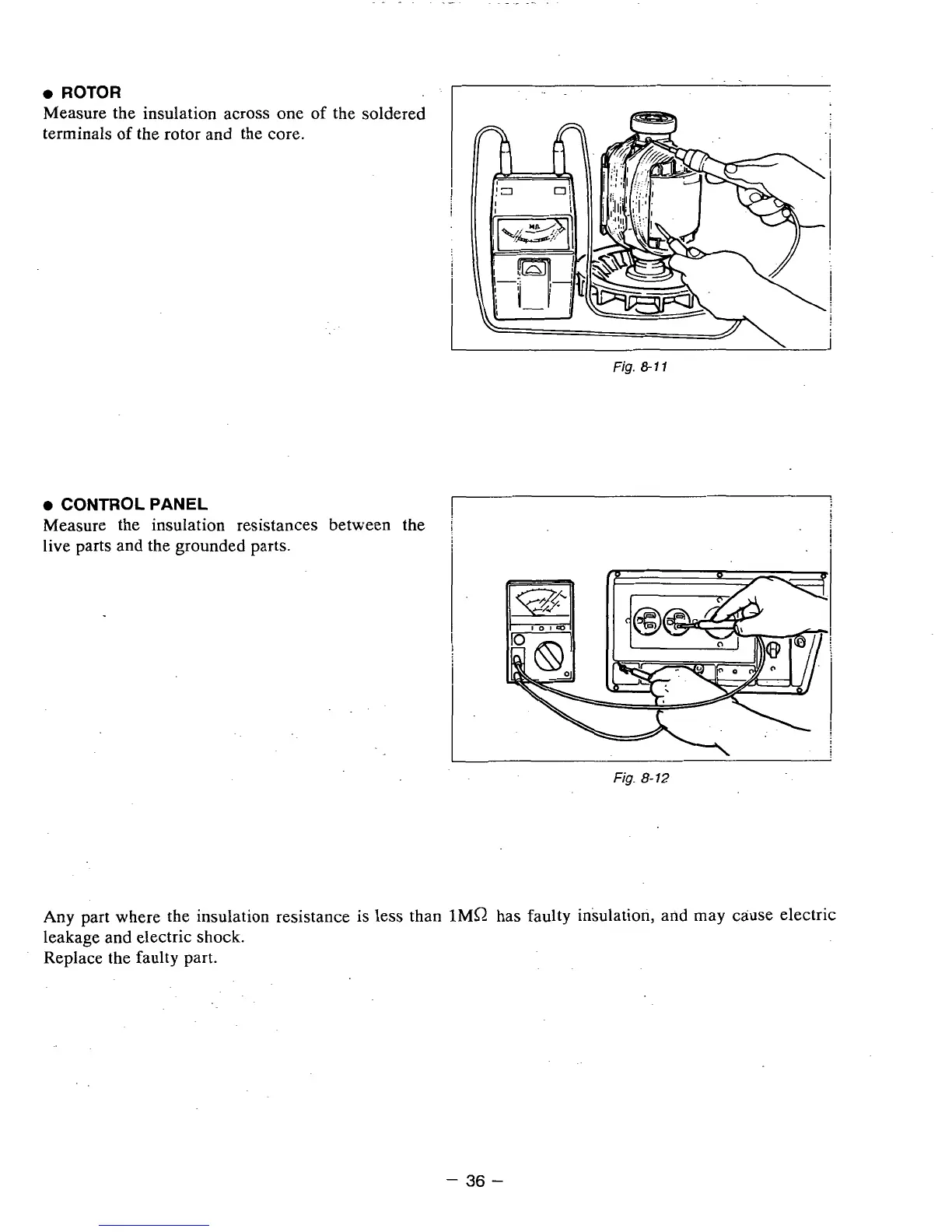

0 ROTOR
. ..
Measure the insulation across one of the soldered
terminals
of the rotor and the core.
0 CONTROL PANEL
Measure the insulation resistances between the
live parts and the grounded parts.
I\ I
Fig. 8- 1 1
Any part where the insulation resistance is less than 1MQ has faulty insulation, and may cause electric
leakage and electric shock.
Replace the faulty part.
