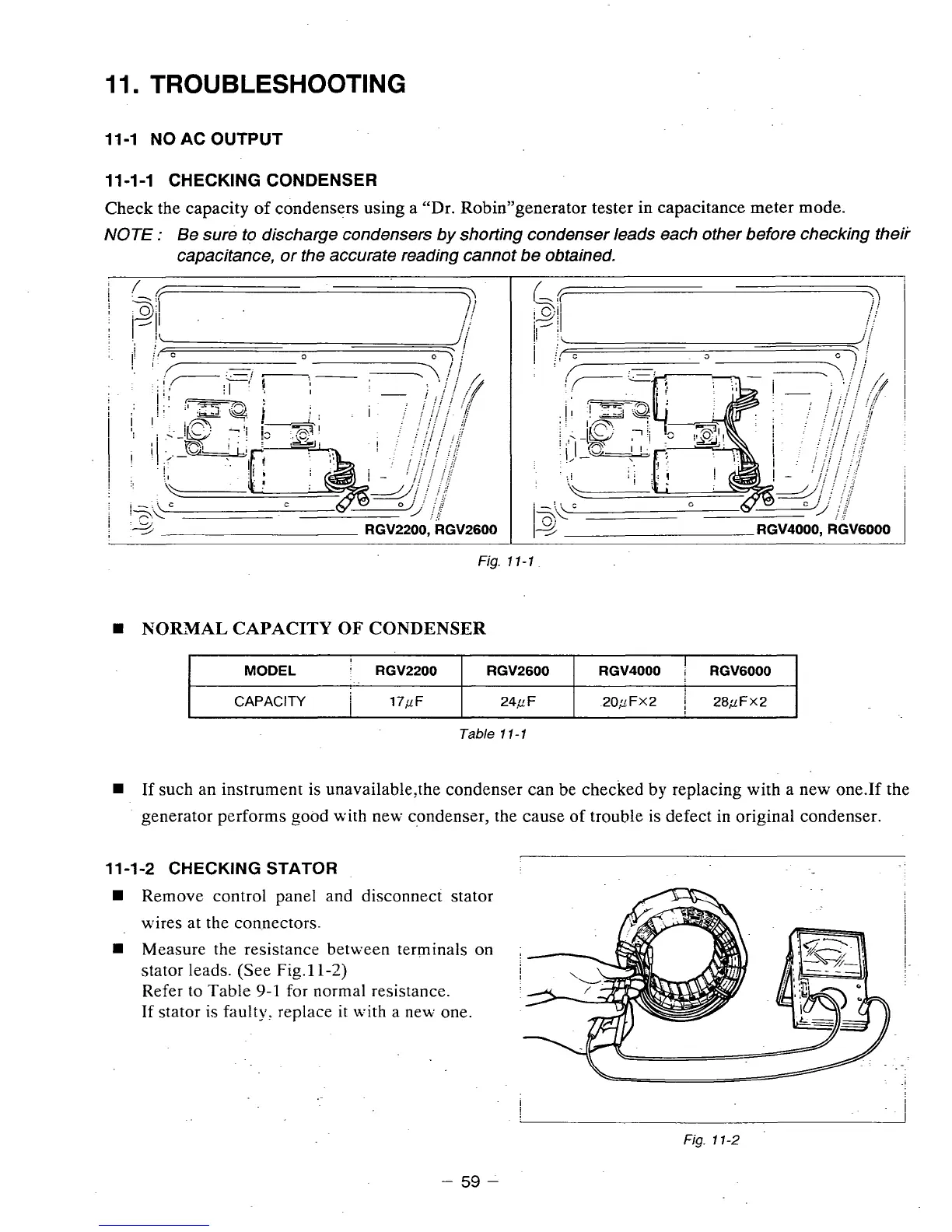

11.
TROUBLESHOOTING
11-1 NO AC
OUTPUT
11 -1 -1 CHECKING CONDENSER
Check the capacity
of
condensers using a “Dr. Robin”generator tester in capacitance meter mode.
NOTE
:
Be sure to discharge condensers by shorting condenser leads each other before checking their
capacitance, or the accurate reading cannot be obtained.
Fig.
11-1
NORMAL CAPACITY
OF
CONDENSER
I
MODEL
’
RGV2200
I
RGV2600
I
RGV4000
1
RGV6000
I
CAPACITY
j
17.2
F 20,2Fx2
i
28cFX2
24y
F
!
Table
11-1
If such an instrument
is
unavailable,the condenser can be checked
by
replacing with a new one.If the
generator performs
good
with new condenser, the cause
of
trouble
is
defect in original condenser.
11-1-2 CHECKING
STATOR
~.
Remove control panel and disconnect stator
wires at the connectors.
Measure the resistance between terminals
on
stator leads. (See Fig1 1-2)
Refer to Table
9-1
for
normal resistance.
If
stator
is
faulty: replace
it
\vith
a new one.
Fig.
1
1-2
-
59
-
