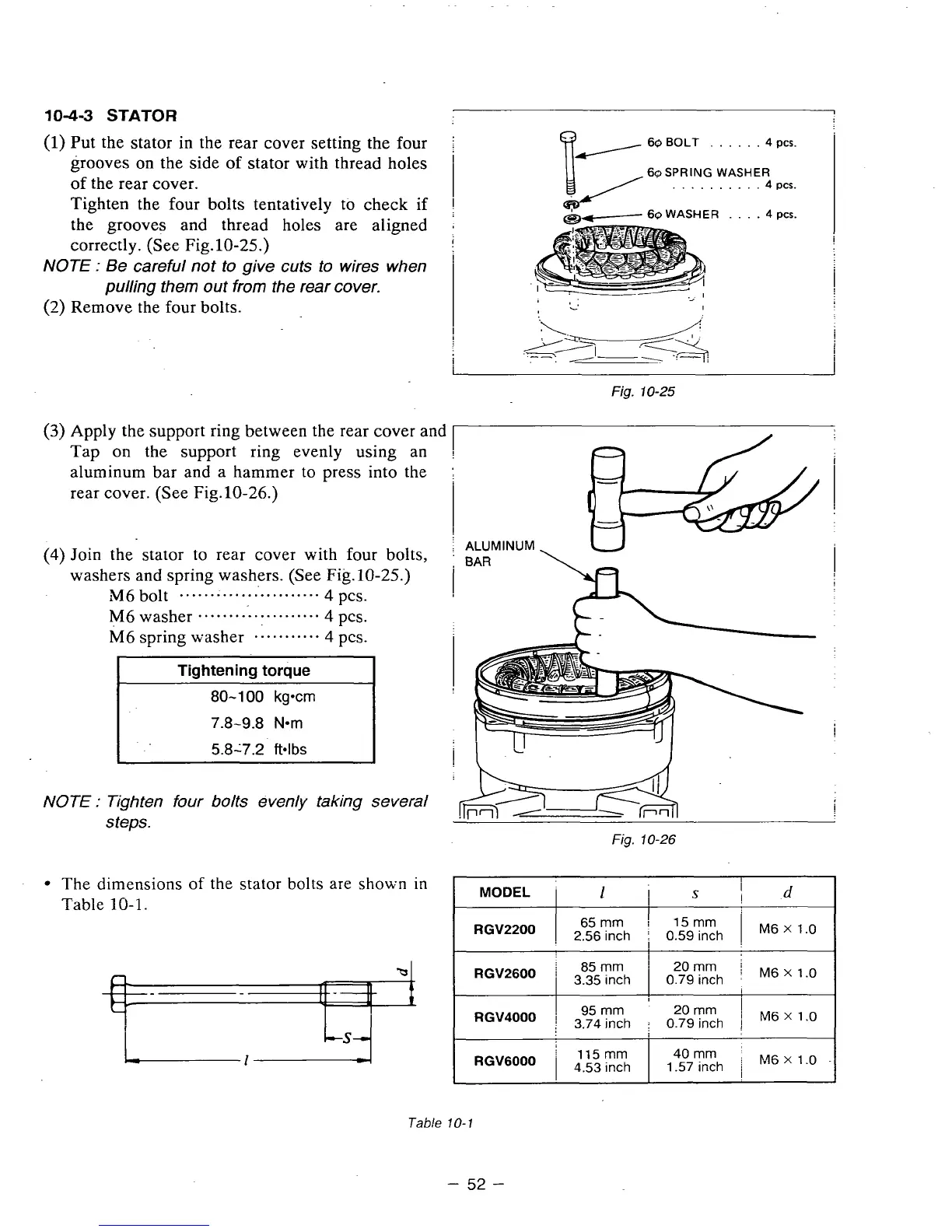

10-4-3 STATOR
1
(1) Put the stator in the rear cover setting the four i
grooves on the side of stator with thread holes
of the rear cover. i
......
e"----
60 BOLT 4 pcs.
60 SPRING WASHER
/ .......... .4 pcs.
I
Tighten the four bolts tentatively to check if
I
the grooves and thread holes are aligned
I
correctly. (See Fig.10-25.)
!
pulling them out from the rear cover. I
....
B-
60 WASHER 4 pcs.
NOTE : Be careful not to give cuts to wires when
(2) Remove the four bolts.
i
a.
L
-
I
Fig. 10-25
(3) Apply the support ring between the rear cover and I /
Tap on the support ring evenly using an
aluminum bar and a hammer to press into the
rear cover. (See Fig.lO-26.)
(4) Join the stator to rear cover with four bolts,
washers and spring washers. (See Fig. 10-25.)
M6 bolt .......................
M6 washer ....................
4 pcs.
4 pcs.
M6 spring washer ........... 4 pcs.
80-1 00 kgwn
7.8-9.8 Nom
5.8L7.2 ft-lbs
NOTE: Tighten four bolts evenly taking several
steps.
The dimensions of the stator bolts are shown in
Table 10-1.
; ALUMINUM
I
Fig. 10-26
MODEL '
lI S id !
65mm 1 15mm
RGV2200 , 2.56 inch i 0.59 inch ,
i
RGV2600 3.35 inch
' 85mm ! 20mm j M6x ,.o
' 2o mm I M6 X 1.0
0.79 inch
I
95 mm
RGV4000 I 3.74 inch ; 0.79 inch !
I RGV6000 1 4.53 inch 1.57 irxh
: 115mm
I 40 mm b.16 X 1.0 -1
Tab!e 70- 7
- 52 -
