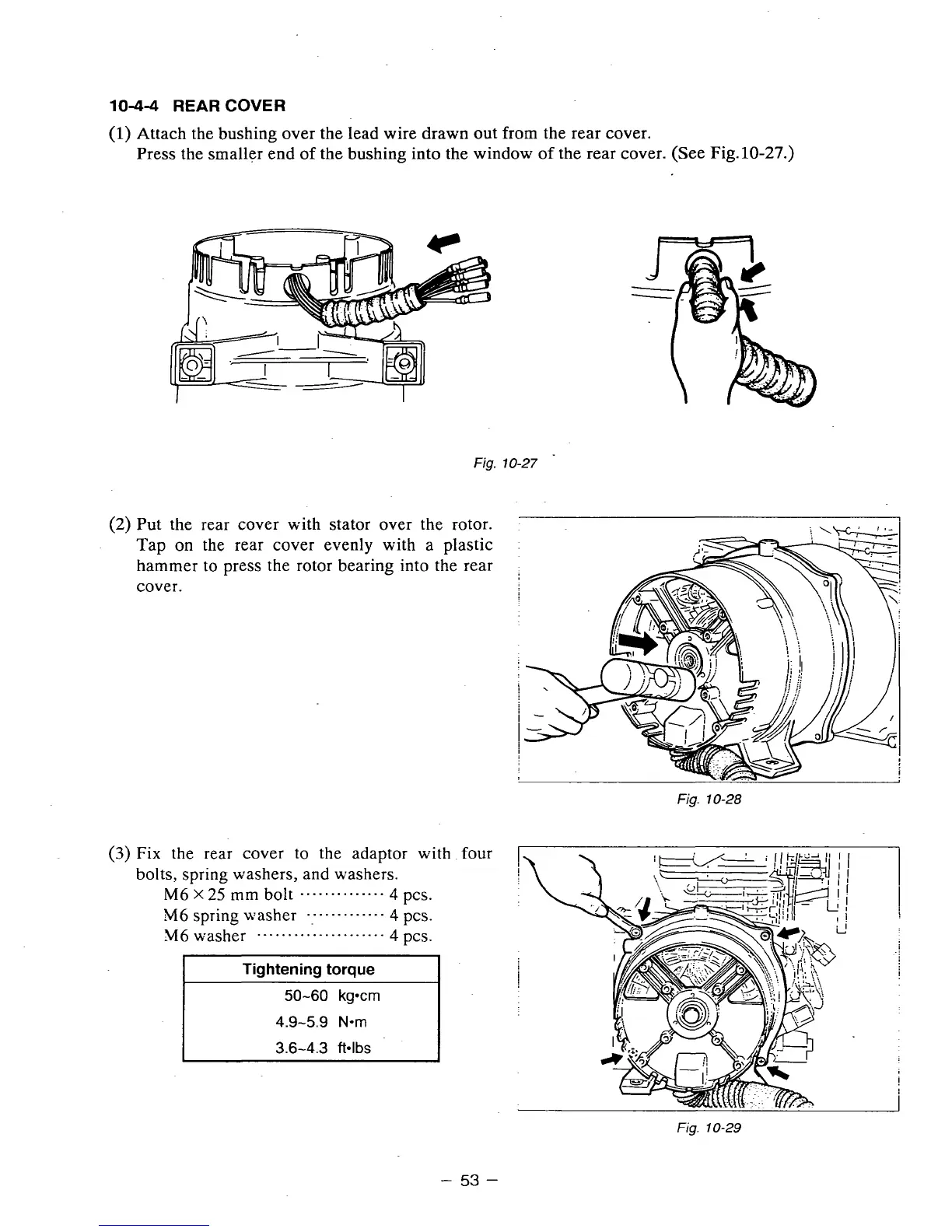

10-4-4
REAR
COVER
(1)
Attach the bushing over the lead wire drawn out from the rear cover.
Press the smaller end
of
the bushing into the window
of
the rear cover. (See Fig.10-27.)
Fig.
10-27
Put the rear cover with stator over the rotor.
Tap
on
the rear cover evenly with a plastic
hammer to press the rotor bearing into the rear
cover.
Fig.
10-28
Fix
the rear cover to the adaptor with
bolts,
spring
washers, and washers.
M6
x
25
mm
bolt
..............
4
pcs.
4
pcs.
M6
spring washer
.............
4
pcs.
346
washer
.....................
50-60
kg-cm
4.9-5.9
Nom
3.6-4.3
ft-lbs
four
Fig.
10-29
-
53
-
