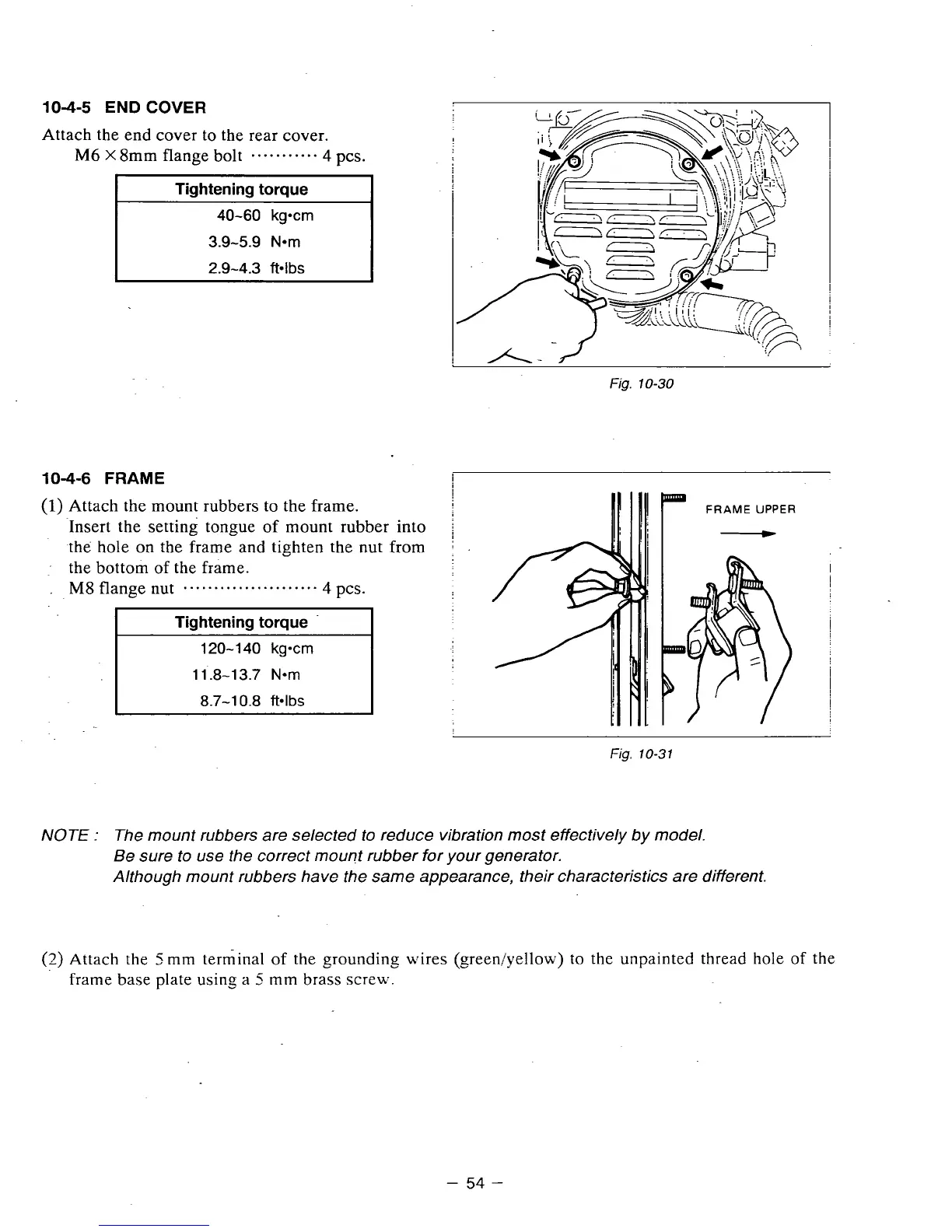

10-4-5
END
COVER
Attach the end cover
to
the rear cover.
M6
X
8mm flange bolt
-----.---..
4
pcs.
40-60 kg*cm
3.9-5.9 N-m
2.9-4.3
ft-lbs
10-4-6
FRAME
(1)
Attach the mount rubbers
to
the frame.
Insert the setting tongue of mount rubber into
the hole on the frame and tighten the nut from
the bottom of the frame.
M8
flange nut
.
.
.
.
.
. . . . . .
.
.
.
. . . .
. .
.
.
4
pcs.
Tightening torque
120-1
40 kg-cm
1
1.8-1 3.7
Nom
8.7-1 0.8
ft*lbS
Fig.
10-30
r-
FRAME
UPPER
Fig.
10-31
NOTE
:
The mount rubbers are selected to reduce vibration most effectively by model.
Be sure to use the correct mount rubber for your generator.
Although mount rubbers have the same appearance, their characteristics are different.
(2)
Attach the
5
mm terminal
of
the grounding wires (green.:pellow) to the unpainted thread hole of the
frame base plate using
a
5
mm brass
scrsLv.
-
54
-
