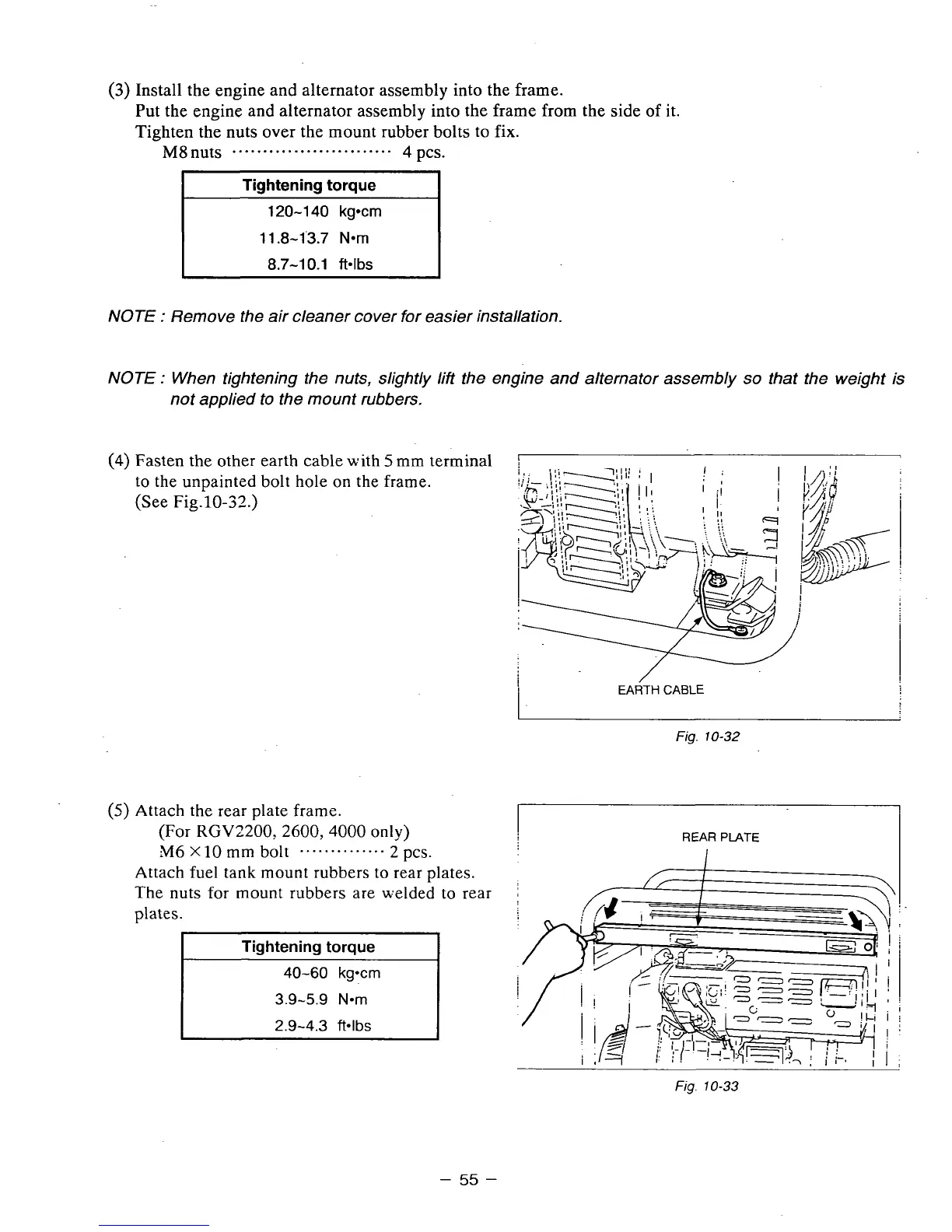

(3)
Install the engine and alternator assembly into the frame.
Put the engine and alternator assembly into the frame from the side of
it.
Tighten the nuts over the mount rubber bolts to fix.
Mgnuts
..........................
4
pcs.
I
Tightening torque
1
120-1
40
kgwn
11.8-1.3.7
Nom
8.7-1
0.1
ftolbs
NOTE
:
Remove the air cleaner cover for easier installation.
NOTE
:
When tightening the nuts, slightly lift the engine and alternator assembly
so
that the weight is
not applied to the mount rubbers.
(4)
Fasten the other earth cable with
5
mm terminal
to the unpainted bolt hole on the frame.
(See Fig.10-32.)
(5)
Attach the rear plate frame.
(For
RGV2200,2600,4000 only)
"6
x
10
mm
bolt
..............
2 pcs.
Attach fuel tank mount rubbers to rear plates.
The nuts
€or
mount rubbers are welded
to
rear
plates.
I
Tightening torque
I
40-60
kg-cm
3.9-5.9
N-rn
2.9-4.3
f?*lbs
EARTH
CABLE
Fig.
10-32
REAR
PLATE
I
...
Fig.
10-33
-
55
-
