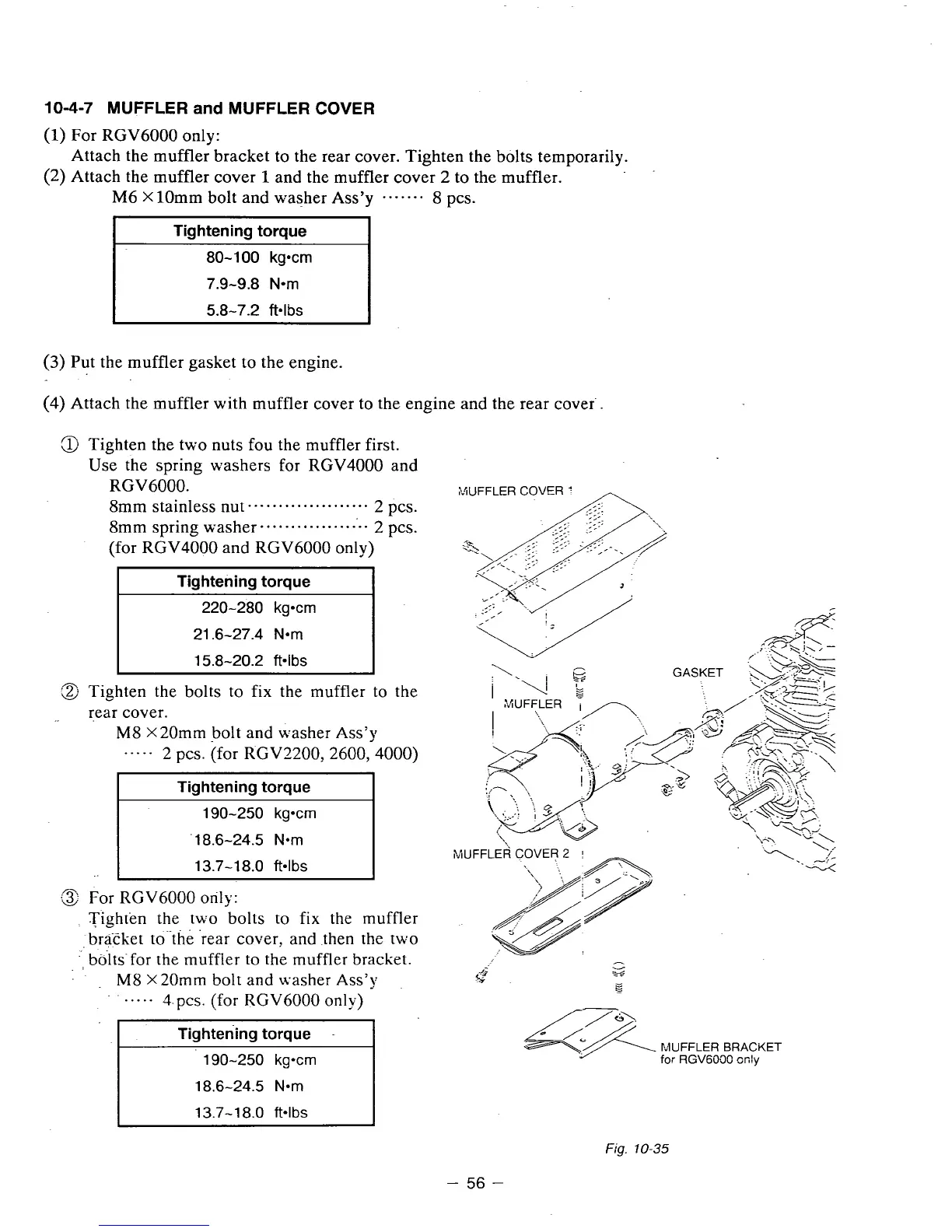

104-7
MUFFLER
and
MUFFLER COVER
(1)
For RGV6000 only:
(2) Attach the muffler cover
1
and the muffler cover
2
to the muffler.
Attach the muffler bracket to the rear cover. Tighten the bolts temporarily.
M6
X
lOmm bolt and washer Ass'y
-.-----
8
pcs.
7.9-9.8 Nom
5.8-7.2
ft*lbs
(3)
Put the muffler gasket
to
the engine.
(4)
Attach the muffler with muffler cover to the engine and the rear cover.
:&
Tighten the two nuts fou the muffler first.
P
Use
the spring washers €or RGV4000 and
RGV6000.
8mm
stainless nut.
...................
8mm spring washer..
.................
2 pcs.
2
pcs.
(for RGV4000 and RGV6000 only)
220-280
kgwn
21.6-27.4 Nom
15.8-20.2
ft-lbs
:z
Tighten the bolts to fix the muffler to the
A
rear cover.
M8
X20mm bolt and washer
Ass')'
.-.-.
2 pcs. (for RGV2200, 2600,
4000)
190-250
kg-crn
18.6-24.5 Nom
13.7-1 8.0
ft*lbS
is
For RGV6000 only:
Tighten the two bolts
to
fix
the muffler
bracket to.the 'rear cover: and .then the two
-..
bolts-for the muffler to the muffler bracket.
M8
X20mm
bolt and Lvasher
Ass'y
.....
-
.
3-pcs.
(for RGV6000 only)
190-250
kg-cm
18.6-24.5 Nom
13.7-1 8.0
ft*lbS
Fig.
10-35
-
56
-
To Next Page
