(5)
For
RGV2200, RGV2600 and RGV4000 only
:
Attach the rear plate to the frame.
M6
X
1Omm bolt
...............
2 pcs.
I
Tightening torque
I
40-60 kg-cm
3.9-5.9 Nom
2.9-4.3
ft*lbs

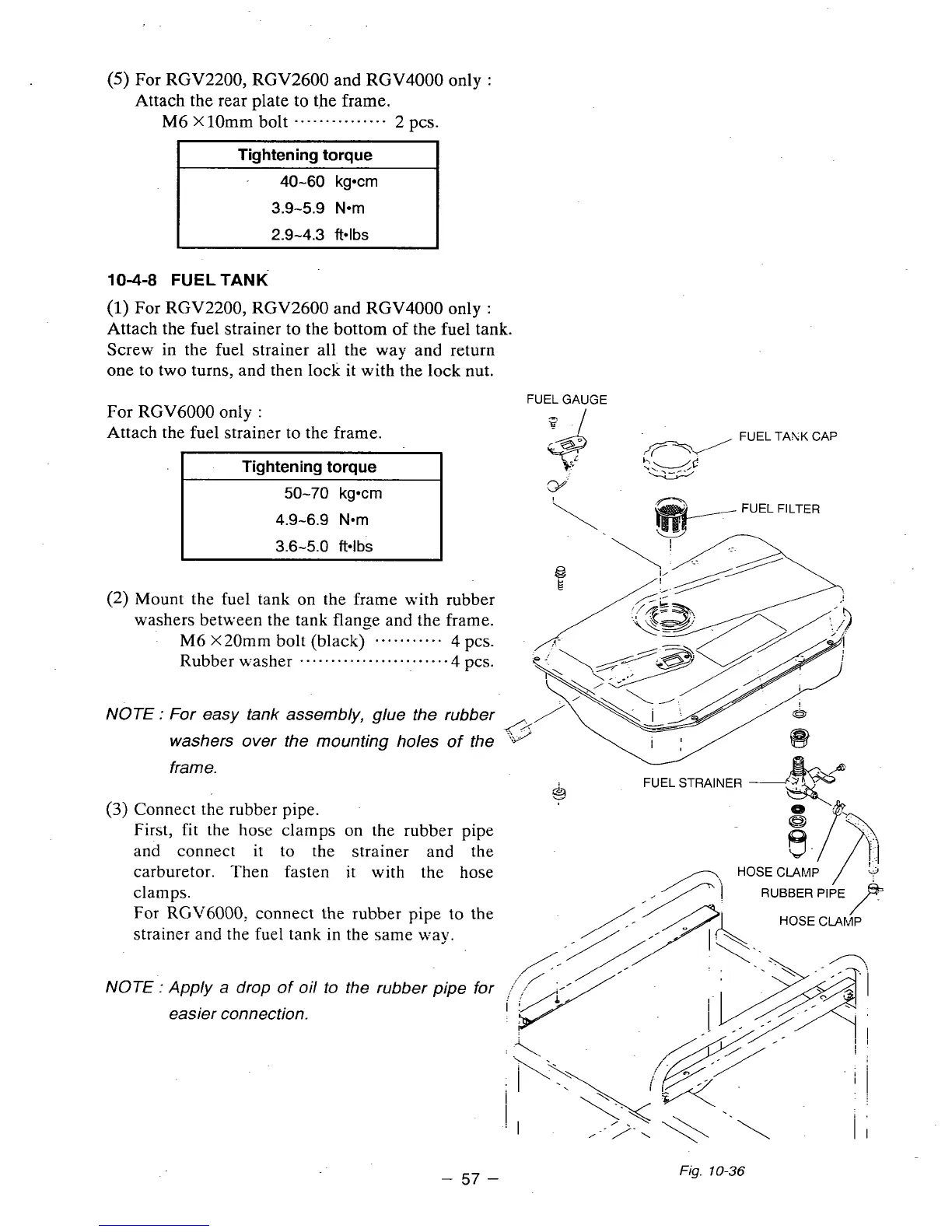

10-4-8
FUEL
TANK
(1)
For
RGV2200, RGV2600 and RGV4000 only
:
Attach the fuel strainer to the bottom
of
the fuel tank.
Screw in the fuel strainer all the way and return
one to two turns, and then lock it with the lock nut.
For
RGV6000
only
:
Attach the fuel strainer
to
the frame.
FUEL TAXK CAP
FUEL GAUGE
4.9-6.9 Nom
(2)
Mount the fuel tank
on
the frame with rubber
washers between the tank flange
and
the frame.
M6 X20mm bolt (black)
...........
Rubber \%-asher
........................
NOTE
:
For easy tank assembly, glue the rubber
/;.
washers over the mounting holes
of
the
Y'
frame.
(3)
Connect the rubber pipe.
First,
€it
the hose clamps
on
the rubber pipe
and connect
it
to
the strainer and the
carburetor. Then fasten
it
with the hose
HOSE
CUMP
clamps.
For
RGV6000,
connect the rubber pipe
to
the
strainer and the fuel tank
in
the same wag.
easier connection.
-
57
-
Fig.
10-36
