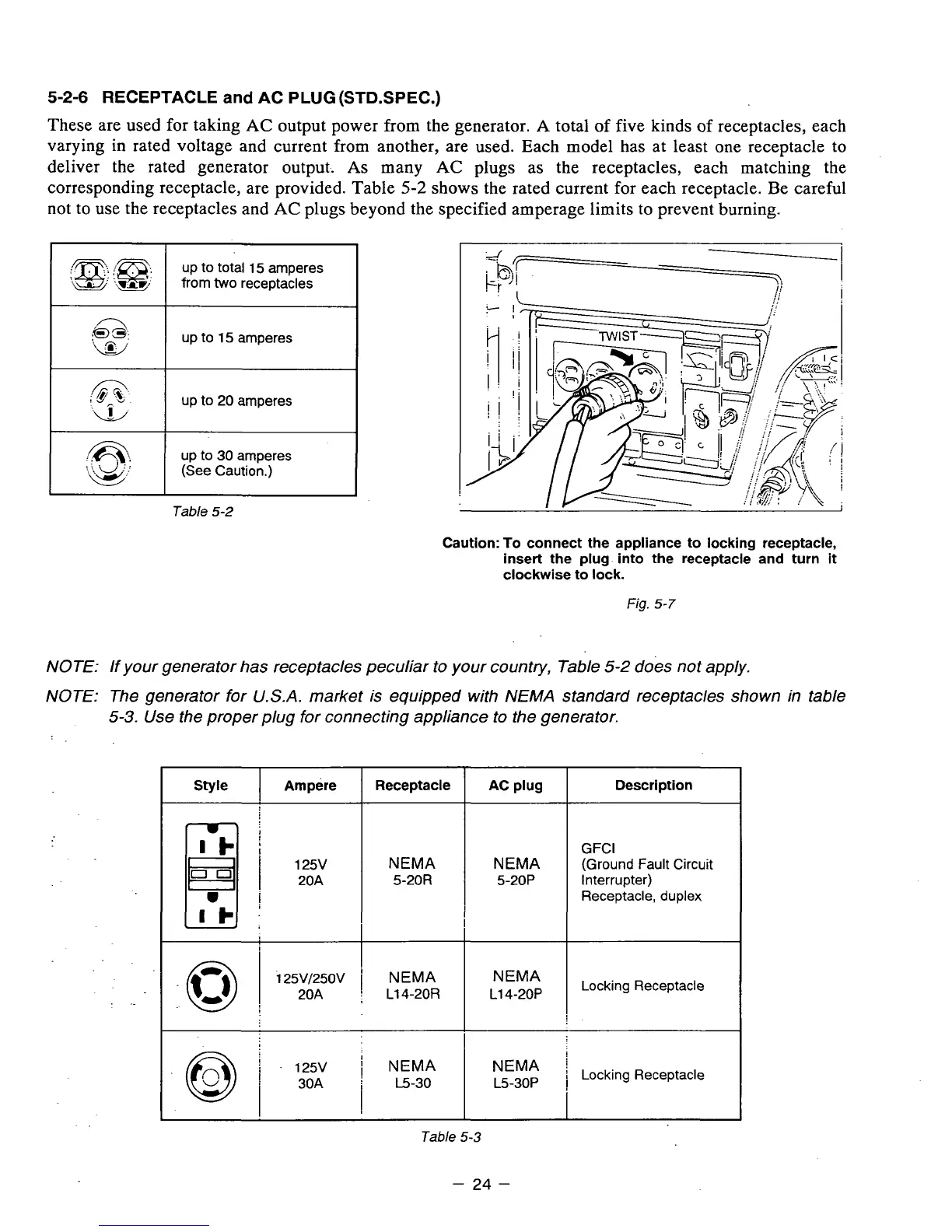

5-2-6
RECEPTACLE
and
AC PLUG (STD.SPEC.)
These are used for taking
AC
output power from the generator.
A
total
of
five kinds of receptacles, each
varying in rated voltage and current from another, are used. Each model has at least one receptacle to
deliver the rated generator output.
As
many
AC
plugs as the receptacles, each matching the
corresponding receptacle, are provided. Table
5-2
shows the rated current for each receptacle. Be careful
not to use the receptacles and
AC
plugs beyond the specified amperage limits to prevent burning.
I
I
up
to
30
amperes
(See Caution.)
I
I
Table
5-2
Caution:
To
connect the appliance to locking receptacle,
insert the plug into the receptacle and turn it
clockwise to lock.
Fig. 5-7
NOTE: If your generator has receptacles peculiar to your country, Table
5-2
does not apply.
NOTE: The generator for
U.S.A.
market is equipped with
NEMA
standard receptacles shown in table
5-3.
Use the proper plug for connecting appliance to the generator.
Style
Ampere
125V
20A
Receptacle
NEMA
5-20R
NEMA
L14-20R
AC plug
NEMA
5-20P
NEMA
L14-20P
Description
GFCl
(Ground Fault Circuit
Interrupter)
Receptacle, duplex
Locking Receptacle
NEMA
Locking Receptacle
L5-30P
Table
5-3
-
