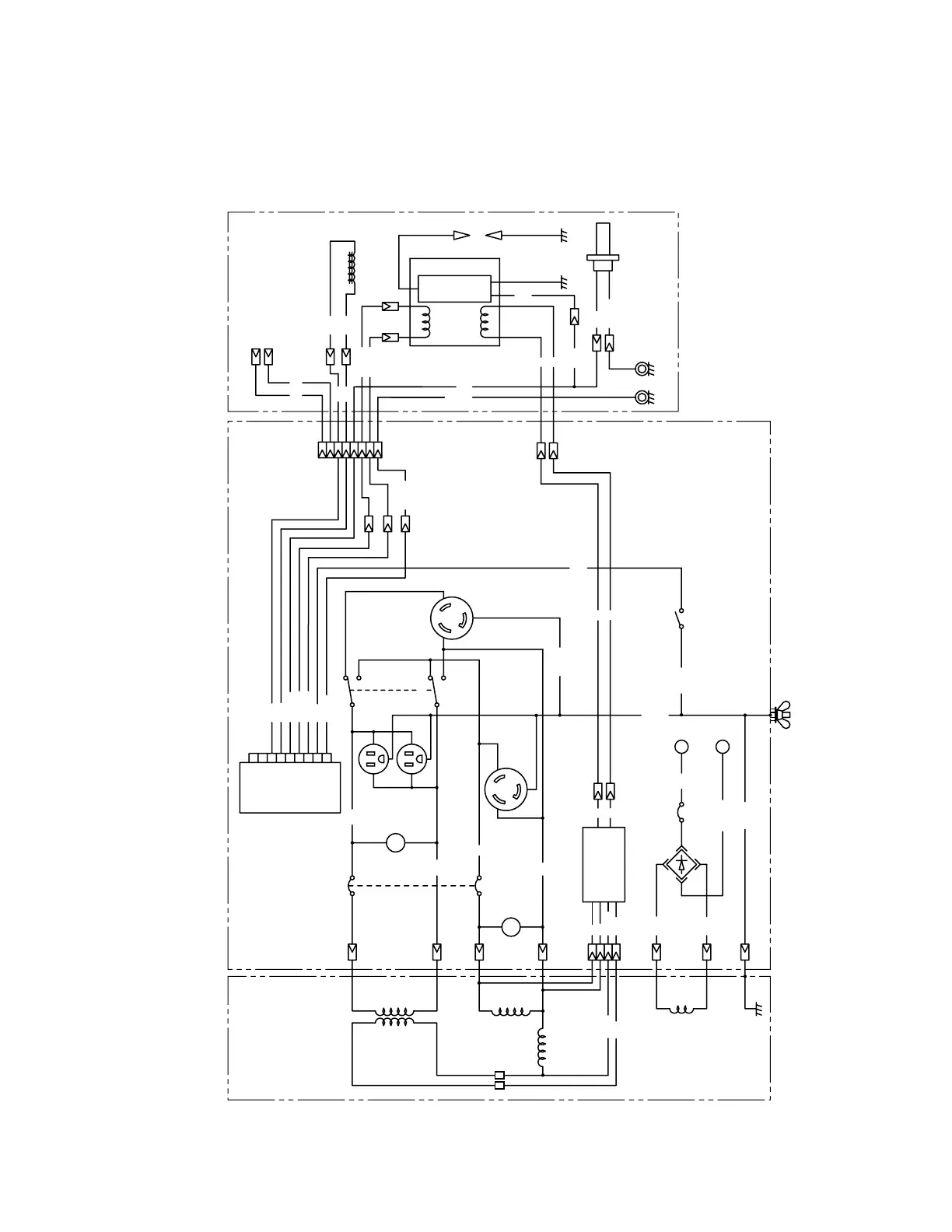

Robin RGV7500 Service Manual

- 56 -
P
V
+
-
8
9
1
5
3
6
7
4
REC2
GENERATOR CONTROL BOX
Field Winding
AC Winding 2 AC Winding 1
DC Winding
2
Blu
Blu
Blk/W
Grn/W
Grn/W
Blk
Grn/Y
Sub coil
Blu
Blk
No-fuse breaker
Pilot
lamp
R
Voltmeter
LGrn
Brn
LGrn
Brn
R W
Brn
Brn
W
Or
Brn/W
Grn/Y
Grn/Y
DC output
terminal
Circuit breaker
Diode stack
Assy
AVR
Earth
(Ground) terminal
Grn/Y
110/220V
110/220V
110V
110V
Full power
switch
Fuel
cut unit
REC1
ENGINE
Blk
Blk
Blk
Blk/W
Y
Y
Oil sensor
Grn/Y
Blk
Grn/W
Spark plug
Grn/Y
W
W
BluBlu
Blu
Blu
Fuel cut solenoid
Grn/W
Charge
coil
Exciter
coil
Ignition coil
Brush (+)
Brush (
- )
Y
Y
Y
Y
Blk
Engine switch
Grn / Y
REC2
AC output
receptacle
(
110V
)
AC output
receptacle
(
110V/220V
)
AC output
receptacle
(
110V/220V
)
Recoil starter model (50Hz, 60Hz-110/220V, 60Hz-120/240V)
