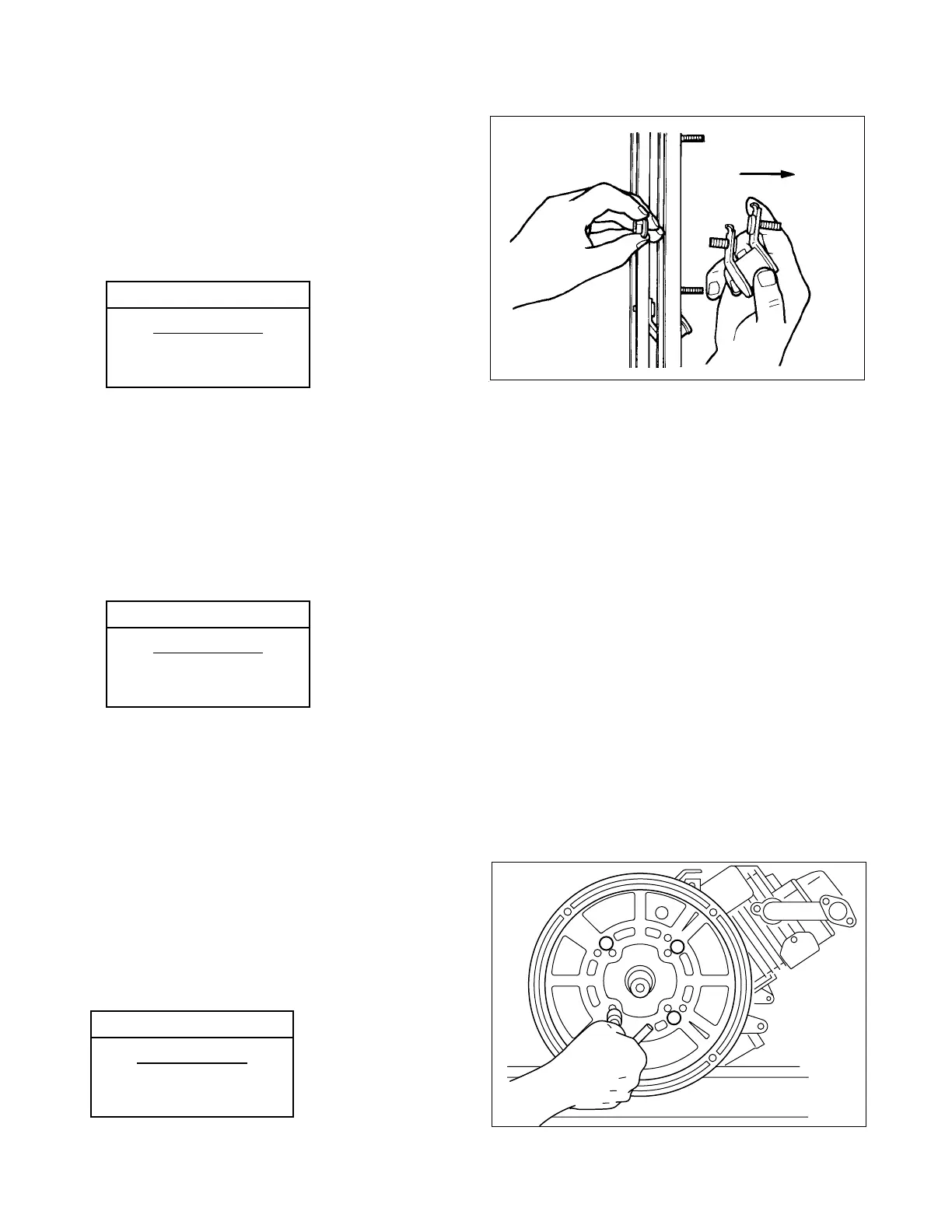

10-3 ASSEMBLY PROCEDURES
10-3-1 ENGINE and FRAME
(1) Attach the mount rubbers to the frame. Insert
the setting tongue of mount rubber into the hole
on the frame and tighten the nut from the bot-
tom of the frame.
M8 flange nut . . . 4 pcs.
NOTE : The mount rubbers are selected to reduce vibration most effectively by model. Be sure to use the
correct mount rubber for your generator. Although mount rubbers have the same appearance,
their characteristics are different.
(2) Install the engine into the frame from the side of it. Tighten the nuts over the mount rubber bolts to fix.
M8 nuts . . . 2 pcs.
NOTE : Remove the air cleaner cover for easier installation.
NOTE : When tightening the nuts, slightly lift the engine so that the weight is not applied to the mount
rubbers.
10-3-2 FRONT COVER
Attach the front cover to the engine main bearing
cover. Match the faucet joint and tighten the bolts.
M8 x 20 mm bolt . . . 4 pcs.
M8 spring washer . . . 4 pcs.
euqrotgninethgiT
m-N7.31-8.11
mc-gk041-021
bl-tf8.01-7.8
Fig. 10-22
FRAME UPPER
euqrotgninethgiT
m-N7.31-8.11
mc-gk041-021
bl-tf8.01-7.8
Fig. 10-23
euqrotgninethgiT
m-N7.31-8.11
mc-gk041-021
bl-tf1.01-7.8
