5. CONSTRUCTION AND FUNCTION
5-1 CONSTRUCTION
5-2 FUNCTION
5-2-1 STATOR
The stator consists of a laminated silicon steel
sheet core, a main coil and a condenser coil which
are wound in the core slots.
The condenser coil excites the rotor field coil which
generates AC voltage in the main coil.
Fig. 5-2

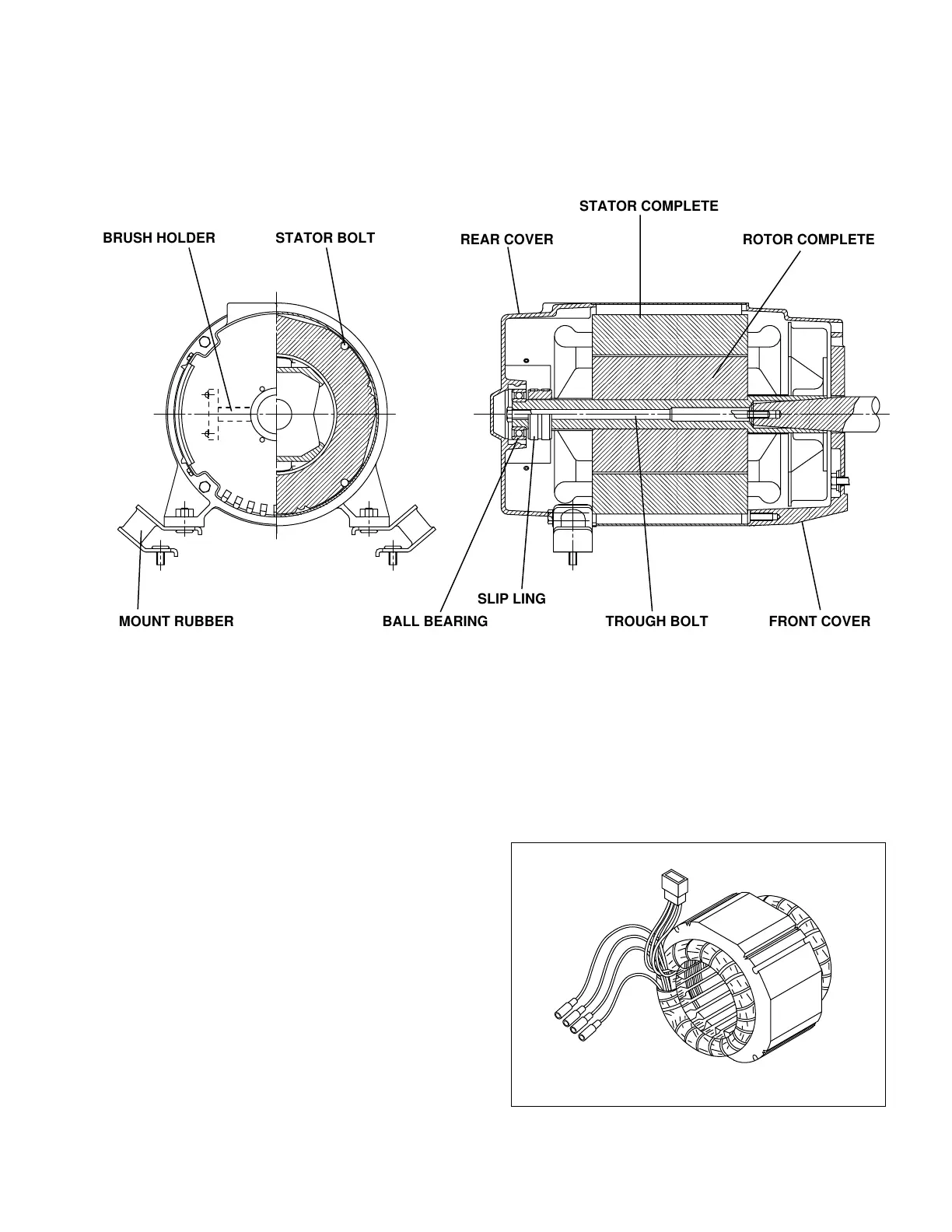

Fig. 5-1
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;
;;
;;
;
;
;
;
;
;
;;
;;
;;;;;;;;
;
;
;;;;;;;
;;;;;;;
;;;
;;;
;
;
;
;
;
;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
MOUNT RUBBER BALL BEARING TROUGH BOLT FRONT COVER
REAR COVER ROTOR COMPLETE
STATOR COMPLETE
STATOR BOLT
;;;;
;;
;;
;;
;;
;;
;;
;;;
;;;
BRUSH HOLDER
SLIP LING
