53
-

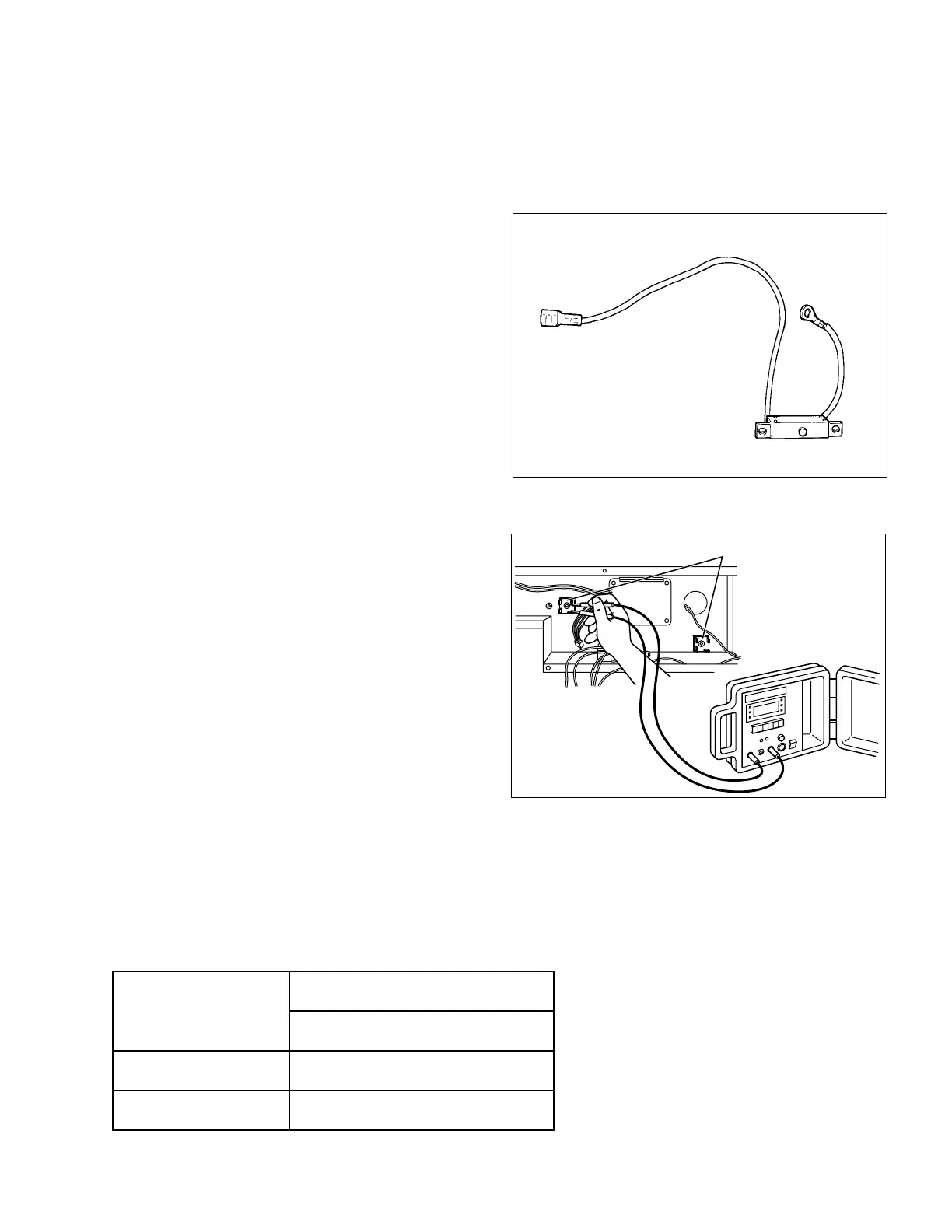

Fig. 11-8
Fig. 11-9
11-4 NO DC OUTPUT
11-4-1 CHECK THE AC OUTPUT.
Check the generator by following Step 11-1-1 through Step 11-1-2.
11-4-2 CHECK THE DC BREAKER.
If the DC breaker turned off while charging a bat-
tery, check the cables for short-circuit or connec-
tion in reverse polarity before resetting it on.
NOTE : If the DC output is used to charge a large
capacity battery or an over-discharged
battery, an excessive current may flow
causing.
11-4-3 CHECK THE WIRING.
Check all the wires to be connected correctly.
11-4-4 CHECK THE DIODE RECTIFIER.
Remove the control panel and check the diode
rectifier with a circuit tester.
Refer to Section 9-7 “DIODE RECTIFIER” for the
checking procedure.
11-4-6 CHECK THE DC COIL
Check the resistance between two brown leads from stator with a circuit tester.
If the resistance reading is much larger or smaller than the specified value, the DC coil of the stator is
faulty. Replace stator with a new one.
Table. 11-3
egatloV-zH
liocCD
neergthgiL/etihW
011-05 〜 04297.0 Ω
042/021-0616.0 Ω
