43
-
Fig. 10-25b
STATOR COVER
STATOR
COVER BOLT
: 4 pcs.
STATOR
ROTOR
FRONT COVER

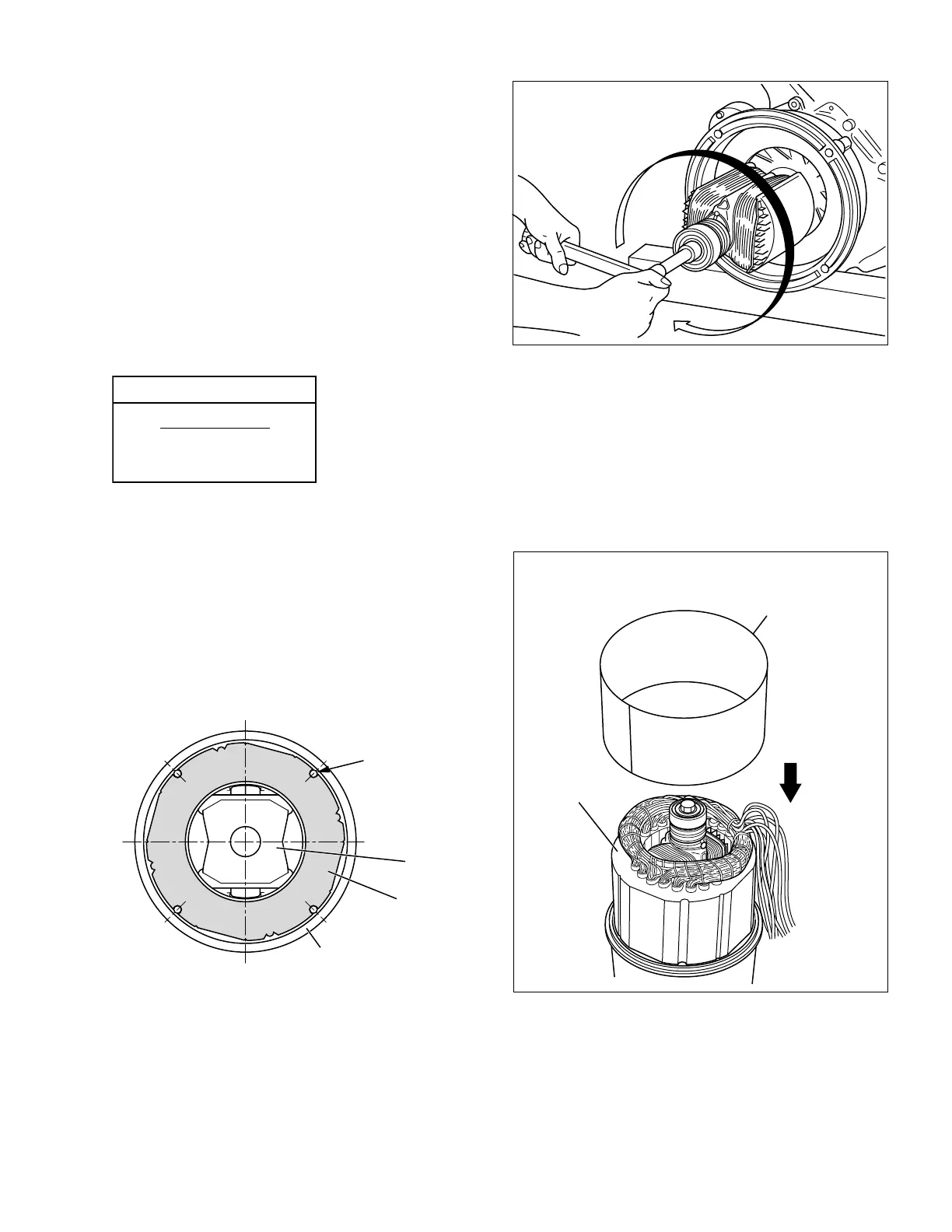

10-3-3 ROTOR
(1) Wipe off oil, grease and dust from the tapered
portion of engine shaft and matching tapered
hole of rotor shaft.
(2) Mount the rotor to the engine shaft. Tighten
the through bolt. Apply a wrench on the through
bolt and hit wrench handle clockwise with a
hammer to tighten. If an impact wrench is
available, use it.
Tightening torque :
10-3-4 STATOR
(1) Put the stator in the rear cover setting the four
grooves on the side of stator with thread holes
of the rear cover.
(2) Attach the stator cover around the stator.
Fig. 10-24
euqrotgninethgiT
m-N5.42-5.22
mc-gk052-032
bl-tf5.81-6.61
Fig. 10-25a
To Next Page
