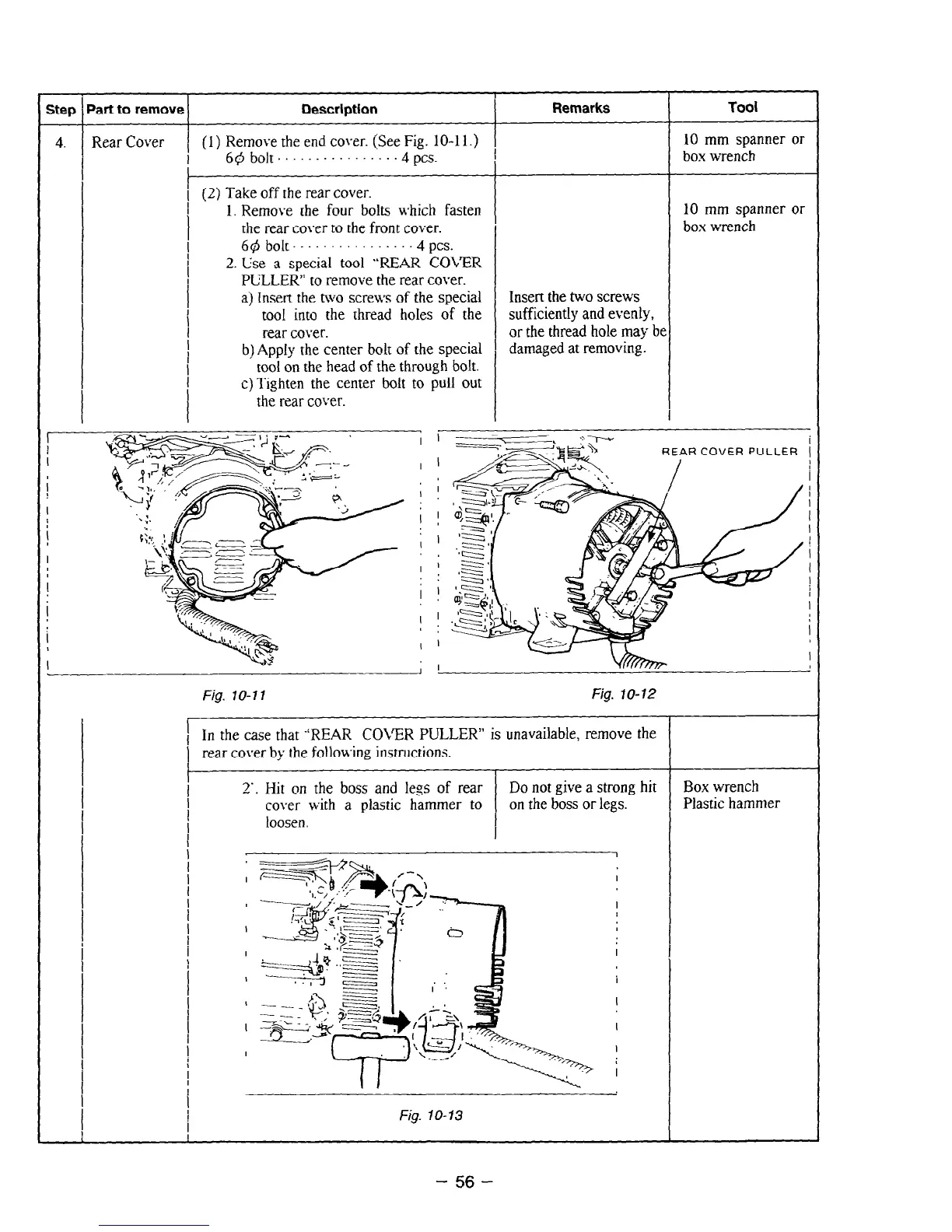

Step
4.
Part to remove
Rear Cover
Description
(1) Remove the end cover. (See Fig. 10-l 1.)
6Q bolt. . . . . .4 PCS.
(2) Take off the rear cover.
1. Remove rhe four bolts which fasten
the rear cover to the front cover.
64 bolt . .4 PCS.
2. Use a special tool “REAR COVER
PULLER” to remove the rear cover.
a) Insert the two screv.s of the special
tool into the thread holes of the
rear cover.
b> Apply the center bolt of the special
tool on the head of the through bolt.
c)Tighten the center bolt to pull out
the rear cover.
Remarks
Insert the two screws
sufficiently and evenly,
or the thread hole may be
damaged at removing.
Tool
10 mm spanner or
box wrench
10 mm spanner or
bos wrench
Fig. la-li Fig. 70-72
In the case that -‘REAR CO\‘ER PULLER” is unavailable, remove the
rear cover by the following instructions.
2’. Hit on the boss and legs of rear Do not give a strong hit
cover Lvith a plastic hammer to
loosen.
I
on the boss or legs.
Fig. IO-13
- 56 -
Box wrench
Plastic hammer
To Next Page
