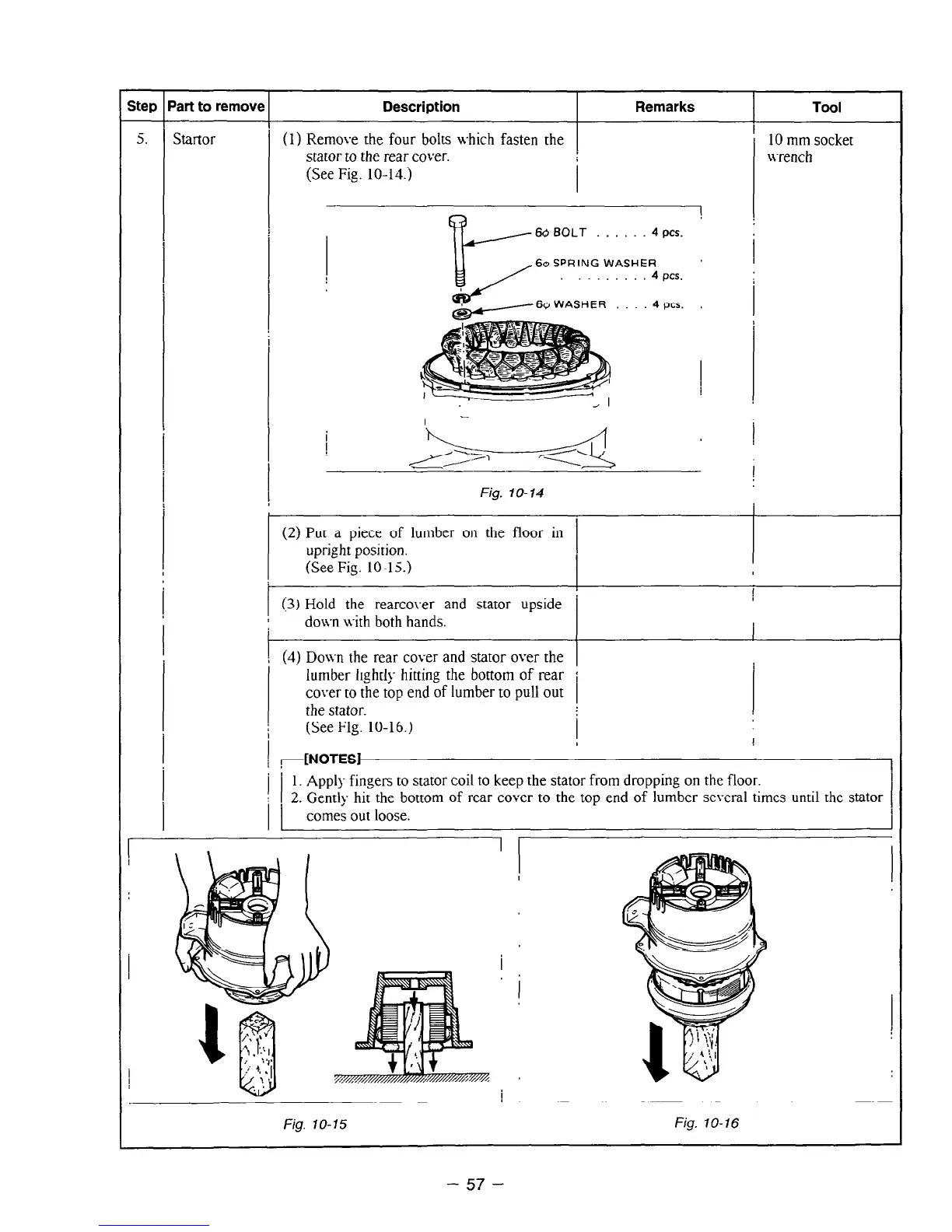

Step
5.
Part to remove
Startor
Description
(1) Remove the four bolts which fasten the
stator to the rear cover.
(See Fig. 10-14.)
Remarks
Tool
1 10 mm socket
wench
&BOLT . 4~~s.
60 SPRING WASHER
60 WASHER 4~~s.
Fig. lo-14
(2) Put a piece of lumber on the floor in
upright position.
(See Fig. 10-15.)
I
1
1 I
1 (3) Hold the rearcover and stator upside
doxvn Lx-ith both hands.
I
I
I
(4) Dolvn the rear cover and stator over the
lumber hghtlp hitting the bottom of rear i
cover to the top end of lumber to pull out 1
the stator.
I
(See Fig. 10-16.:)
r[NOTESl
I
!
Apply fingers to stator coil to keep the stator from dropping on the floor.
, 2. Gently hit the bottom of rear cover to the top end of lumber several times until the stator
comes out loose.
Fig. 10-15
Fig, lo-16
- 57 -
