9RF-RBWS02

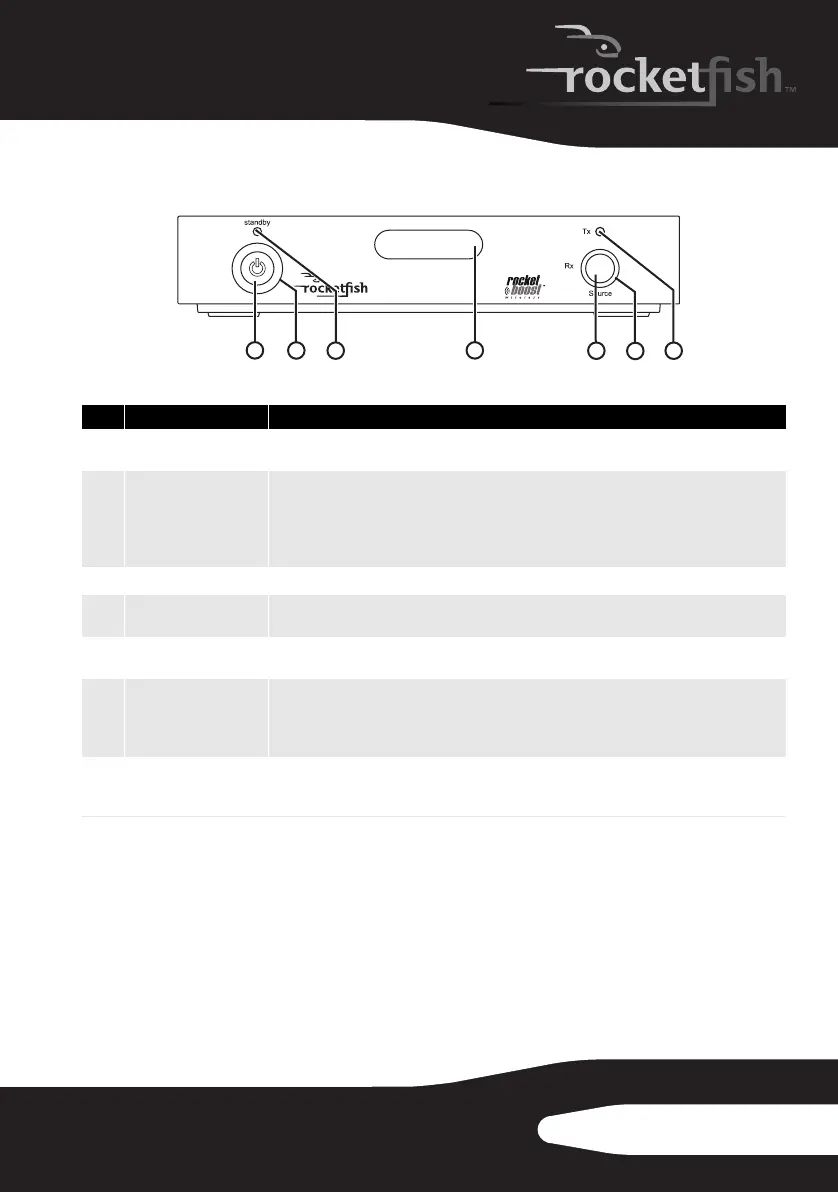

Sender/receiver (front panel)
# Feature Description
1
Power/Join button Press to turn the sender/receiver on. Press and hold to initiate joining. Press again to go to
standby mode. When you connect the AC power adapter, the device turns on automatically.
2
Power/Join indicator Lights blue when the HUB STATUS switch is set to DISABLE.
Lights green when the HUB STATUS switch is set to ENABLE.
The indicator will turn solid when it is joined in a network, if the device is not in a network,
the indicator blinks slowly. When the device is put in joining mode, the indicator blinks
rapidly.
3
Standby indicator Turns red when the sender/receiver is in standby mode.
4
Remote control sensor
window
Receives the signal from the remote control.
5
Source Press to select different audio streams on your Rocketboost network. Each press moves to the
next source.
6
Receiver mode indicator Turns blue when receiving audio from a Rocketboost sender. Blinks slowly if the current
source listened to is muted.
Note: This indicator will not be lit if the Rocketboost sender is turned off. Press the SOURCE
button to find the next available source.
7
Sender mode indicator Turns blue when sending audio.
Note: This indicator will light automatically when a 3.5 mm connector is attached to the
device (the device senses the cable connection).
TM
1
2
3
4
5
6
7
10-1209 RF-RBWSO2_MAN_V3.fm Page 9 Monday, October 25, 2010 2:23 PM
