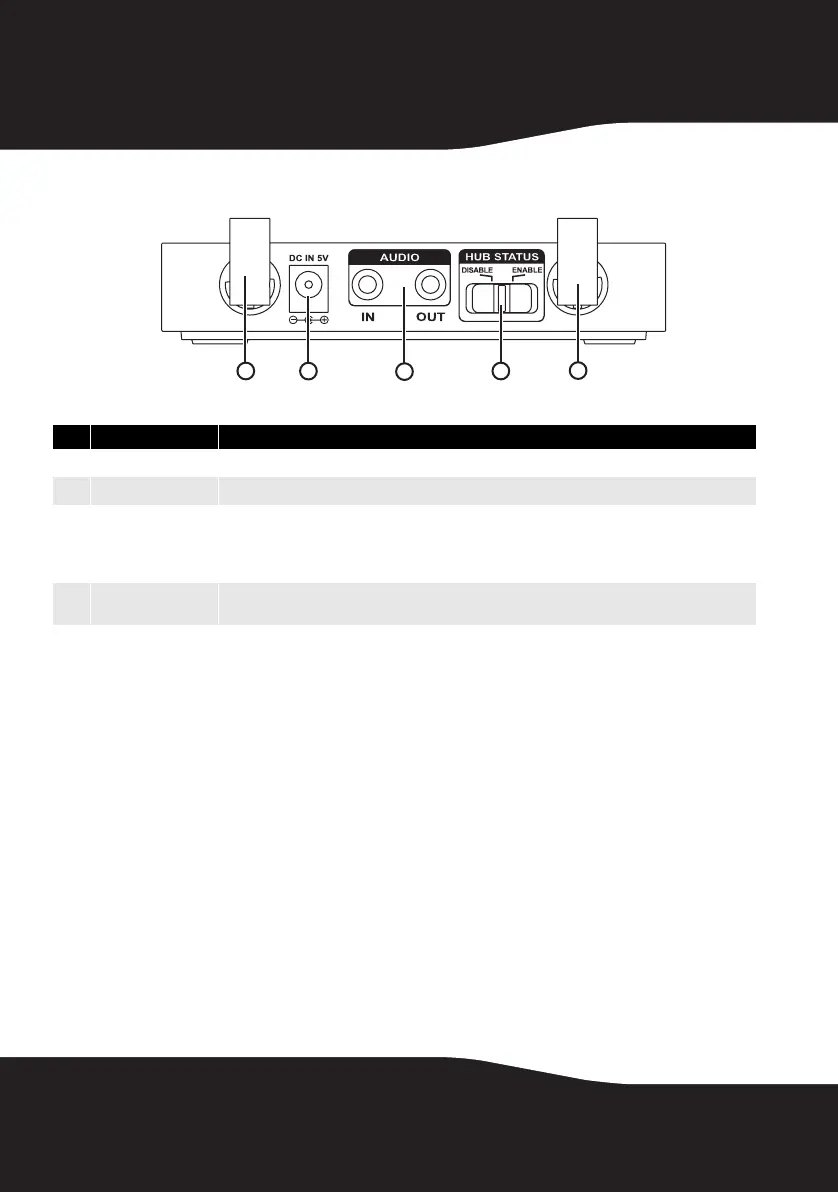

Sender/receiver (back panel)
# Feature Description
1
External antenna Receives audio from senders. Sends audio to receivers.
2
DC IN jack Plug the AC power adapter into this jack.
3
AUDIO IN/OUT jacks When used as a sender, plug an audio source device into the AUDIO IN jack.
When used as a receiver, plug your amplifier or amplified speakers into the AUDIO OUT jack.
Note, this device operates as both a sender and receiver, so you can use it simultaneously to send
and receive audio on your Rocketboost network.
4
HUB STATUS switch Enables and disables hub mode operation. See “Establishing communication” on page 21 for
more information.
1
2
3
4
1
