RockJam RJ660 - External Connections; LCD Display

EN | 5

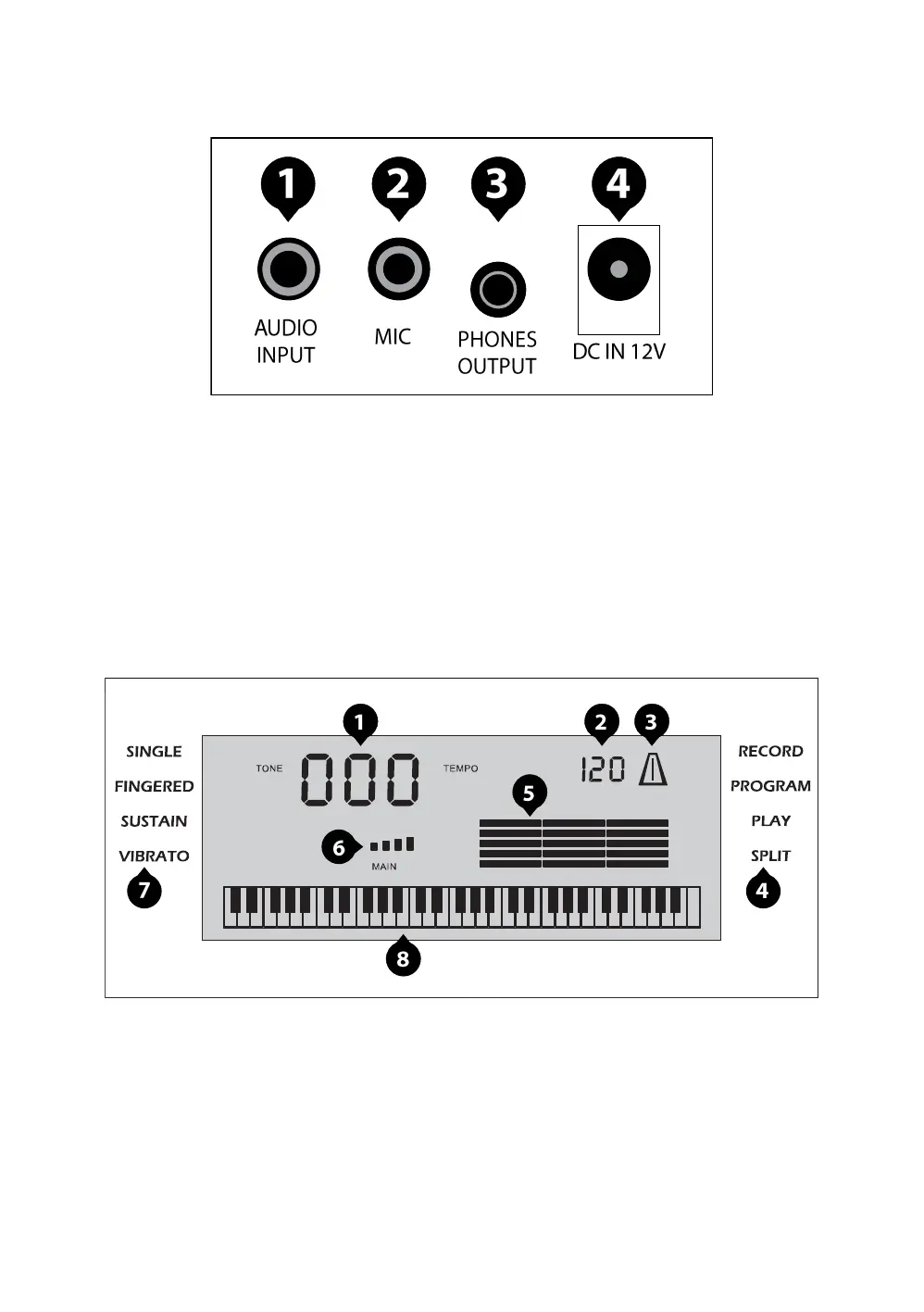

External Connections
LCD Display
1. AUDIO IN (For Music Playback)
2. MIC Input (For Electret Microphone)
3. Headphone Output
4. DC 12V Power Input
1. TONE, RHYTHM or DEMO song
2. Tempo value of rhythm and song (bpm)
3. Metronome for rhythm and song
4. Mode Indicator 1
5. Sound Equalizer
6. Volume level display
7. Mode Indicator 2
8. Key Indicator
