188 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022
Chapter 9 Motion Control

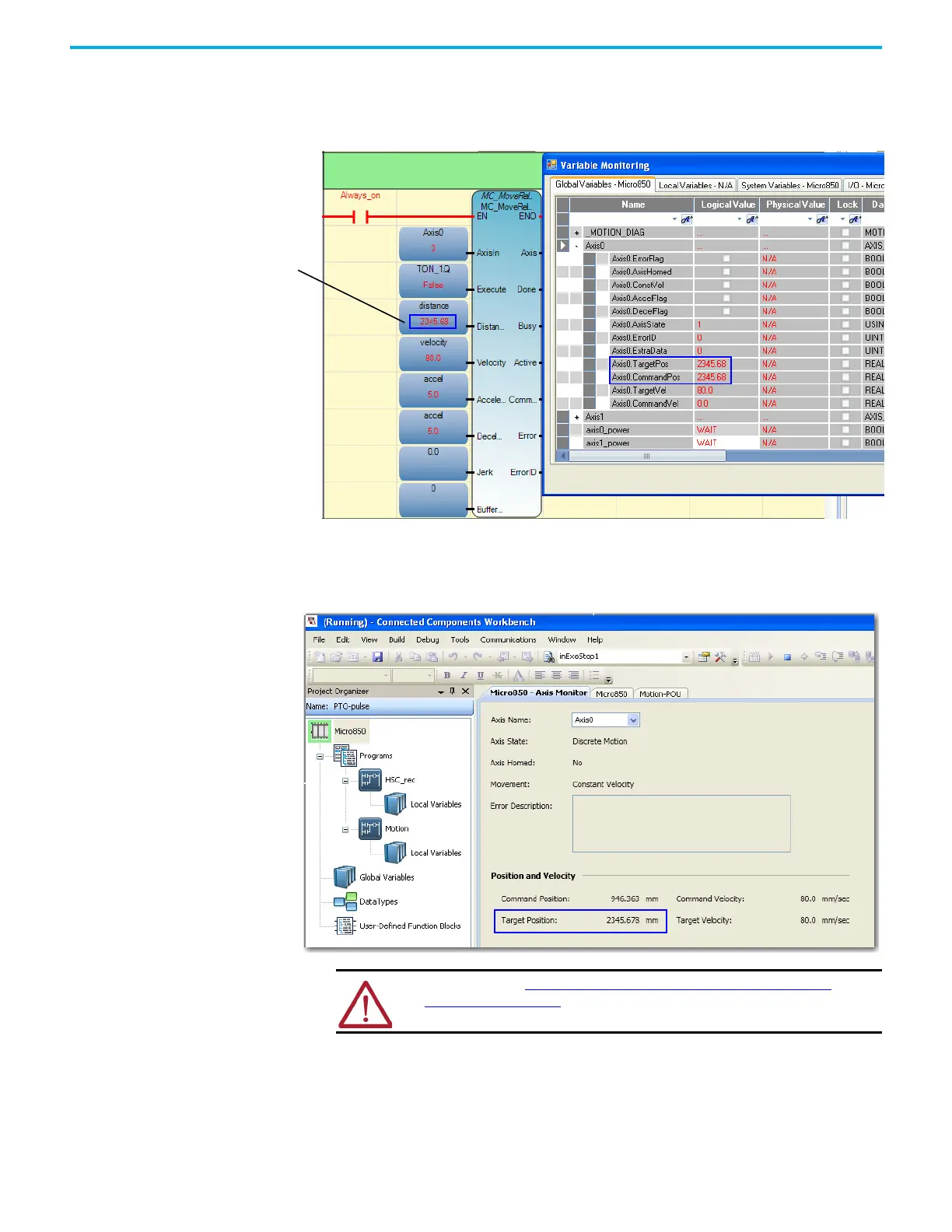

Variable Monitor Example
The Variable Monitor displays six significant digits with rounding, although the real data type
still contains seven significant digits.
Axis Monitor Example
The Axis Monitor displays seven significant digits with rounding.
In this example, the user has entered the Target
Position value of 2345.678.
This value is rounded up to six digits (2345.68) in
the Variable Monitoring screen.
ATTENTION: See Motion Axis Configuration in Connected Components
Workbench on page 180 to learn more about the different axis configuration
parameters.
