Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 19
Chapter 1 Hardware Overview
Micro870 Controllers
Status Indicator Description
(1)
(1) For detailed descriptions of these LED status indicators, see Troubleshooting on page 307.
Description Description
16 Input status 21 Fault status
17 Module status 22 Force status
18 Network status 23 Serial communications status
19 Power status 24 Output status
20 Run status
You can order the following replacement terminal blocks separately:
• 2080-RPL24RTB for 24-point base controllers
• 2080-RPL48RTB for 48-point base controllers
Controller Description
Description Description
1 Status indicators 9 Expansion I/O slot cover
2 Optional power supply slot 10 DIN rail mounting latch
3 Plug-in latch 11 Mode switch
4 Plug-in screw hole 12 Type B connector USB port
5 40-pin high-speed plug-in connector 13 RS-232/RS-485 non-isolated combo serial port
6 Removable I/O terminal block 14
RJ-45 Ethernet connector (with embedded green and
yellow LED indicators)
7 Right-side cover 15 Optional power supply
8 Mounting screw hole / mounting foot
Status Indicator Description
(1)
(1) For detailed descriptions of the different status LED indicators, see Troubleshooting on page 307.
Description Description
16 Input status 21 Fault status
17 Module Status 22 Force status
18 Network Status 23 Serial communications status
19 Power status 24 Output status
20 Run status
16
21
17
18
19
20
22
23
24
Status indicators
12 3 4 5 6 7 8
81061112131415 910

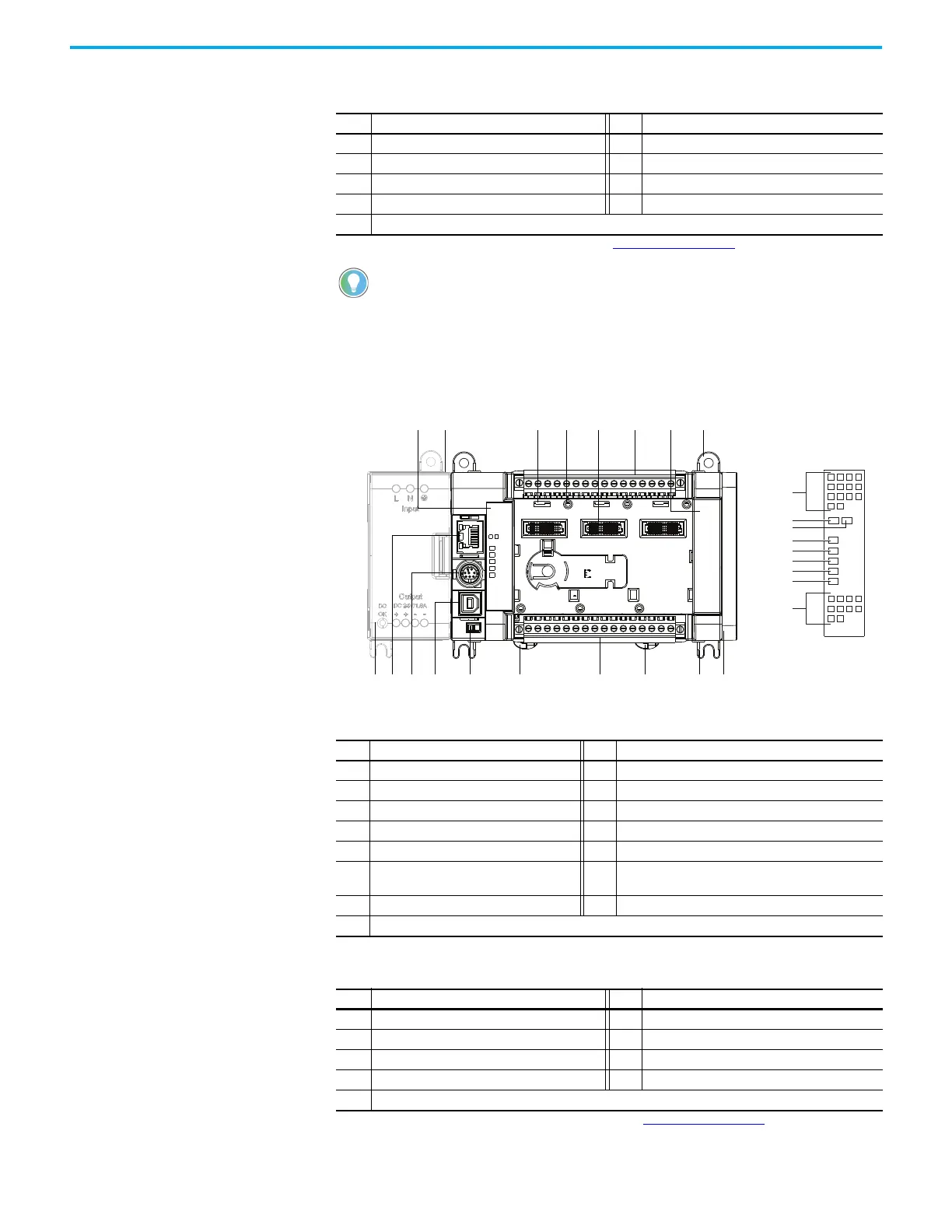

Micro870 24-point controllers and status indicators
Controller
