Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 71

Chapter 6 Micro870 Controller Distributed Network Protocol

Ethernet Layer Configuration

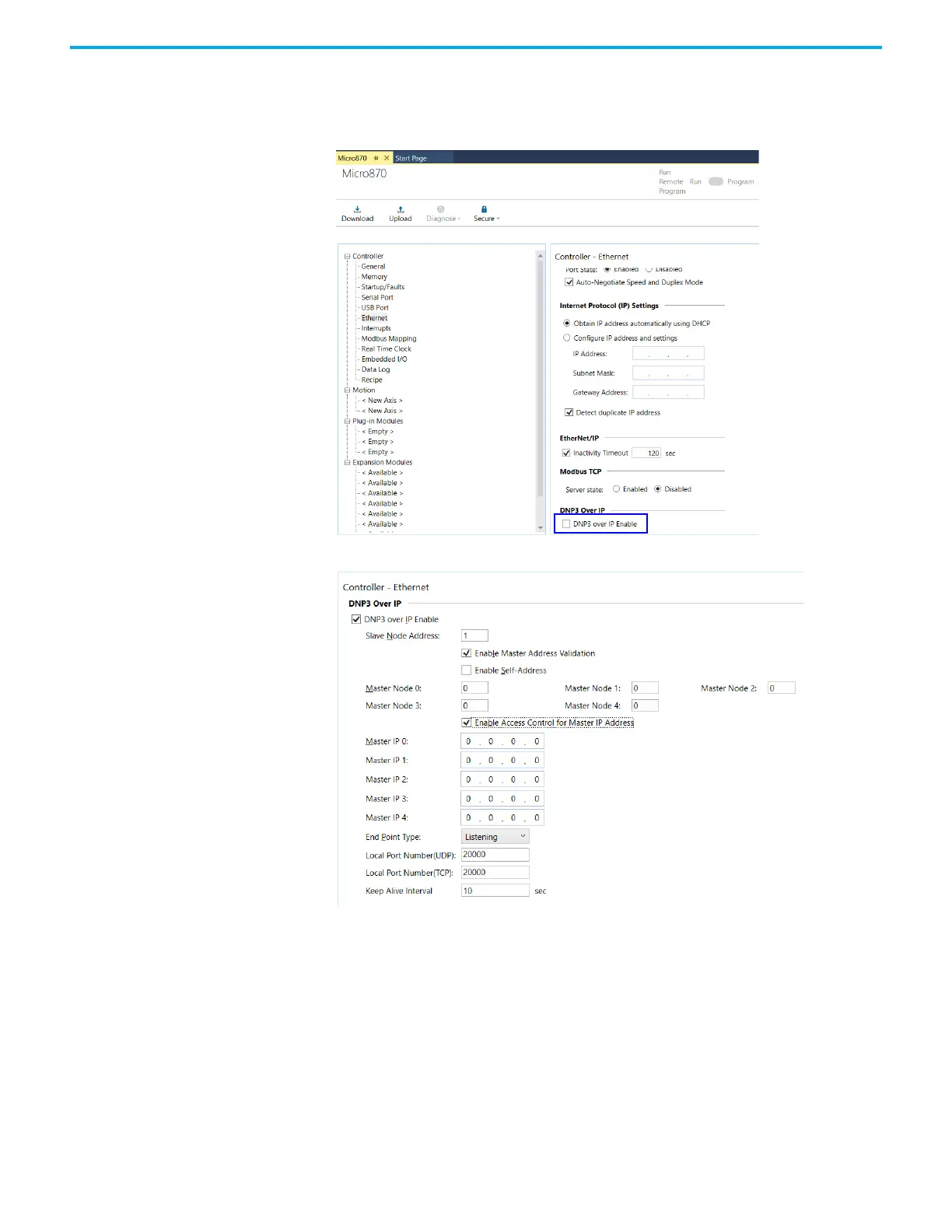

To enable DNP3 over IP protocol, select DNP3 over IP Enable in the Ethernet configuration

page.

Link Layer related configuration can also be done in the Ethernet configuration page.
