Appendix B Upgrade Kinetix 5300 Drive Firmware

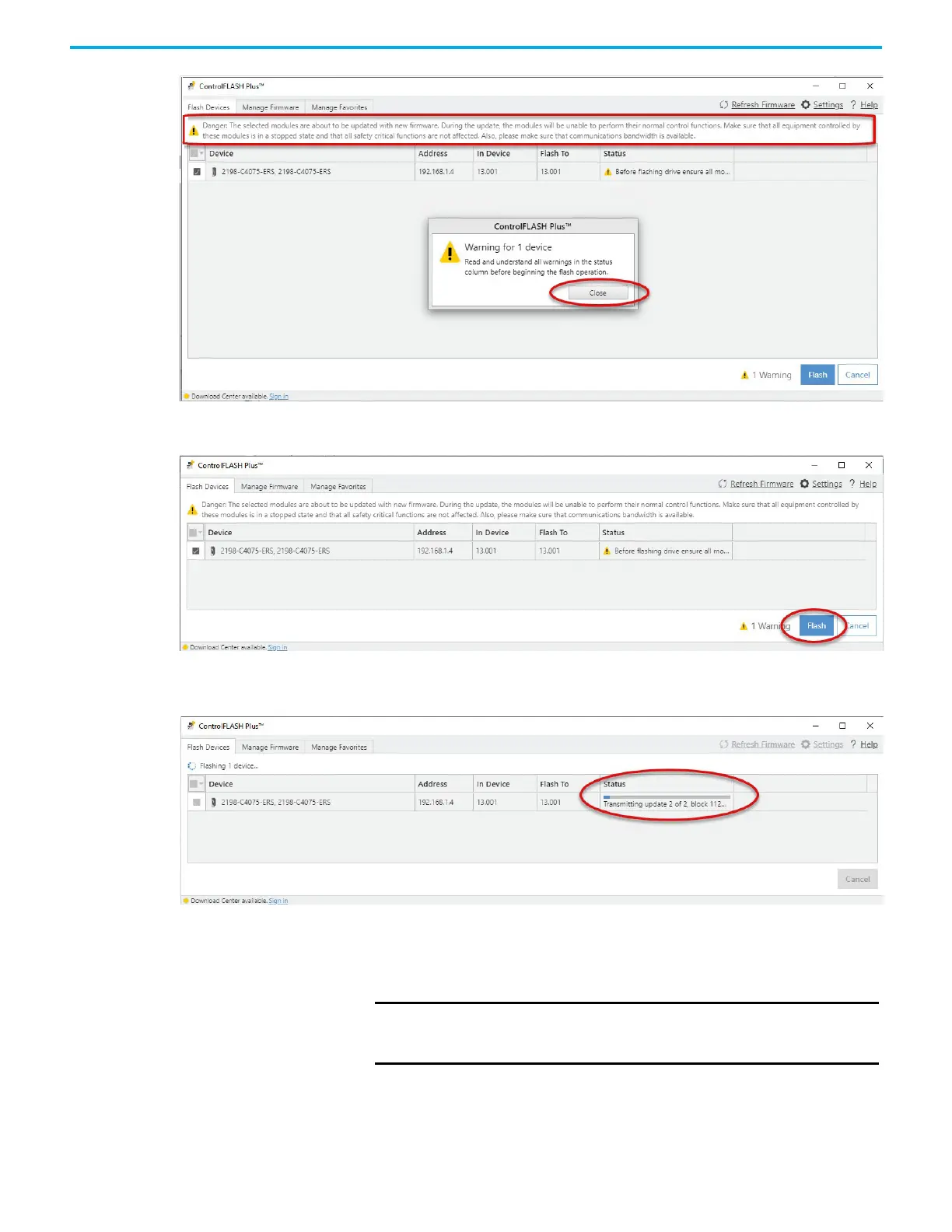

7. After acknowledging all warnings and confirming the desired revisions,
click Flash.
The Status bar appears to show the progress of the firmware update.
Also, the status display scrolls ‘Updating. Do Not Turn Off’, which
indicates that the upgrade is in progress.
After the upgrade information is sent to the drive, the drive resets and
performs diagnostic checking.
After the download, the drive applies the new firmware and reboots. This
can take several minutes.
After the drive reboots, ControlFlash Plus software indicates success or
failure of the update.
IMPORTANT Do not cycle power to the drive during this process. A power cycle
results in an unsuccessful firmware upgrade and an inoperable
module.
