Chapter 5 Connect the Kinetix 5300 Drive System
Single-phase Input Power
These examples illustrate grounded single-phase power that is wired to single-
phase Kinetix 5300 drives when phase-to-phase voltage is within drive
specifications. You can use any two phases for single phase input.

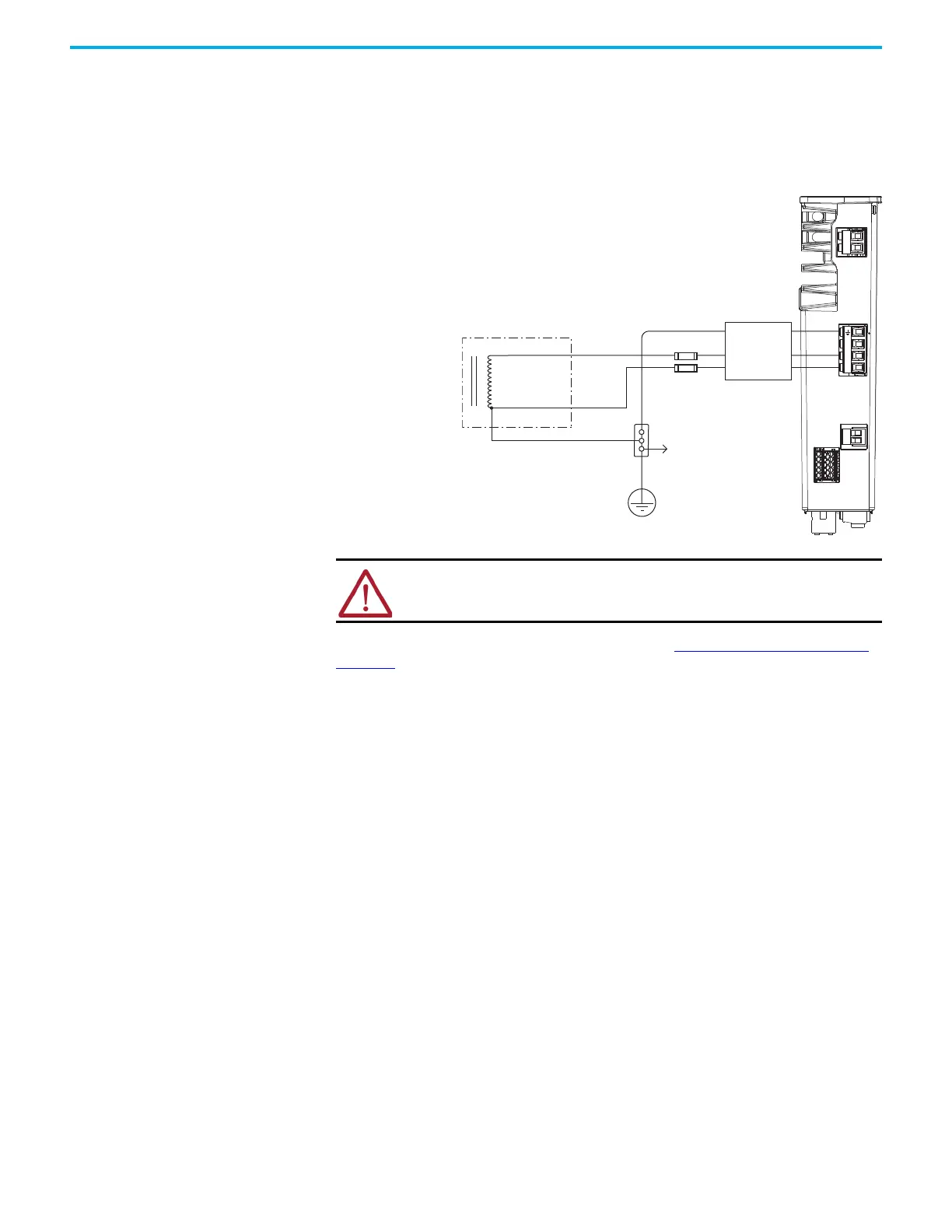

Figure 35 - Single-phase (120V or 230V) Grounded Power Configuration
For input power interconnect diagrams, refer to Power Wiring Examples on
page 170.
L2
L1 (Neutral)
L3
L2
L1
L3L2
L1
24+
DC+ SH
24-
SB+
SB-
S1
SC
S2
2
1
120V or 230V AC
Output
Transformer Secondary
Bonded Cabinet Ground
Ground Grid or
Power Distribution Ground
Kinetix 5300 Servo Drive
(top view)
Circuit
Protection
Connect to
Ground Stud
Three-phase
AC Line Filter
(can be required
for CE)
ATTENTION: Ungrounded systems do not reference each phase potential to a
power distribution ground. This can result in an unknown potential to earth
ground.
