Chapter 3 Mount the Kinetix 5300 Drive System
These hole patterns apply when all drives in the system are frame 1 or frame 2.
There are 50 mm between mounting holes (A-to-A and B-to-B).

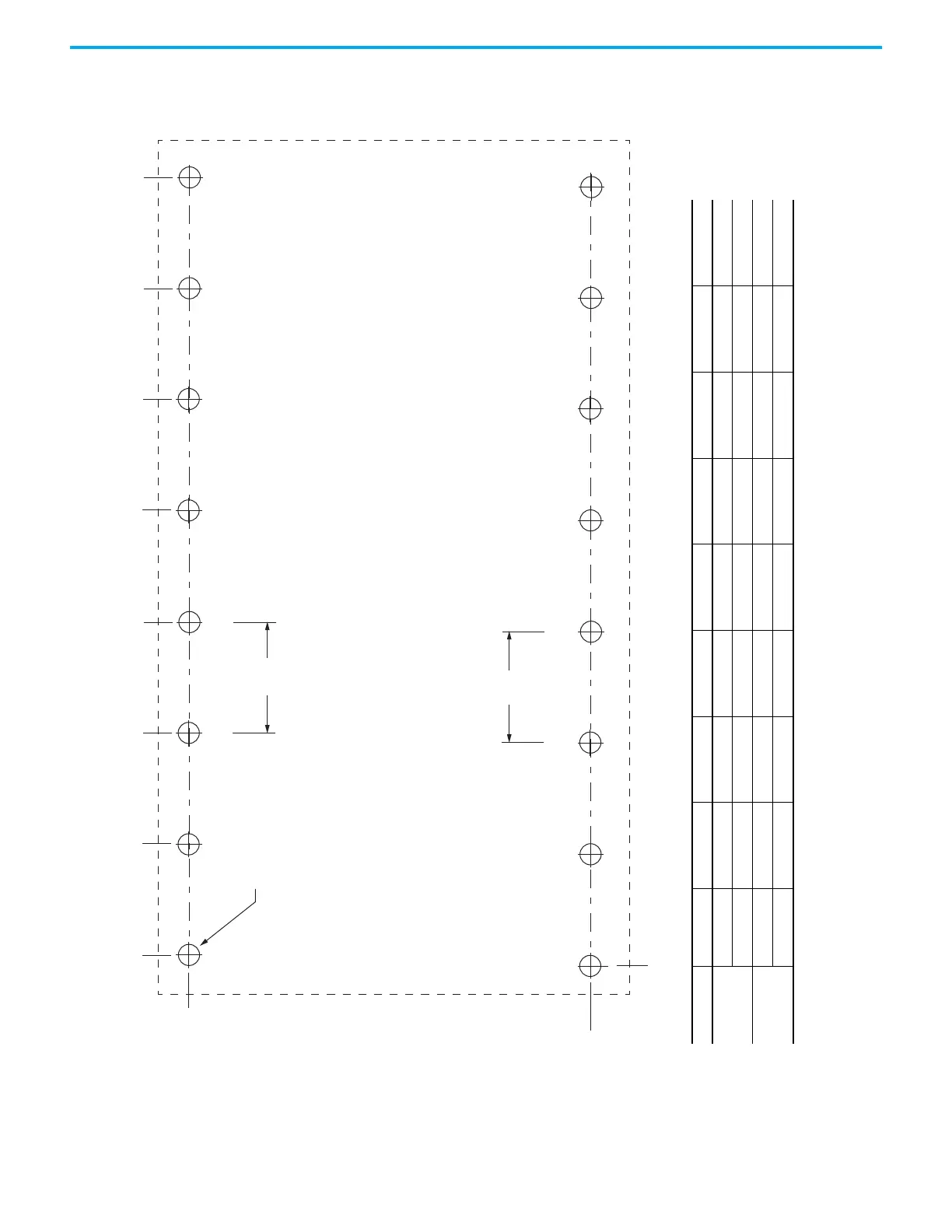

Figure 21 - Frame 1 and Frame 2 Hole Patterns
16x
ØM4 (#8-32)
Axis 1
Axis 3
Frame 1
193.68
Frame 2
243.84
Axis 4
Axis 5
Axis 6
Axis 7
Axis 8
Axis 2
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
0
0
50.0
50.0
Frame Size Dimension Axis 1 Axis 2 Axis 3 Axis 4 Axis 5 Axis 6 Axis 7 Axis 8
1
A 4.51 54.51 104.51 154.51 204.51 254.51 304.51 354.51
B 0 50.0 100.0 150.0 200.0 250.0 300.0 350.0
2
A 5.00 60.0 115.0 170.0 225.0 280.0 335.0 390.0
B 0 55.0 110.0 165.0 220.0 275.0 330.0 385.0
Hole spacing is measured in millimeters and not
converted to inches to avoid errors due to rounding.
To Next Page
