Publication 2711C-QS001F-EN-P - November 2010 19
Review Sample Application Chapter 1
Alarm Banner

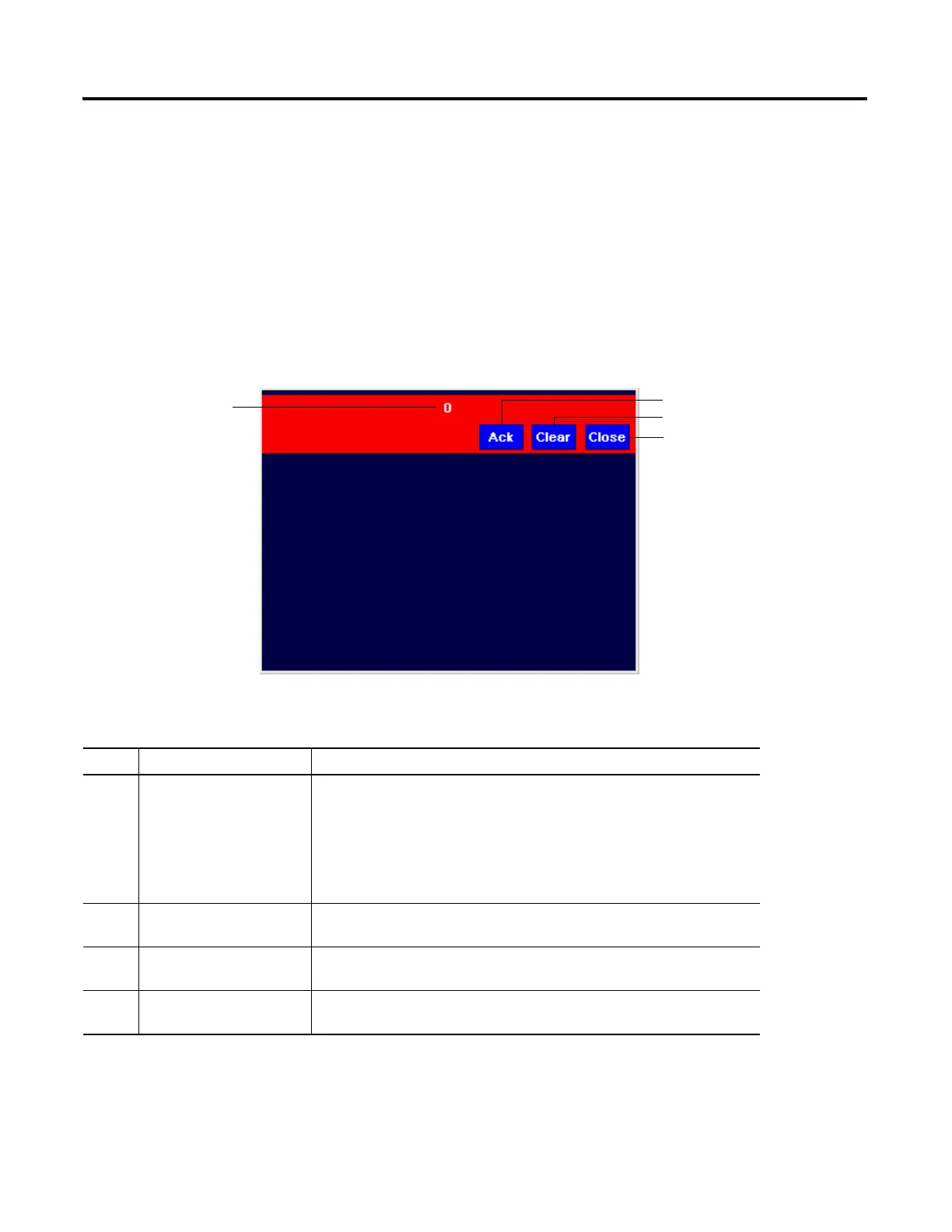

The alarm banner is a global display that pops up over the Motor Status or Motor Speed screen when an
alarm is triggered. The alarm banner lets you:
• read a message associated with a triggered alarm.
• clear the alarm banner from the screen.
• acknowledge an alarm and clear the banner.
• close the banner.
Alarm Banner Objects
# This object Performs this function
1 Message display Displays this message when the motor speed rises to 850 rpm or higher.
MOTOR AT IDEAL OPERATING SPEED!
Displays this message when the motor speed rises to 900 rpm or higher.
MOTOR SPEED NEAR THRESHOLD!
2 Ack button Acknowledges the alarm message when the button is pressed and closes the
alarm banner.
3 Clear button Clears the alarm from the alarm banner without acknowledging the alarm and
closes the banner.
4 Close button Closes the alarm banner when pressed without performing any action on the
alarm.
