48 Publication 2711C-QS001F-EN-P - November 2010
Chapter 5 Create Tags

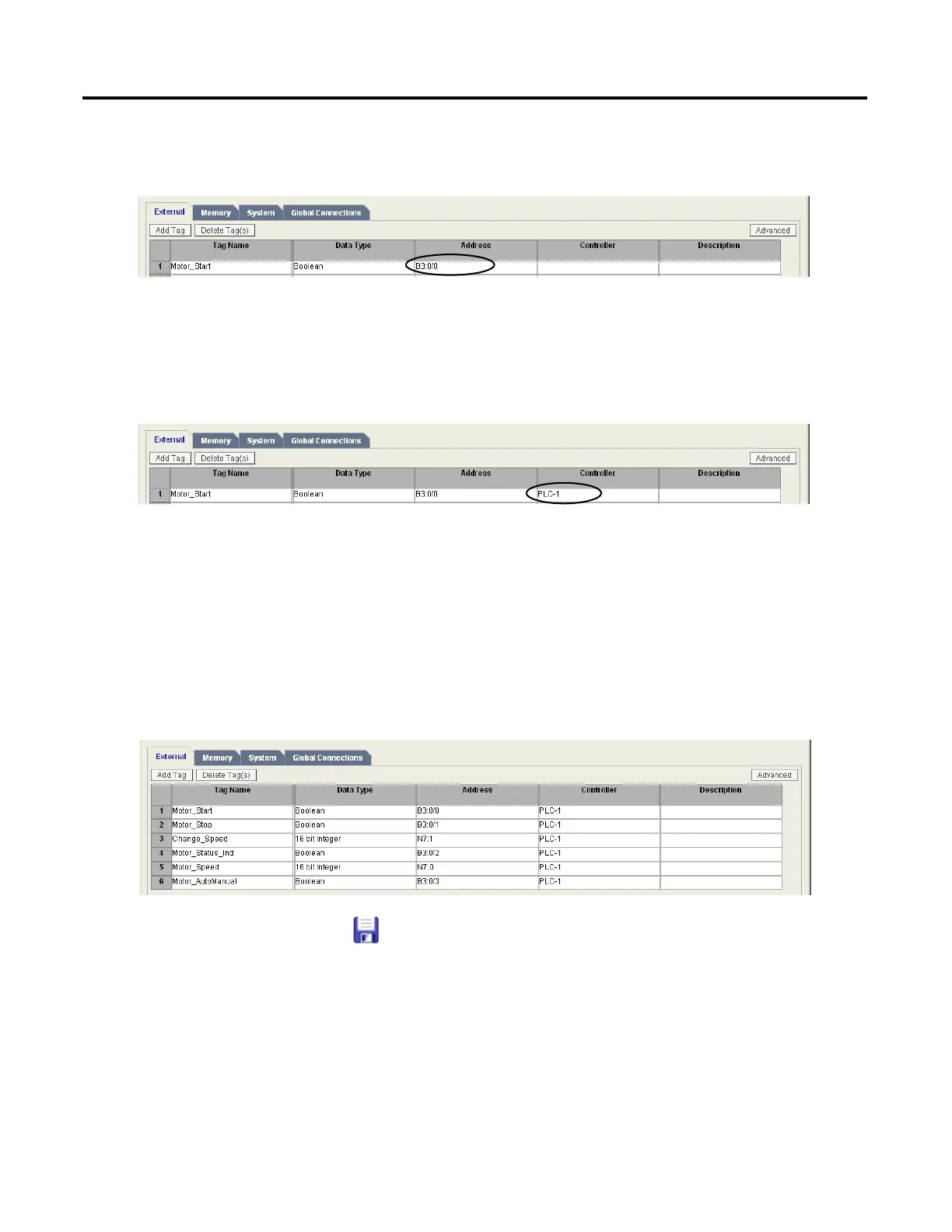

4. Click in the Address field
and type B3:0/0.
5. Click in the Controller field
and select PLC-1.
This is the controller name
defined on the
Communication tab.
6. Optionally, enter the tag
description.
7. Repeat steps 1 through 6 to
add the other five tags.
Some fields populate with
data from the previous tag.
When done, the Tags view
must look like this.
8. Click the Save icon on the
application toolbar to save
the application.
