60 Publication 2711C-QS001F-EN-P - November 2010
Chapter 6 Create the Motor Status Screen
4. Select row 3, hold down the
Shift key, and select row 4.
5. Click the Delete button.

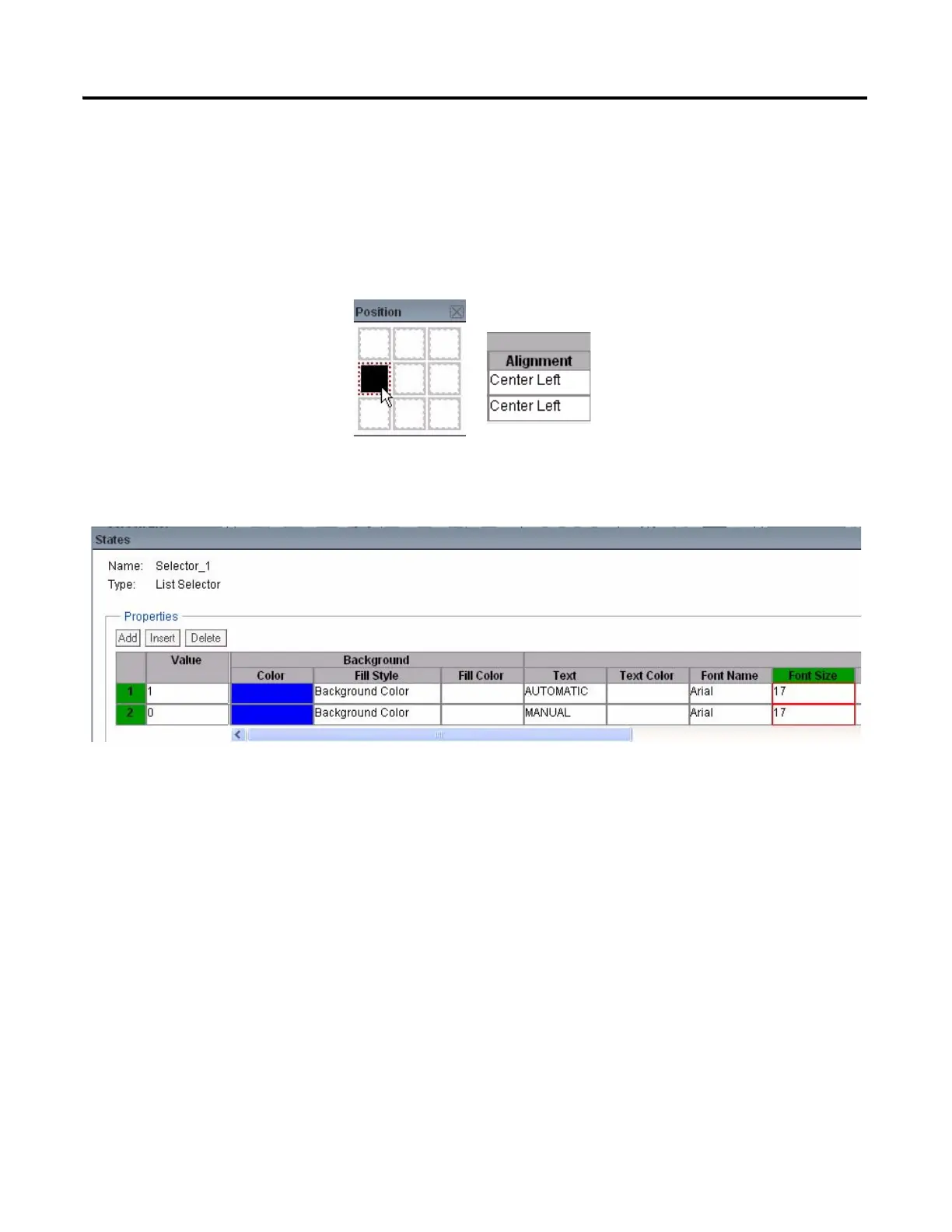

6. Edit state 1 (row 1).
a. Replace the Item1 text
with AUTOMATIC.
b. Set the Font Size to 17.
c. Click the ... button in the
Alignment field, and
select Center Left.
Scroll to the right to see all
the fields.
7. Edit state 2 (row 2).
a. Type 0 in the Value field.
b. Replace the Item2 text
with MANUAL.
c. Set the Font Size to 17.
d. Select Center Left in the
Alignment field.
8. Click row 1 to make this the
displayed state.
9. Click OK to close the editor.
