1769-L32E, 1769-L35E CompactLogix Controller 21
Publication
1769-IN020D-EN-P - October 2008

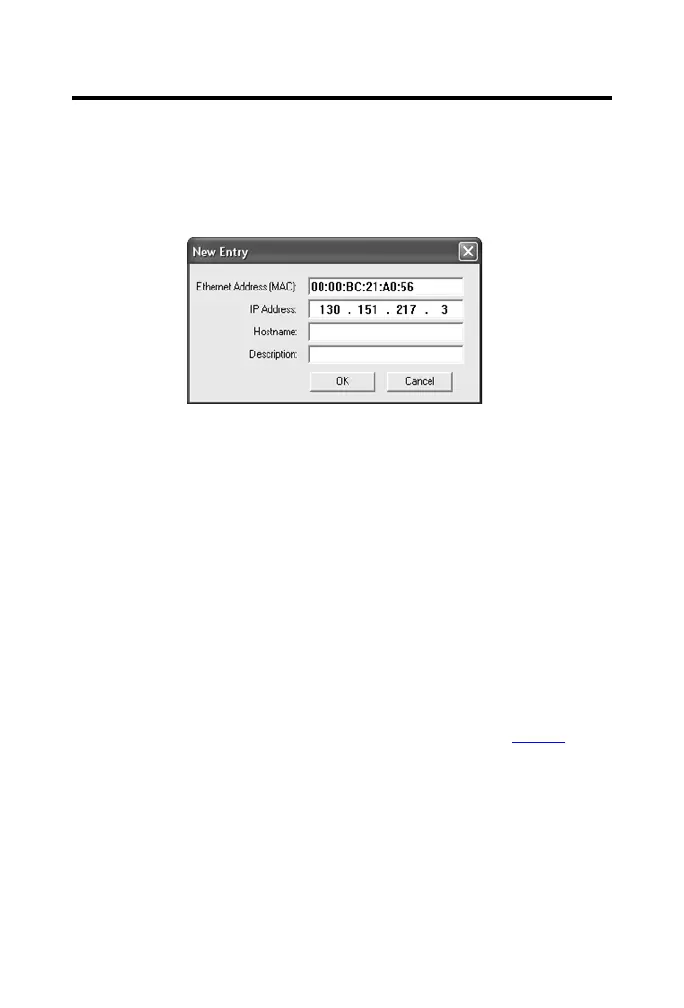

The New Entry dialog displays the device’s Ethernet Address (MAC).
6. Enter the IP address.
7. Click OK.
8. To permanently assign this configuration to the device, highlight the
device and click Disable BOOTP/DHCP.
When power is recycled, the device uses the configuration you
assigned and does not issue a BOOTP request.
Use RSLinx Software to Set the IP Address
You can use RSLinx software, version 2.41 or later, to set the IP address.
1. Make sure the controller that uses the IP address is installed and
running.
2. Connect to the controller via the serial connection (see page 15
).
3. Start RSLinx software.
The RSWho dialog opens.
